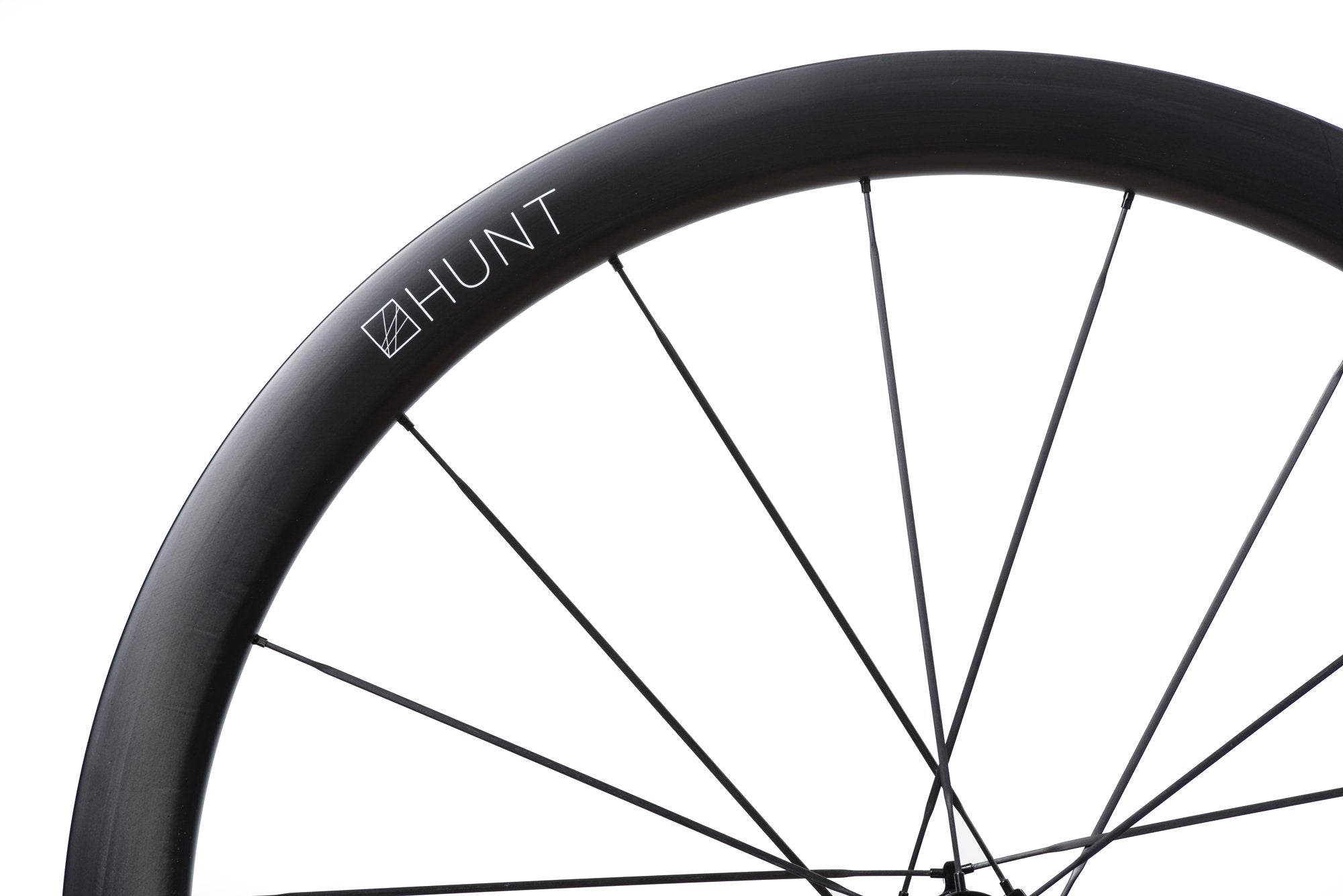

<h1>Aerodynamicist Rim Profile</h1><i>As learned from our Limitless Research project & consistent wind tunnel time across the past 2 years, we know that an optimum aerodynamic benefit for a drop-bar bike is yielded from widening rim profiles. The reasons for this is that it allows for a far more 'blunted' spoke bed area, which (depending on which part of the wheel you're looking at) is both the leading and trailing edge.</i>
<h1>Aerodynamicist Rim Profile</h1><i>The benefits of blunted spoke bed areas revolve primarily around the predictable airflow, with the wind ‘hugging’ the rim as it passes across it (as opposed to older style V-shaped rims, which would create turbulence in the form of stalls). The wider profile ensures the flow stays attached to the surface as long as possible before the point of separation, which is key as yaw angles increase..</i>
<h1>TaperLock Hubs</h1><i>Carbon spoke optimised TaperLock SPRINT hubs add strength and enhance power transfer meaning all your force pushes you forwards. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps add extra stiffness.</i>

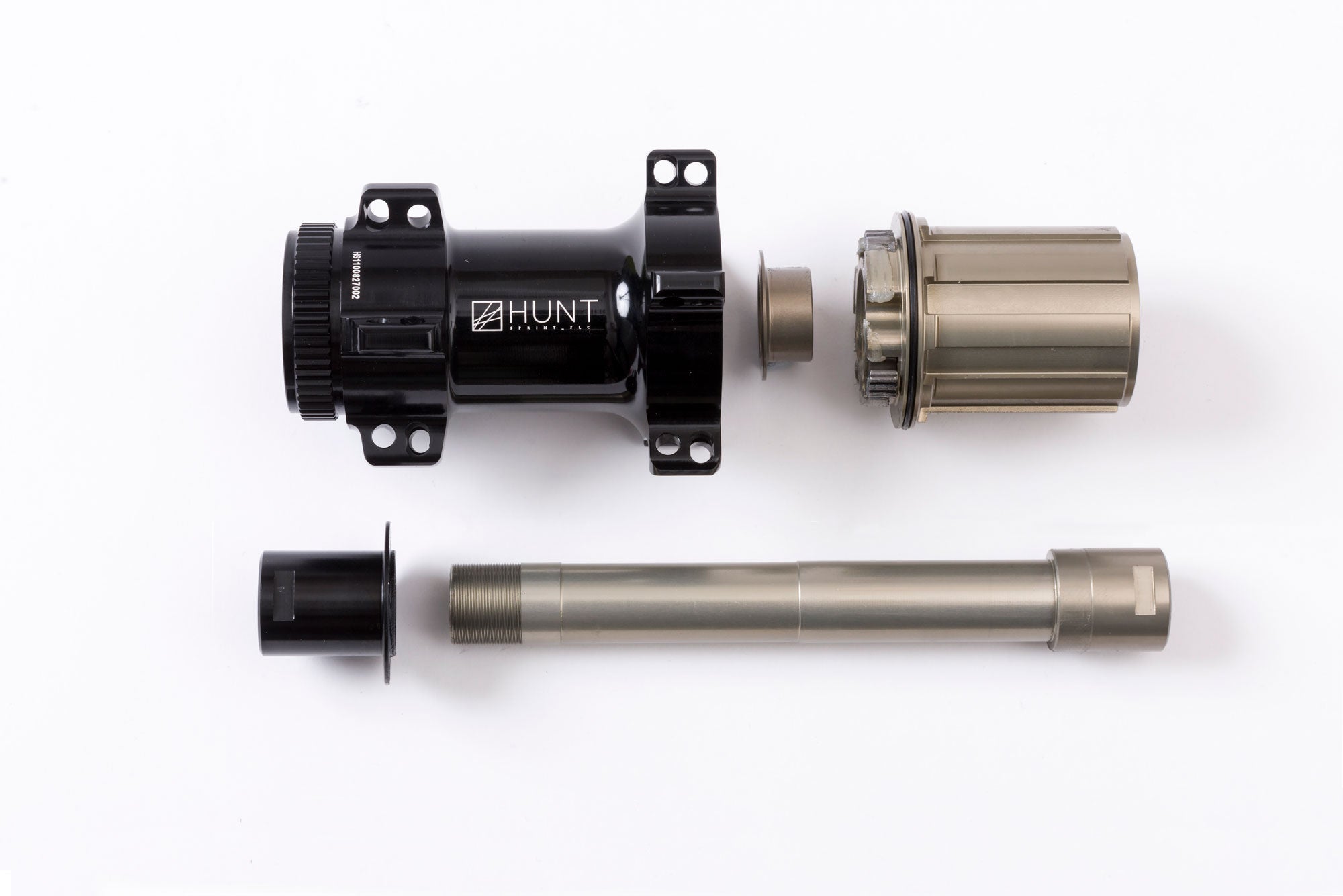

<h1>Freehub Body</h1><i>Featuring a 3 multi-point pawls with 3 teeth each and a 48 tooth ratchet ring results in an impressively low 7.5 degree engagement angle and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which engage quicker. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>

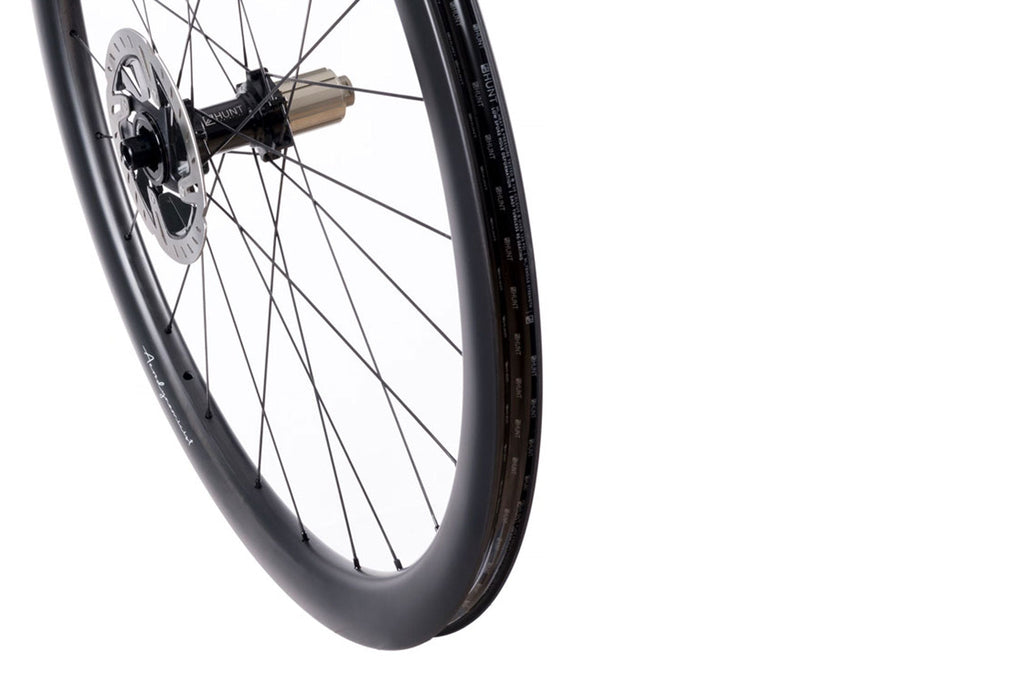

<h1>Tyre Width Optimisation</h1><i> Designed around a 20mm internal rim width optimised for a 25c tyre (but will of course work without compromise with both 23c and 28c tyres). They feature a hooked tyre retention design and are both fully ETRTO-compatible and tubeless-ready.</i>

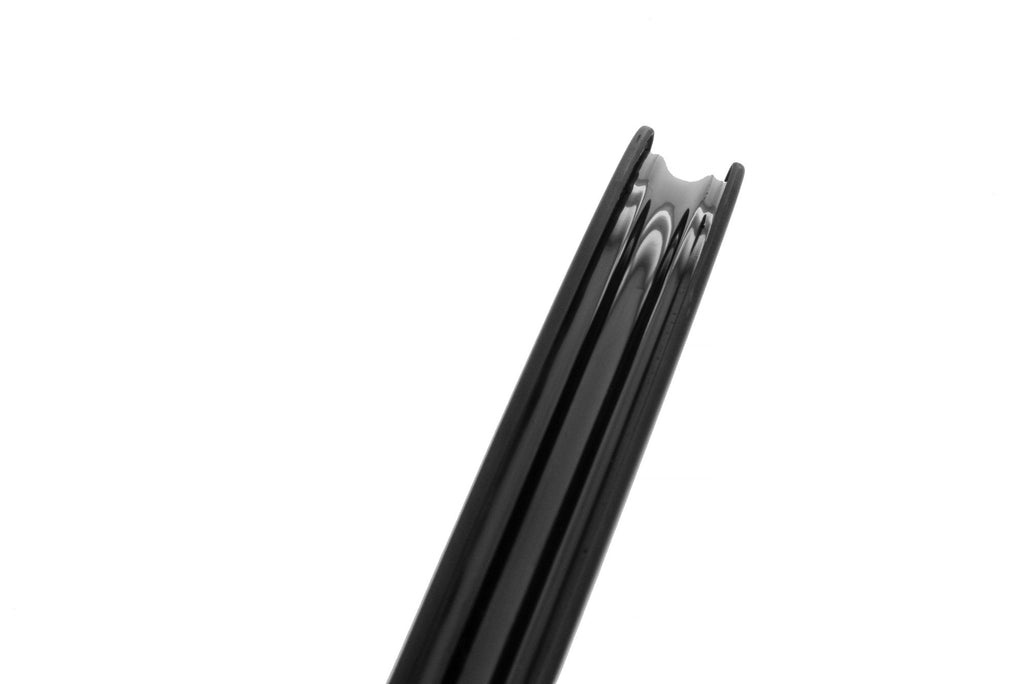

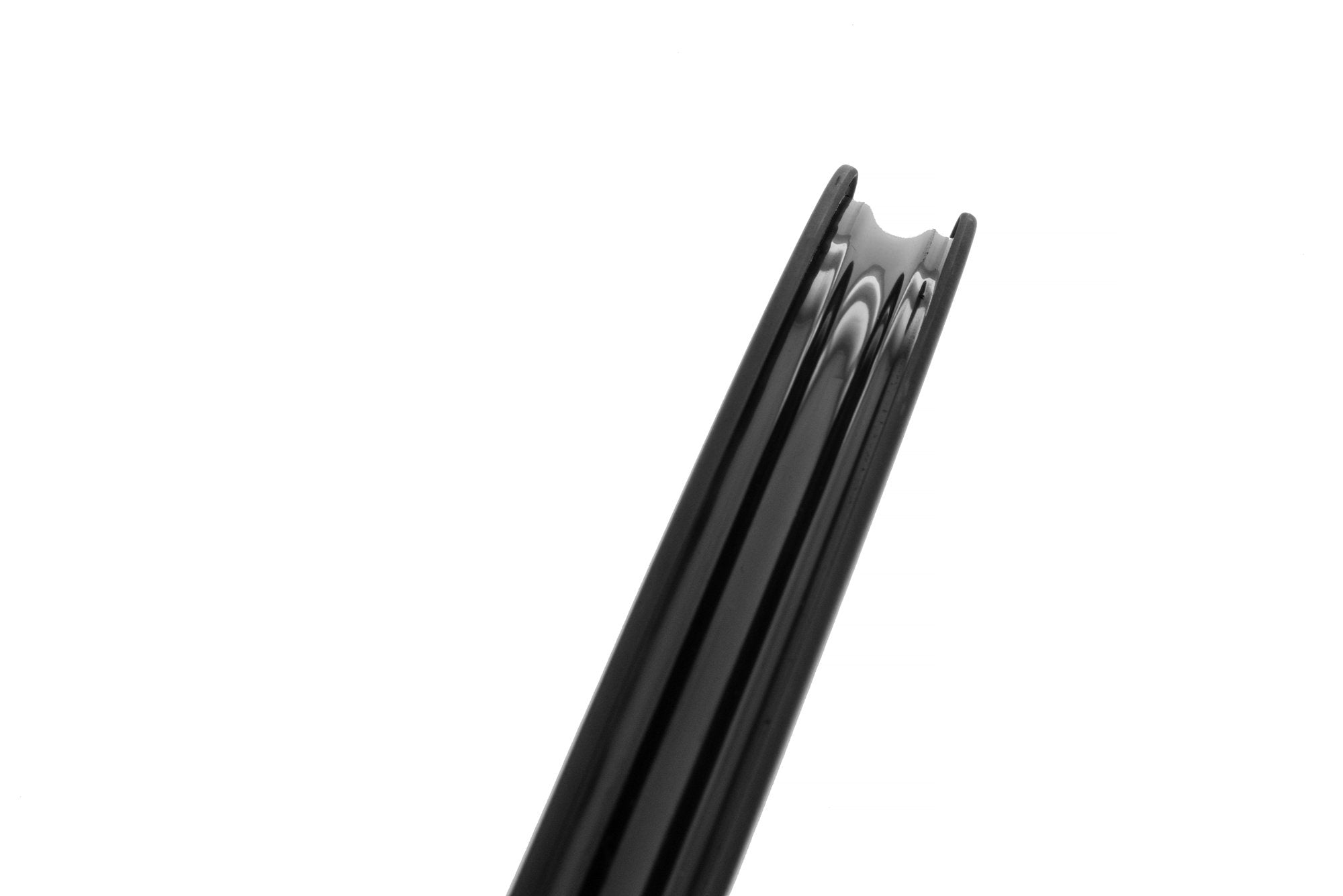

<h1>Rim Bed</h1><i>H_LOCK is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>

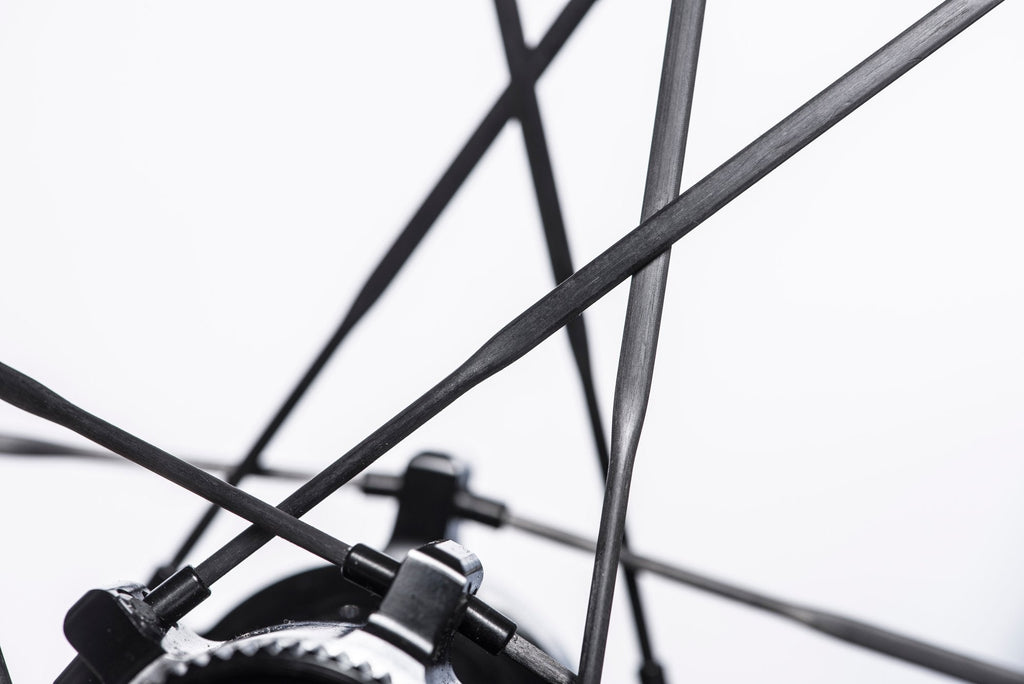

<h1>UD Carbon Spokes</h1><i>Incredibly strong (achieving over 450kgf per spoke) TaperLock UD carbon spokes offering 30% increase in stiffness against steel ones. Only 2.7g per spoke. Due to the TaperLock technology, these spokes can be trued easily using a spoke key from within the rim bed.</i>
<h1>Stiffness-to-Weight</h1><i>With significant increases in lateral stiffness, they have been engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels. Coming in at just 1352g but with significant increases in lateral responsiveness, disc wheels have never been so fast.</i>
<h1>Tyres</h1><i>At HUNT we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow you the same option, but of course these tubeless-ready wheels are also designed to work perfectly inner tubes, just use tubes in tubeless ready tyres.</i>
<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard, you just need to let us know what you require by filling in the simple form on the confirmation page after checkout. Please note these wheels will not work with the older 15mm front road TA standard.</i>

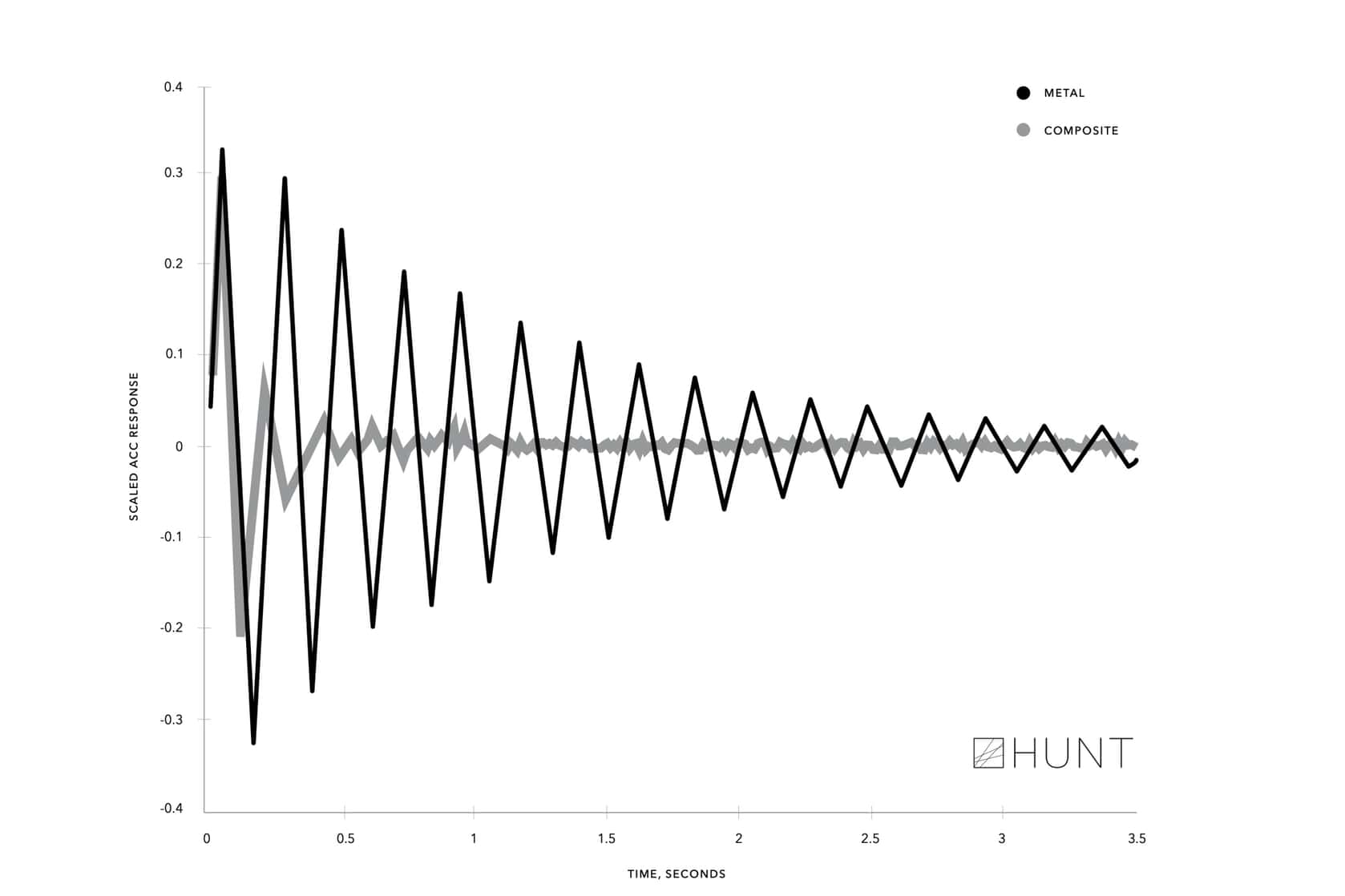

<h1>Hunt Carbon Spoke Graph</h1><i>For high frequency vibration, carbon spokes offer much greater damping characteristics to that of an equivalent steel spoke</i>
35% off
<h1>Aerodynamicist Rim Profile</h1><i>As learned from our Limitless Research project & consistent wind tunnel time across the past 2 years, we know that an optimum aerodynamic benefit for a drop-bar bike is yielded from widening rim profiles. The reasons for this is that it allows for a far more 'blunted' spoke bed area, which (depending on which part of the wheel you're looking at) is both the leading and trailing edge.</i>
<h1>Aerodynamicist Rim Profile</h1><i>The benefits of blunted spoke bed areas revolve primarily around the predictable airflow, with the wind ‘hugging’ the rim as it passes across it (as opposed to older style V-shaped rims, which would create turbulence in the form of stalls). The wider profile ensures the flow stays attached to the surface as long as possible before the point of separation, which is key as yaw angles increase..</i>
<h1>TaperLock Hubs</h1><i>Carbon spoke optimised TaperLock SPRINT hubs add strength and enhance power transfer meaning all your force pushes you forwards. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps add extra stiffness.</i>
<h1>Freehub Body</h1><i>Featuring a 3 multi-point pawls with 3 teeth each and a 48 tooth ratchet ring results in an impressively low 7.5 degree engagement angle and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which engage quicker. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>Tyre Width Optimisation</h1><i> Designed around a 20mm internal rim width optimised for a 25c tyre (but will of course work without compromise with both 23c and 28c tyres). They feature a hooked tyre retention design and are both fully ETRTO-compatible and tubeless-ready.</i>
<h1>Rim Bed</h1><i>H_LOCK is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
<h1>UD Carbon Spokes</h1><i>Incredibly strong (achieving over 450kgf per spoke) TaperLock UD carbon spokes offering 30% increase in stiffness against steel ones. Only 2.7g per spoke. Due to the TaperLock technology, these spokes can be trued easily using a spoke key from within the rim bed.</i>
<h1>Stiffness-to-Weight</h1><i>With significant increases in lateral stiffness, they have been engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels. Coming in at just 1352g but with significant increases in lateral responsiveness, disc wheels have never been so fast.</i>
<h1>Tyres</h1><i>At HUNT we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow you the same option, but of course these tubeless-ready wheels are also designed to work perfectly inner tubes, just use tubes in tubeless ready tyres.</i>
<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard, you just need to let us know what you require by filling in the simple form on the confirmation page after checkout. Please note these wheels will not work with the older 15mm front road TA standard.</i>
<h1>Hunt Carbon Spoke Graph</h1><i>For high frequency vibration, carbon spokes offer much greater damping characteristics to that of an equivalent steel spoke</i>

RE:NEW HUNT 44 UD Carbon Spoke Disc Wheelset

After payment & checkout, we will ask for your freehub and axle information via an automatically generated form.

Which freehub do I need?
£969 £1,489.00
35% off
Finance options available at checkout

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

More details Right

The supreme stiffness-to-weight ratio of carbon spokes, in a serviceable package. The final word in road/all-road disc-brake performance.

44 DEEP | 29 WIDE EXT | 20 WIDE INT | 1352G

The Purpose

Introducing the 44 UD Carbon Spoke Disc, utilising our proven TaperLock carbon spoke technology, resulting in fully serviceable carbon-spoked wheels that can be trued like any other. With significant increases in lateral stiffness (see testing info below), they have been engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels.

HUNT TaperLock UD Carbon Spoke Logo

6% more laterally responsive than identical steel spoked wheel, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim. Please see graph in the "read more" section.

Aerodynamicist Logo

Aerodynamicist 29mm-wide rim, exclusively engineered and wind tunnel tested by HUNT's in-house engineering team. featuring a hooked & ETRTO-compliant tubeless-ready rim, designed for full clincher & tubeless tyre compatibility.

SLC Hubs

All-new Sprint SLC hubs add strength and enhance power transfer, meaning more of your power pushing you forwards. The hub shell is a cold-forged 7000 series alloy, offering a greater strength-to-weight ratio than extruded 6000 series alloys. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps ensure a secure fitment.

WIND TUNNEL RESULTS

<44 aud graph Read More

Using an innovative spoke-seating method, the  44 UD Carbon Spoke Disc wheelset offers carbon spokes that are held purely mechanically, with no bonding required. We call this TaperLock, and it allows for carbon spokes that can be trued and maintained just like a normal steel spoke.

The TaperLock UD Carbon Spokes are incredibly strong, achieving over 450 kgf (kilograms force per spoke) maximum tensile strength, compared to leading steel spokes which conventionally reach around 300 kgf.

For HUNT, aerodynamics and stiffness have to be considered as component parts of a more holistic understanding of performance componentry. That's why we always design with serviceability and usability in mind, because there's no point having a fast wheel you can't use with your favourite tyre, or that you can't easily maintain.

FULL WIND TUNNEL RESULTS

Read Less

The Purpose

Introducing the 44 UD Carbon Spoke Disc, utilising our proven TaperLock carbon spoke technology, resulting in fully serviceable carbon-spoked wheels that can be trued like any other. With significant increases in lateral stiffness (see testing info below), they have been engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels.

HUNT TaperLock UD Carbon Spoke Logo

6% more laterally responsive than identical steel spoked wheel, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim. Please see graph in the "read more" section.

Aerodynamicist Logo

Aerodynamicist 29mm-wide rim, exclusively engineered and wind tunnel tested by HUNT's in-house engineering team, featuring a hooked & ETRTO-compliant tubeless-ready rim, designed for full clincher & tubeless tyre compatibility.

SLC Hubs

All-new Sprint SLC hubs add strength and enhance power transfer, meaning more of your power pushing you forwards. The hub shell is a cold-forged 7000 series alloy, offering a greater strength-to-weight ratio than extruded 6000 series alloys. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps ensure a secure fitment.

WIND TUNNEL RESULTS

44 aud graph Read More

Using an innovative spoke-seating method, the  44 UD Carbon Spoke Disc wheelset offers carbon spokes that are held purely mechanically, with no bonding required. We call this TaperLock, and it allows for carbon spokes that can be trued and maintained just like a normal steel spoke.

The TaperLock UD Carbon Spokes are incredibly strong, achieving over 450 kgf (kilograms force per spoke) maximum tensile strength, compared to leading steel spokes which conventionally reach around 300 kgf.

For HUNT, aerodynamics and stiffness have to be considered as component parts of a more holistic understanding of performance componentry. That's why we always design with serviceability and usability in mind, because there's no point having a fast wheel you can't use with your favourite tyre, or that you can't easily maintain.

FULL WIND TUNNEL RESULTS

Read Less

Key Features

The ultimate performance of carbon spokes, in a usable package

    • Rims | Aerodynamicist disc-specific rim profiles, designed from the ground up. Toray T700/T800 carbon-fibre with a stronger ratio of T800 (T40) fibres to achieve greater strength-to-weight ratio. Unidirectional sidewalls with 3K weave bed and spoke areas. Tubeless-ready for lower weight, rolling resistance and better puncture protection.
    • Tyres | 20mm rim bed optimised for superior aerodynamic performance with a 25-28c tubeless tyre, but also very capable with a 23c. Tubeless-Ready.
    • Hubs | New Sprint SLC straight-pull hubs, designed for carbon spokes. 15mm diameter 7075-T6 body and axle for supreme strength-to-weight. Circular dropout interface steps for added security in fitment. 3x treble-tooth pawls, resulting in rapid 7.5˚ engagement. Steel spline inserts to protect the cassette body.
    • Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
    • See the full specs here
    • Weight | 1352g

Please note: If you require a 6 bolt adaptor you can purchase separately here

The Experts' View

Velonews HUNT 44 UD Review Logo

More Tech

  • Rims

    • Aerodynamicist profile, disc-specific & aerodynamically optimised for 25-28c tyres
    • Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
    • 29mm outer and 20mm internal, ideal for 23-50mm tyre widths
    • 44mm depth
    • H_LOCK bead-seat up-kicks, for easy and secure tubeless installation
    • Matt black base finished with matt white contrasting graphics.

  • Spokes

    • UD carbon fibre spokes with incredibly high strength, stiffness and weighing only 2.7g per spoke
    • 18 front (2 cross on rotor side, radial on drive side) and 20 rear (2 cross both sides).

  • Nipples

    • TaperLock nipples secure spoke head to the hub
    • Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing
    • Internal nipple for truing
    • Black anodized finish.

  • Tyres Info

    • Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres. 100 psi is more than enough for any rider on road. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
    • Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
    • Please do not exceed the maximum pressure stated on your tyre.
    • Suitable for tyres from 23mm up to 50mm wide.
    • Suitable tubeless road, gravel and CX tyres are available from a huge range of companies.

  • Axle Size

    • These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

  • Front Hub

    • TaperLock spoke interface
    • All existing road/CX disc front axle standards are available including:
      • Quick Release (skewers included)
      • 12mm Bolt Thru
    • All axle adapters are also available separately.
    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
    • Polished anodized black finish with laser graphics.
    • Hunt SPRINT SL Disc straight-pull super-light alloy.

  • Rear Hub

    • TaperLock spoke interface
    • All existing road/CX disc rear axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12x142 Bolt Thru
      • 12x135 Bolt Thru (uncommon)
      • 10x135 Bolt Thru (uncommon)
    • All axle adapters are also available separately.
    • 7075-T6 heat-treated aluminium alloy freehub body.
    • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
    • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
    • All freehub standards accounted for, including:
      • Shimano/SRAM
      • Campagnolo
      • SRAM XD Driver
      • SRAM XDR Driver
    • Hunt SPRINT Disc straight-pull super-light alloy.
    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
    • Polished anodized black finish with laser graphics.

  • Bearings

    • High-grade Japanese EZO bearings.
    • Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.
    • Incredibly fast rolling.

    • Warranty, HUNT Rolling Road Tests & Weight Limits

    A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

    All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 109kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 90Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

    60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not.
