The Purpose _
![](http://www.huntbikewheels.com/cdn/shop/files/30cad-on-mason-weight_d7ddd782-8550-454d-8294-23c654a3538f_{width}x.jpg?v=1704888406)
The Purpose _
Full Specs _

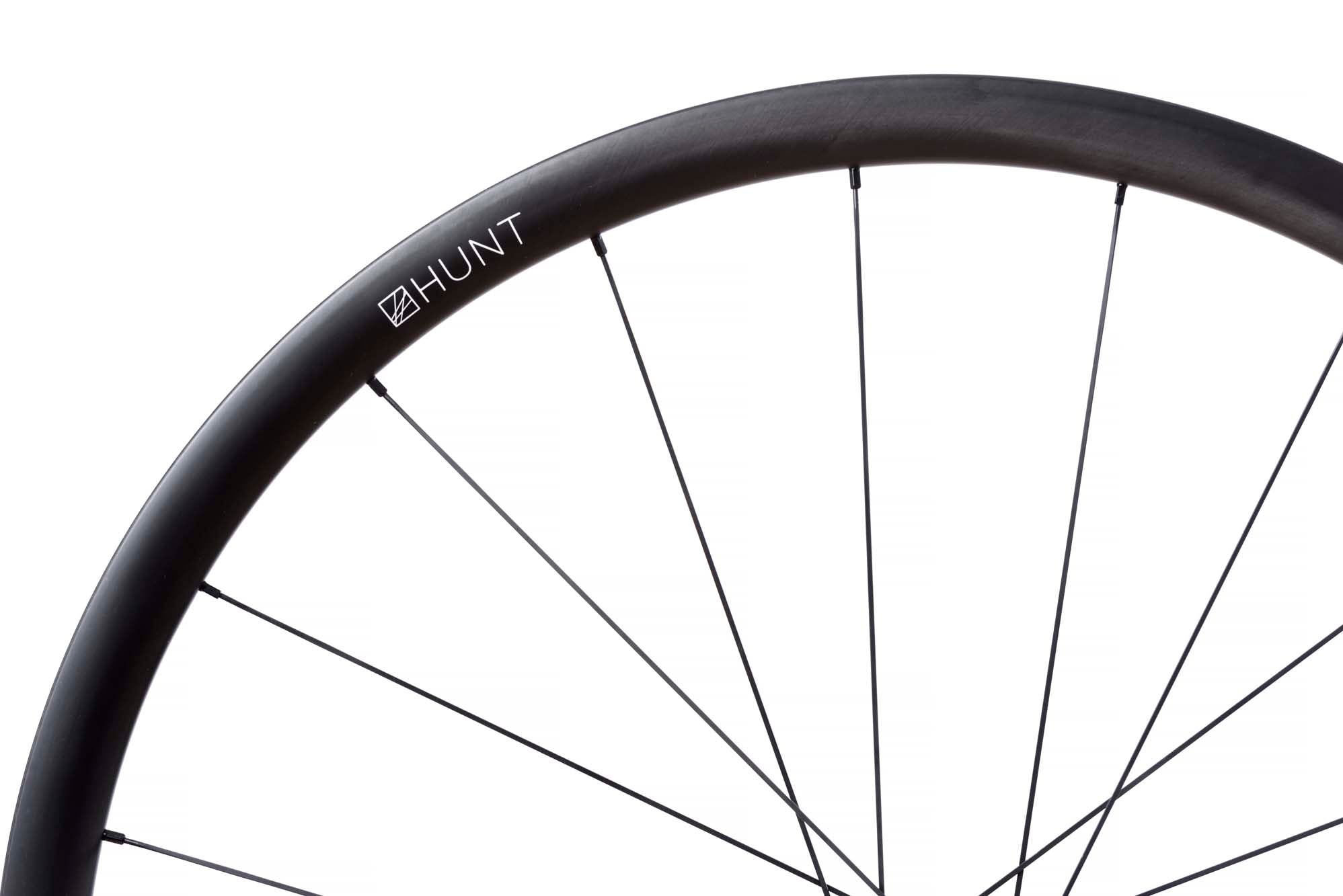

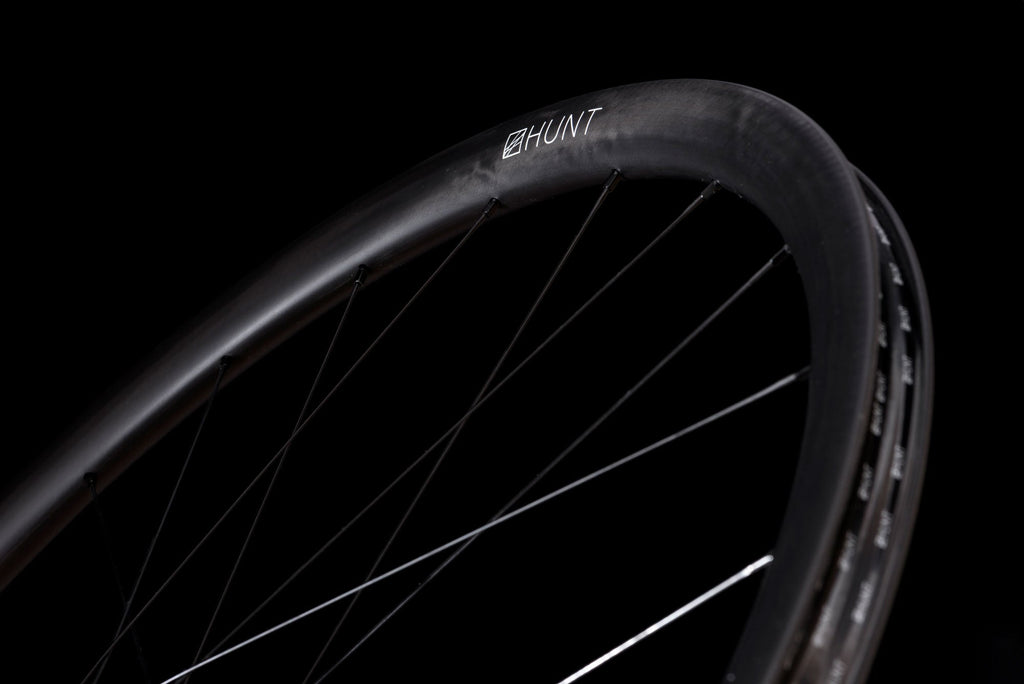

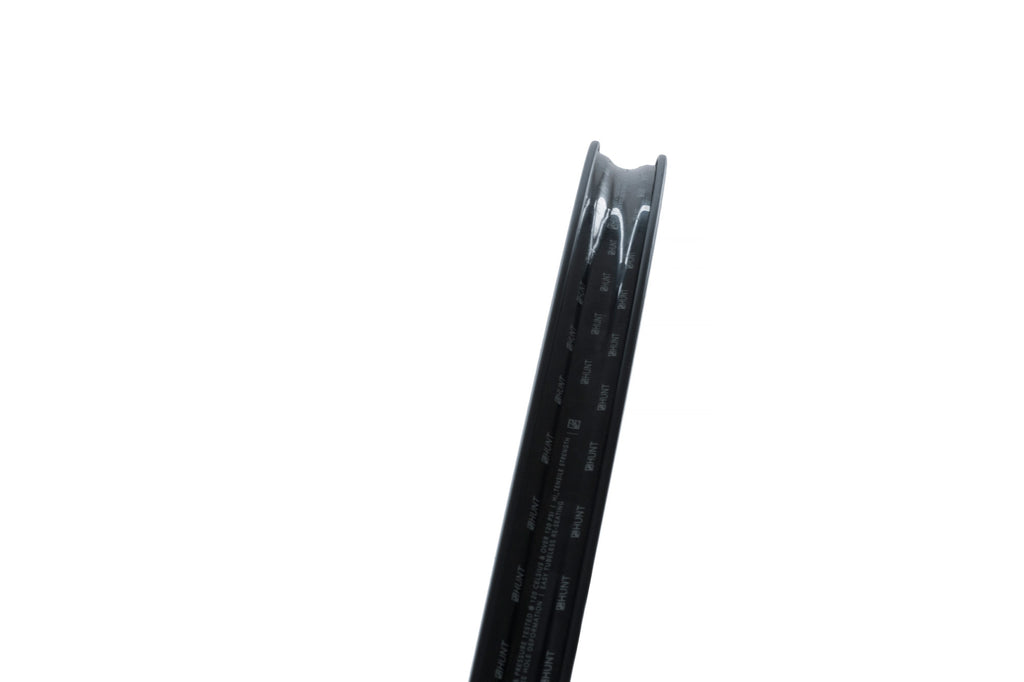

RimsHooked tubeless-ready rim profile. Full carbon fiber construction with re-enforced spoke holes. 30mm external and 22m internal width. 30mm depth UD finish with matte white contrasting graphics.
Spokes24 front and 24 rear laced 2 cross. J-bend cold drawn. Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden. Front Triple butted 2.0-1.5-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement). Rear Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement). Black stainless treatment.
NipplesAlloy square body for external adjustment and square head for easy internal adjustment/tensioning. 16mm length with washer for a strong connection to the spoke added durability. 14 gauge. Black anodized finish.

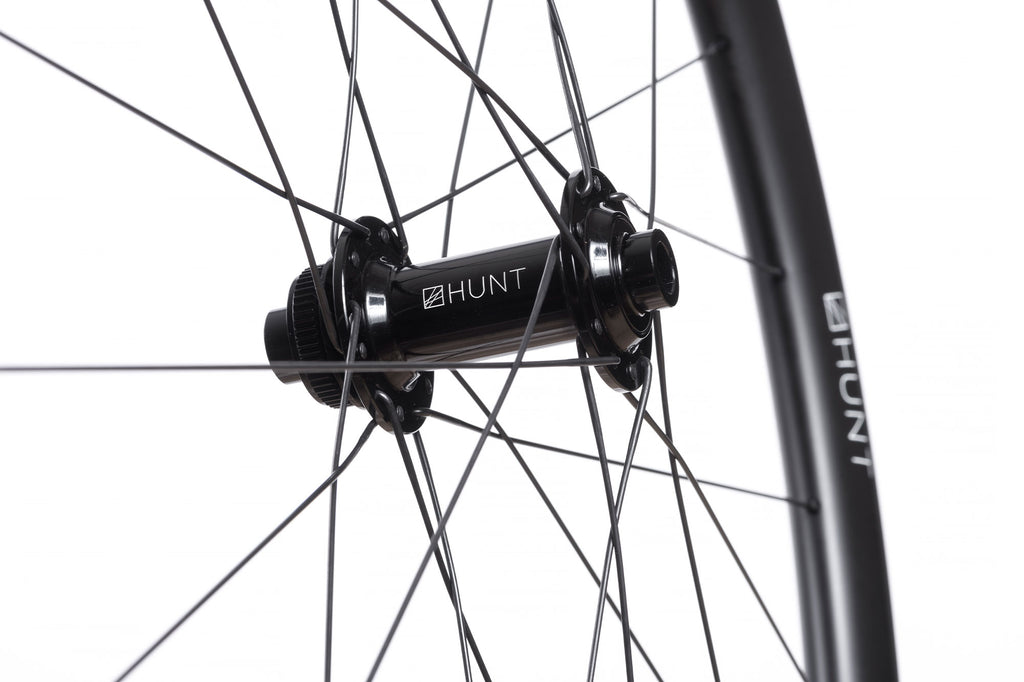

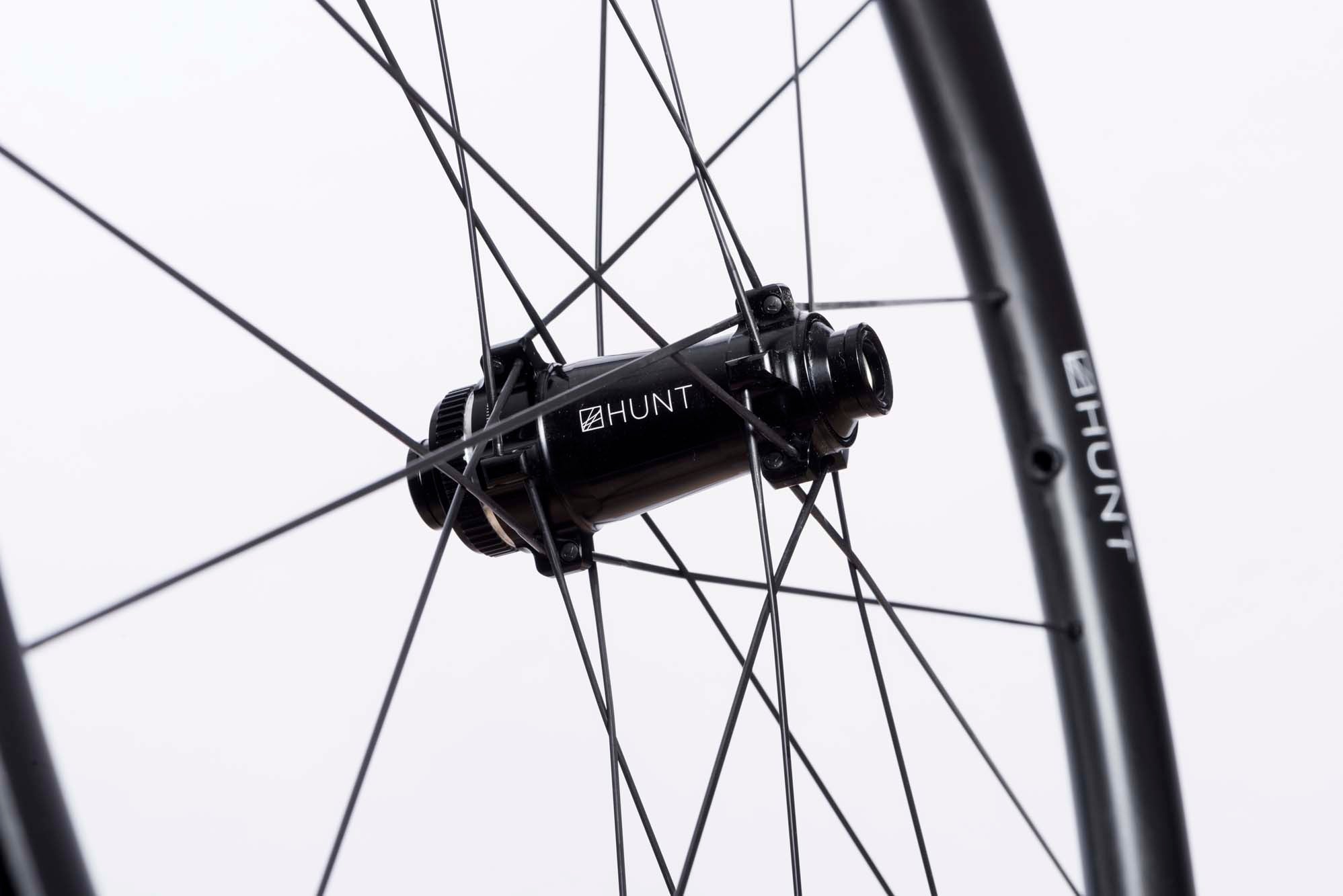

Front HubForged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Polished anodized black finish with laser graphics. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

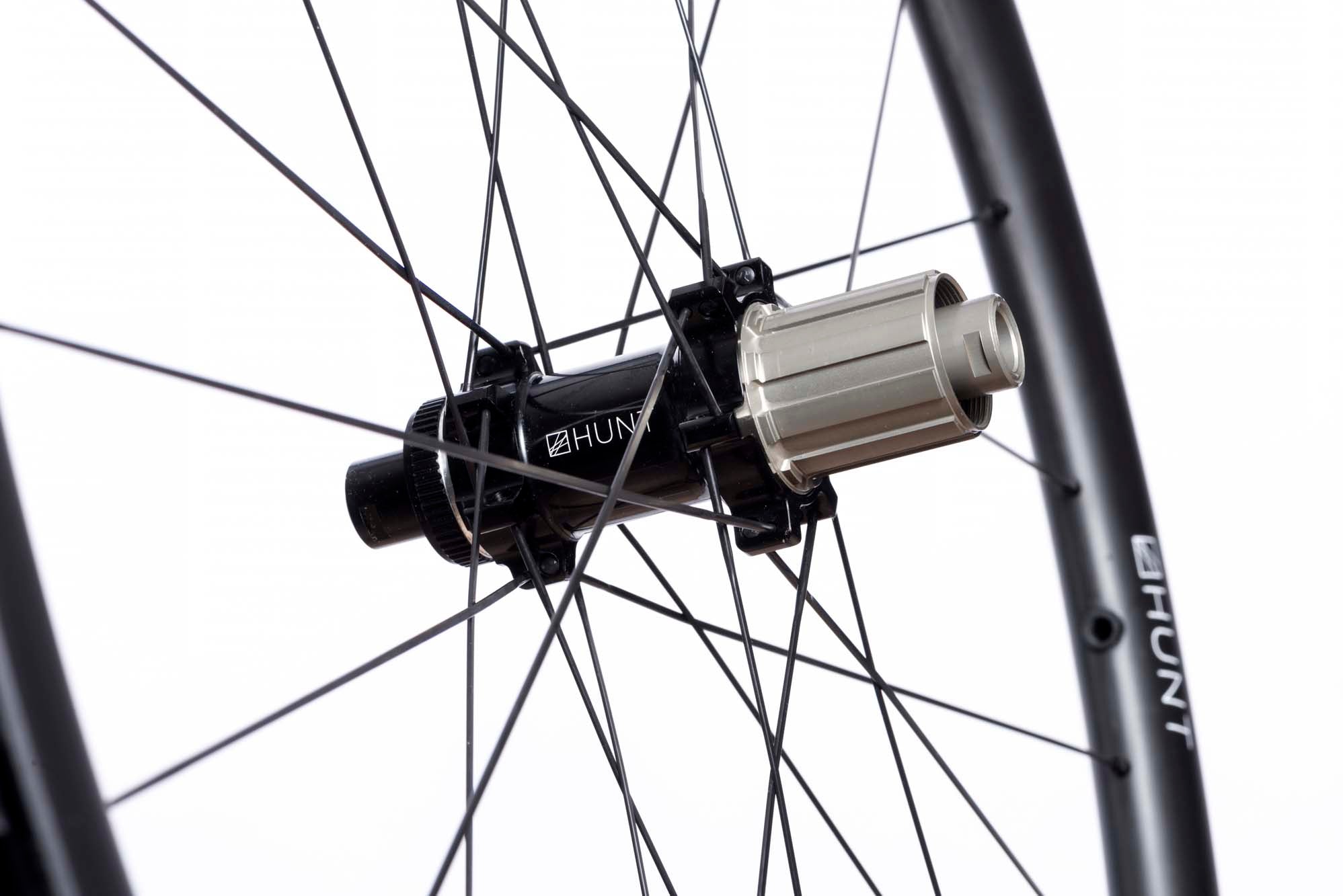

Rear HubHUNT H_Ratchet 36T SGL. H_CERAMIK freehub body re-enforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance. Single 36T Ratchet Ring equals 10° engagement. Forged and CNC'd 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Polished anodized black finish with laser graphics. All freehub standards accounted for. Please note: if you require a 6 bolt adaptor you can purchase separately here.
BearingsSuper smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather. Sealed cartridge replaceable units. Dual full-contact seals.
Tyres InfoFor the 30 Carbon Disc, HUNT recommends a 25-35mm tire for best performance, tire widths between 25mm and 50mm are also safe to use. Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. Tubeless-ready for lower weight and rolling resistance. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle SizesThese wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.
What's in the box _
![](http://www.huntbikewheels.com/cdn/shop/files/In-the-Box-Carbon-Spoke_8546a794-4458-493e-926f-0245a4324ad5_{width}x.jpg?v=1704887411)
WARRANTY_
We've got your back
ABOUT HUNT _
HUNT Bike Wheels are a team of talented, passionate riders with a wealth of industry experience, and set out to bring you the latest, most practical, forward-thinking technology in all things round.
Our mission is to serve devoted riders with the highest performing products, backed by best-in-class rider support.
All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
