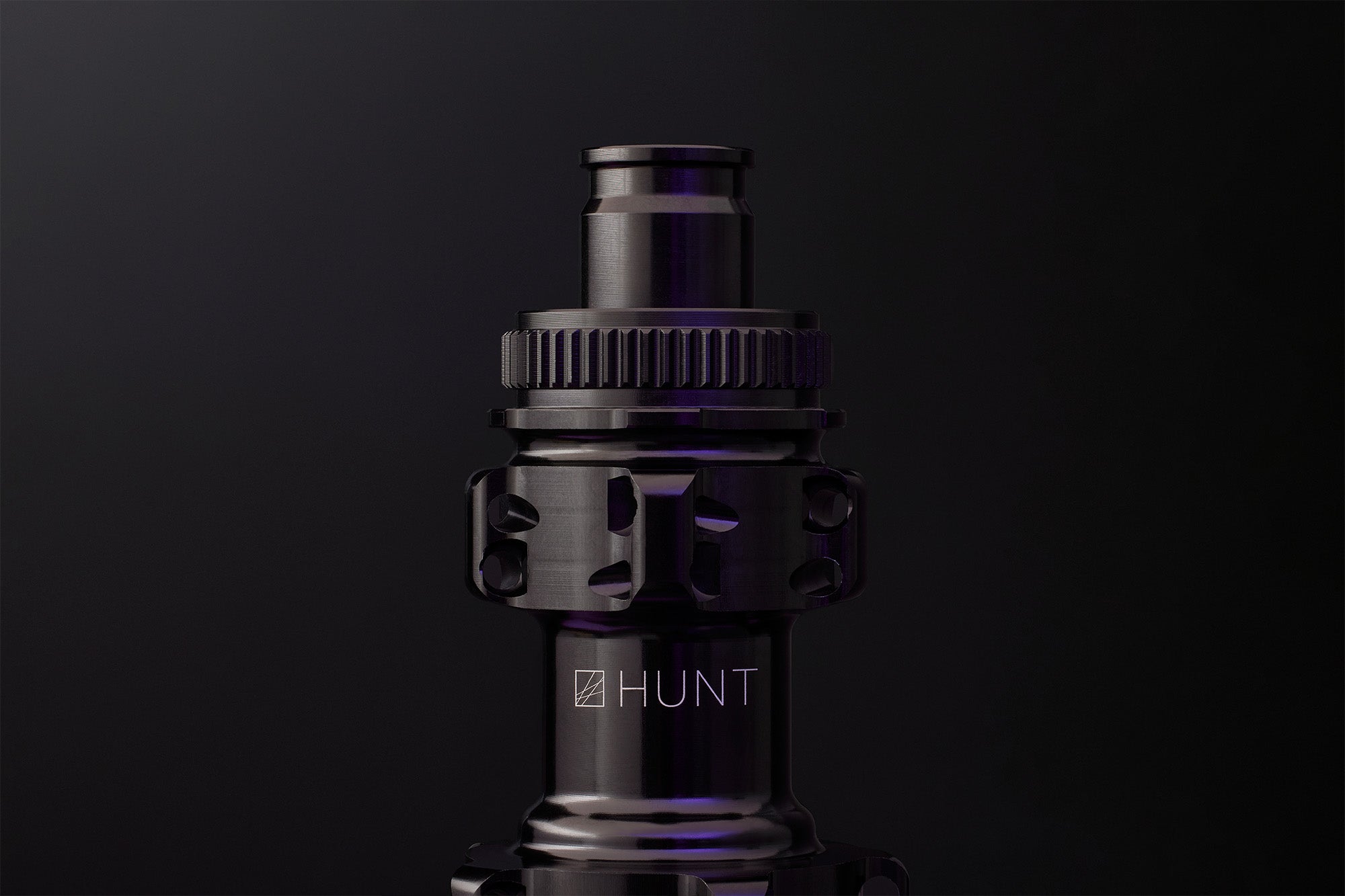

<h1>ADAPTABILITY</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard, you just need to let us know what you require by filling in the simple form on the confirmation page after checkout. Please note these wheels will not work with the older 15mm front road TA standard.</i>
<h1>LOW SYSTEM WEIGHT - FRONT</h1><i>Innovation in rim layup technology, UD carbon spokes and hubs delivers class-leading low weight. Please note on scale images weighed without valves and tape. +/- 3% variation on wheelset weights can occur.</i>
<h1>LOW SYSTEM WEIGHT - REAR</h1><i>Innovation in rim layup technology, UD carbon spokes and ratchet hubs delivers class-leading low weight. Please note on scale images weighed without valves and tape. +/- 3% variation on wheelset weights can occur.</i>
NEW
<h1>LIMITLESS RIM PROFILE</h1><i>HUNT-patented Limitless Width Aero Technology enables us to build a rim that possesses wide, blunt dimensions and class-leading aerodynamic characteristics, whilst maintaining a weight that won’t detract from the all-round performance of the wheelset.</i>
<h1>H_RATCHET DBL HUBS</h1><i>New H_Ratchet double-sided system (with two floating ratchet rings), with a 40t ratchet ring resulting in just 9˚ engagement. The freehub benefits from H_Ceramik anti-bite coating to ensure maximum durability.</i>
<h1>Aerodynamically optimised</h1><i>Aerodynamically Optimised to be the ultimate all-round road racing wheelset for 28 and 30mm tyres</i>
<h1>On bike</h1><i>Hunt SUB50 Limitless Aero on Cervelo S5</i>
<h1>SPOKES</h1><i>TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke. Owing to the TaperLock technology, these spokes can be trued using a spoke key from inside the rim bed.</i>
<h1>CERAMICSPEED BEARINGS</h1><i>CeramicSpeed Balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. One size does not fit all. CeramicSpeed bearings are custom fitted for the HUNT H_Ratchet hubset at the CeramicSpeed factory, with extreme tolerances measured within a thousandth of a millimeter.</i>
<h1>MATTE REFLECTIVE GRAPHICS</h1><i>Reflective Limitless spoke graphics under matte clear coat.</i>
<h1>APPROVED BY THE UCI FOR RACING</h1>
<h1>TYRE WIDTH OPTIMISATION</h1><i>Designed with 23mm internal rim width optimised for 28mm and 30mm tyres. ETRTO-compatible.</i>
<h1>ADAPTABILITY</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard, you just need to let us know what you require by filling in the simple form on the confirmation page after checkout. Please note these wheels will not work with the older 15mm front road TA standard.</i>
<h1>LOW SYSTEM WEIGHT - FRONT</h1><i>Innovation in rim layup technology, UD carbon spokes and hubs delivers class-leading low weight. Please note on scale images weighed without valves and tape. +/- 3% variation on wheelset weights can occur.</i>
<h1>LOW SYSTEM WEIGHT - REAR</h1><i>Innovation in rim layup technology, UD carbon spokes and ratchet hubs delivers class-leading low weight. Please note on scale images weighed without valves and tape. +/- 3% variation on wheelset weights can occur.</i>

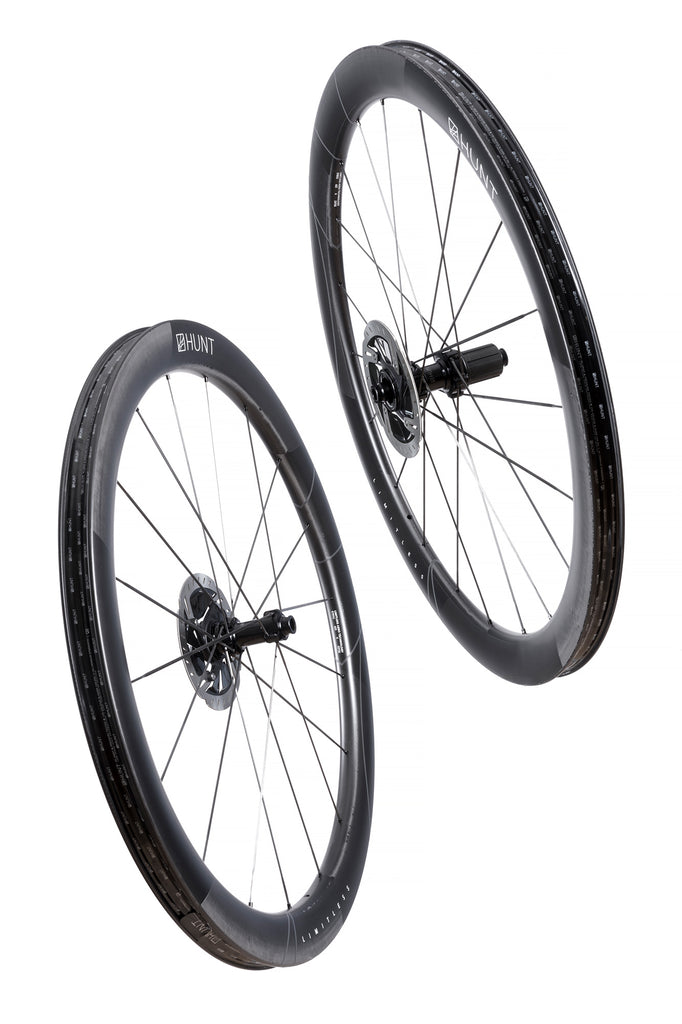

HUNT SUB50 Limitless UD Carbon Spoke Disc Wheelset

1380g Depth Width ext Width int size
49.5 mm F34 / R30 mm 23 mm 700c

The in-house engineering team at HUNT aimed to create the absolute fastest, no compromise, all-around road race wheelset up to and including 50mm in depth, while optimising for modern width road tyres (28mm and 30mm) and achieving the lowest system weight possible.

Aero optimised for 28mm and 30mm tyres; works well with 28mm up to 45mm.

"While it’s difficult to quantify a wheel’s aerodynamics accurately, I’ve ridden enough wheels to know when one feels fast—the SUB50 does. And perhaps more importantly, the SUB50 feels incredibly sure-footed at speed."
Which freehub do I need?
£1,849
Limited Stock. Available Now.
Stainless Steel Bearings - Limited Stock (£1,849)
CeramicSpeed Bearings - Limited Stock (£2,289)Items are selected to ship from us in the week stated. Delivery time is 1 day*

We will ask for axle info after checkout.

Finance options available at checkout

Order by 3pm for Next Day Delivery*
Our wheels are in high demand, don't miss out.

*If shown in stock. 1-3 days for tyre-fitting.

H_CARE

Included: H_Care Lifetime Crash Replacement

These wheels come with FREE H_Care, offering Lifetime Crash Replacement for the first owners. This is automatically included in your order. Learn more.

More details Right

The Purpose _

The Purpose _

The in-house engineering team at HUNT aimed to create the absolute fastest, no compromise, all-around road race wheelset up to and including 50mm in depth, while optimizing for modern width road tyres (28mm and 30mm) and achieving the lowest system weight possible. The Sub50 Limitless takes what we learned from creating our disc-brake wheelset redefining 48 Limitless (34.5mm wide), which when launched in 2019 proved in the wind-tunnel to be the fastest in its category. From that industry leading change others have followed.

A further three-year engineering development process has elevated the performance again with the SUB50 Limitless. Offering riders wind tunnel proven best-in-class aerodynamic efficiency and stability, combined with tyre shape optimization, at an impressively low system weight of 1380 grams, the Sub50 Limitless once more sets the standard for all-round road racing wheels.

KEY FEATURES_

<h1>LIMITLESS RIM PROFILE</h1><i>HUNT-patented Limitless Width Aero Technology enables us to build a rim that possesses wide, blunt dimensions and class-leading aerodynamic characteristics, whilst maintaining a weight that won’t detract from the all-round performance of the wheelset.</i>

Limitless Technology

HUNT-patented manufacturing process which utilizes a strip of low-density structural polymer inserted in a molded channel within the rim sidewall with carbon molded over it, allowing for extra width while minimizing material mass.

Front & Rear Specific Rim Design

Through the extensive testing with CFD modeling and Wind Tunnel validation, our engineering team havedeveloped front and rear specific profiles (34.2mm wide by 49.5mm deep front, 30mm wide by 49.5mm deep rear) that maximize aero benefit while minimizing material mass. Wide where it matters, fast everywhere.

<h1>H_RATCHET DBL HUBS</h1><i>New H_Ratchet double-sided system (with two floating ratchet rings), with a 40t ratchet ring resulting in just 9˚ engagement. The freehub benefits from H_Ceramik anti-bite coating to ensure maximum durability.</i>

H_Ratchet DBL HUBS

Dual-sided ratchet system with 40-tooth drive rings offering 9-degree engagement and 332g weight per set. 6066 aluminum alloy hub shell with extra strong 7075-T6 alloy axle and freehub body. H_Ceramik reinforced coating to protect against gouging.

CeramicSpeed Bearings

The pro teams’ choice and the undisputed leader in low rolling resistance and high durability. One size does not fit all. CeramicSpeed bearings are custom fit for the HUNT H_Ratchet hubset at the CeramicSpeed factory, with extreme tolerances measured within a thousandth of a millimeter.

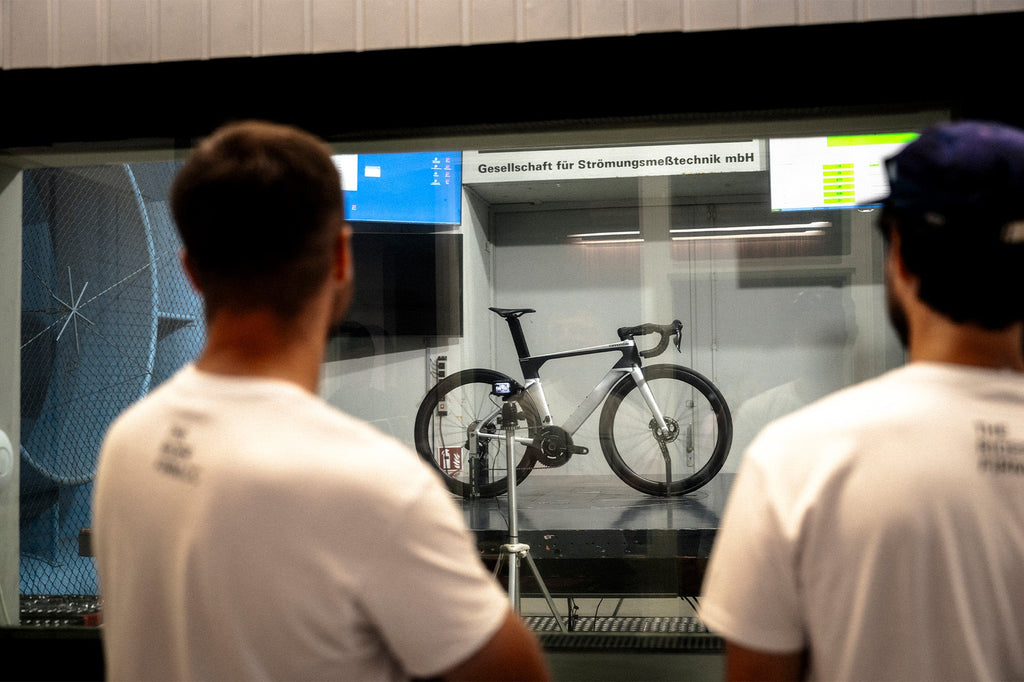

Wind Tunnel Tested

Developed by HUNT’s in-house engineering team, leveraging CFD analysis and 3D prototyping, along with the proven validation method of wind tunnel testing, the HUNT engineering team has raised the expectation level for aerodynamic efficiency while simultaneously reducing the wheel system weight and increasing responsiveness, creating a world-beating combination of performance attributes.

UD Carbon Spokes

TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke.

FREE H_CARE

These wheels come with FREE LIFETIME CRASH REPLACEMENT. To ensure you're not out of pocket should the worst happen. Learn more.

TECHNOLOGY _

At Hunt technical performance is central to how we serve the rider.

For our in-depth engineering development programs we produce a detailed research white paper to provide the full development methodology and data. Please click here to download the Sub50 Limitless white Paper.

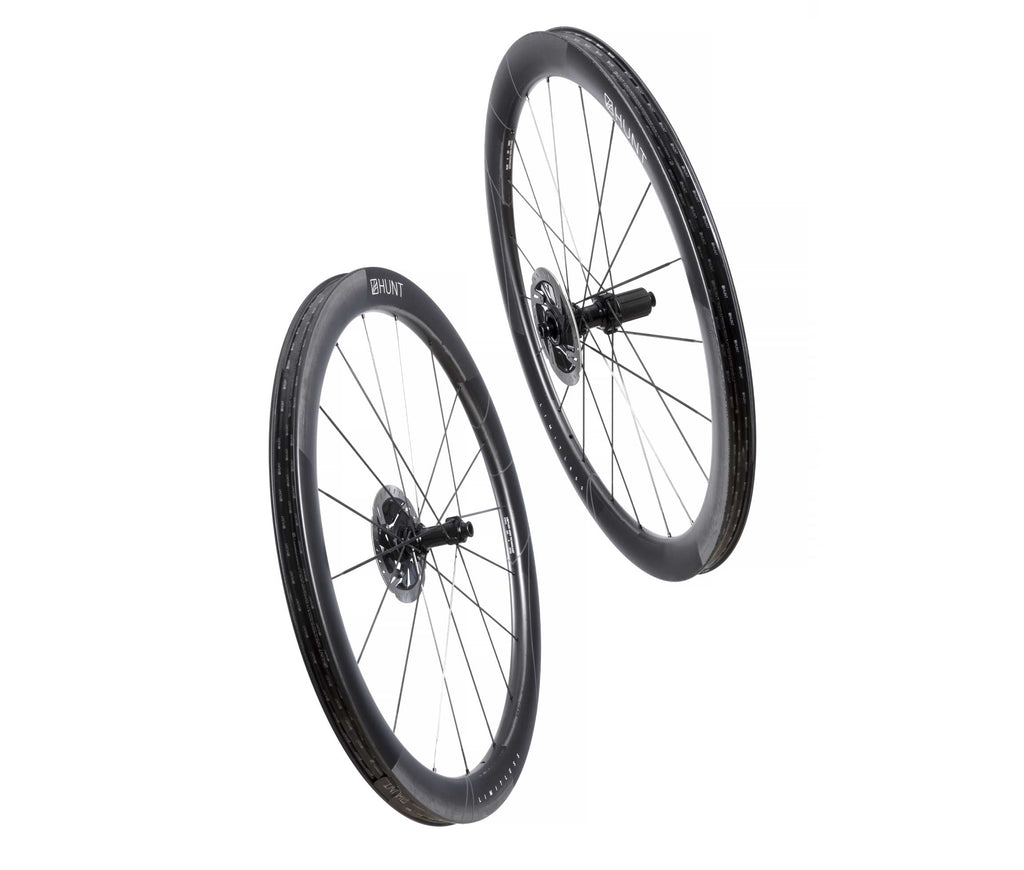

Full Specs _

Rims
Limitless profile, disc-specific & aerodynamically optimised for 28-30c tyres Front and rear specific profiles Front rim dimensions: 49.5mm deep | 34.2mm external width | 23mm internal width Rear rim dimensions: 49.5mm deep | 30mm external width | 23mm internal width Hookless ETRTO compliant for use with 28c tyres and wider Reflective graphics with matte clear coat
  • Limitless profile, disc-specific & aerodynamically optimised for 28-30c tyres
  • Front and rear specific profiles
  • Front rim dimensions: 49.5mm deep | 34.2mm external width | 23mm internal width
  • Rear rim dimensions: 49.5mm deep | 30mm external width | 23mm internal width
  • Hookless
  • ETRTO compliant for use with 28c tyres and wider
  • Reflective graphics with matte clear coat
Spokes
2.7g per spoke 18 front (1 cross on rotor side, radial on drive side) 20 rear (2 cross both sides) No interlacing Bladed
  • 2.7g per spoke
  • 18 front (1 cross on rotor side, radial on drive side)
  • 20 rear (2 cross both sides)
  • No interlacing
  • Bladed
Nipples
TaperLock nipples secure spoke head to the hub. Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing. Internal nipple for truing. Black anodized finish.
  • TaperLock nipples secure spoke head to the hub.
  • Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing.
  • Internal nipple for truing.
  • Black anodized finish.
Front Hub
Forged and CNC’d 6066-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axle. Polished anodized black finish with laser graphics. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
  • Forged and CNC’d 6066-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axle.
  • Polished anodized black finish with laser graphics.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
Rear Hub
H_Ratchet 40t, dual sided ratchet rings, 9˚ engagement Floating ratchet rings are contained as a cassette, meaning they won’t pop out in pieces during routine service. H_Ceramik freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies All freehub standards accounted for. Forged and CNC’d 6066-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axle. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here Polished anodized black finish with laser graphics.
  • H_Ratchet 40t, dual sided ratchet rings, 9˚ engagement
  • Floating ratchet rings are contained as a cassette, meaning they won’t pop out in pieces during routine service.
  • H_Ceramik freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies
  • All freehub standards accounted for.
  • Forged and CNC’d 6066-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axle.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Polished anodized black finish with laser graphics.
CeramicSpeed Bearings
Industry leading CeramicSpeed hybrid ceramic bearings 3 to 5 times longer lasting than other ceramic bearings on the market and 10 times more than standard steel bearings. CeramicSpeed bearing balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. 15% harder, take 99% higher loads and are more than 100% smoother than other ceramic balls typically seen in the market. The smoothness and the hardness of the CeramicSpeed Balls are unique. 4 year warranty (When registered with CeramicSpeed)
  • Industry leading CeramicSpeed hybrid ceramic bearings
  • 3 to 5 times longer lasting than other ceramic bearings on the market and 10 times more than standard steel bearings.
  • CeramicSpeed bearing balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. 15% harder, take 99% higher loads and are more than 100% smoother than other ceramic balls typically seen in the market. The smoothness and the hardness of the CeramicSpeed Balls are unique.
  • 4 year warranty (When registered with CeramicSpeed)
Tyres Info

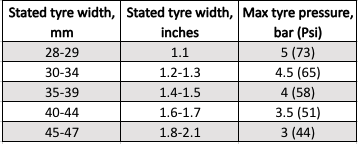

HUNT recommends a 28-30mm tyre for best performance, tyre widths between 28mm and 47mm are also safe to use. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower. Only use tyres marked as compatible with hookless (TSS) rims. Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post here about this. Tubeless-ready for lower weight and rolling resistance.
  • HUNT recommends a 28-30mm tyre for best performance, tyre widths between 28mm and 47mm are also safe to use.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • Only use tyres marked as compatible with hookless (TSS) rims.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post here about this.
  • Tubeless-ready for lower weight and rolling resistance.
Axle Sizes
These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

<h1>LIMITLESS RIM PROFILE</h1><i>HUNT-patented Limitless Width Aero Technology enables us to build a rim that possesses wide, blunt dimensions and class-leading aerodynamic characteristics, whilst maintaining a weight that won’t detract from the all-round performance of the wheelset.</i>

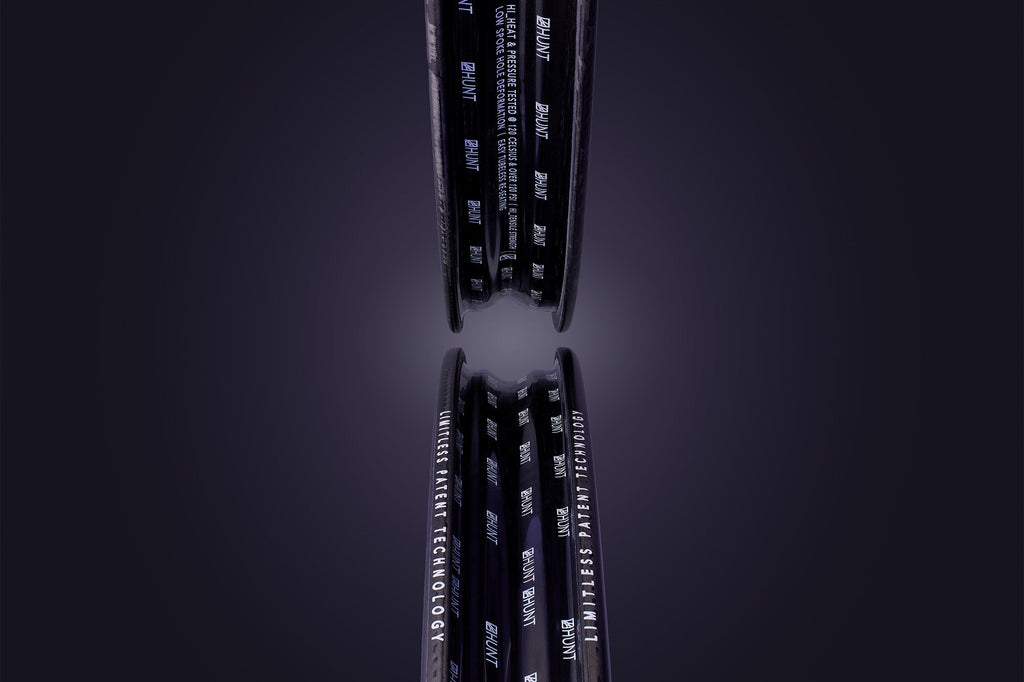

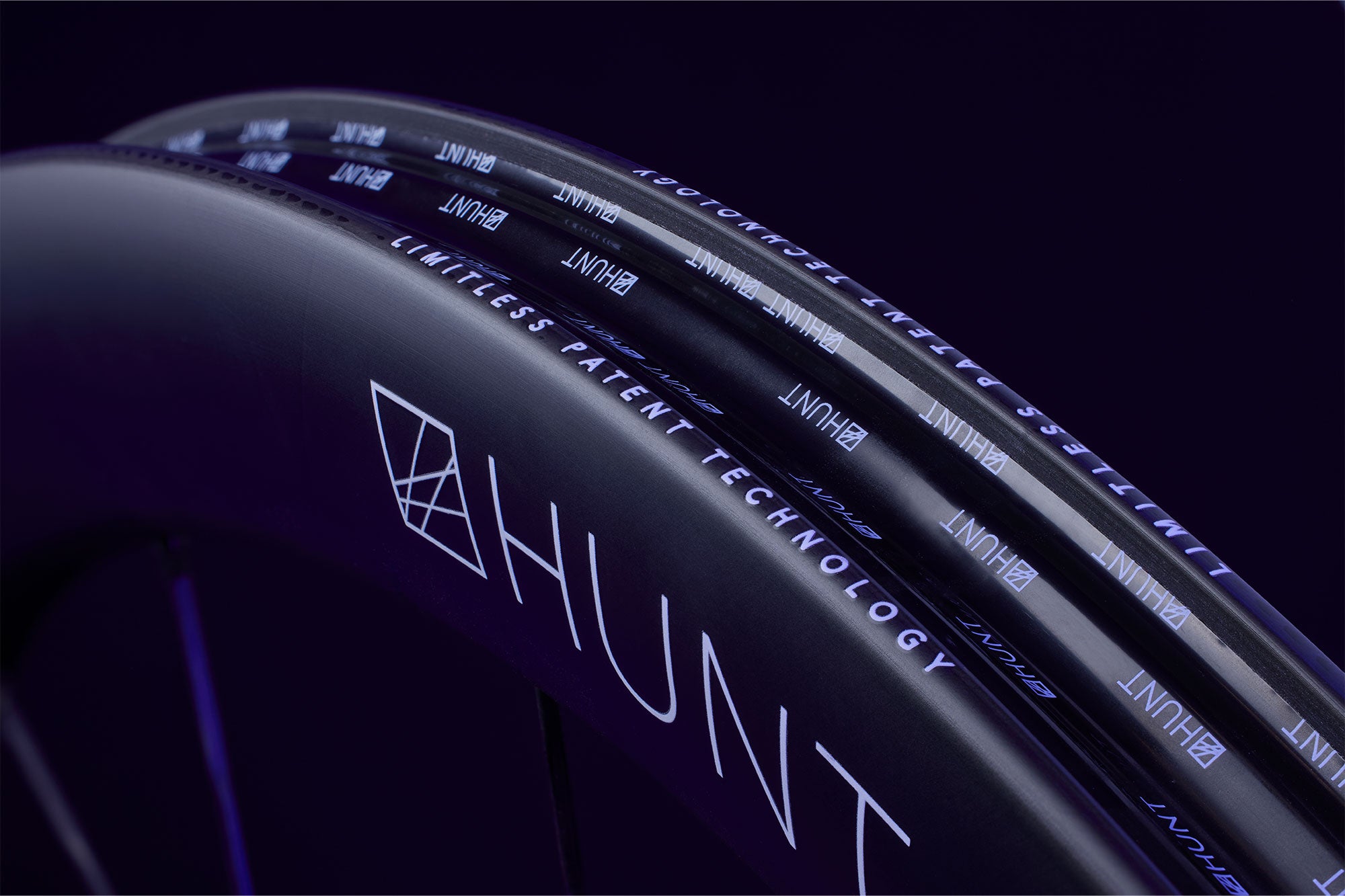

LIMITLESS RIM PROFILE

HUNT-patented Limitless Width Aero Technology enables us to build a rim that possesses wide, blunt dimensions and class-leading aerodynamic characteristics, whilst maintaining a weight that won’t detract from the all-round performance of the wheelset.

<h1>H_RATCHET DBL HUBS</h1><i>New H_Ratchet double-sided system (with two floating ratchet rings), with a 40t ratchet ring resulting in just 9˚ engagement. The freehub benefits from H_Ceramik anti-bite coating to ensure maximum durability.</i>

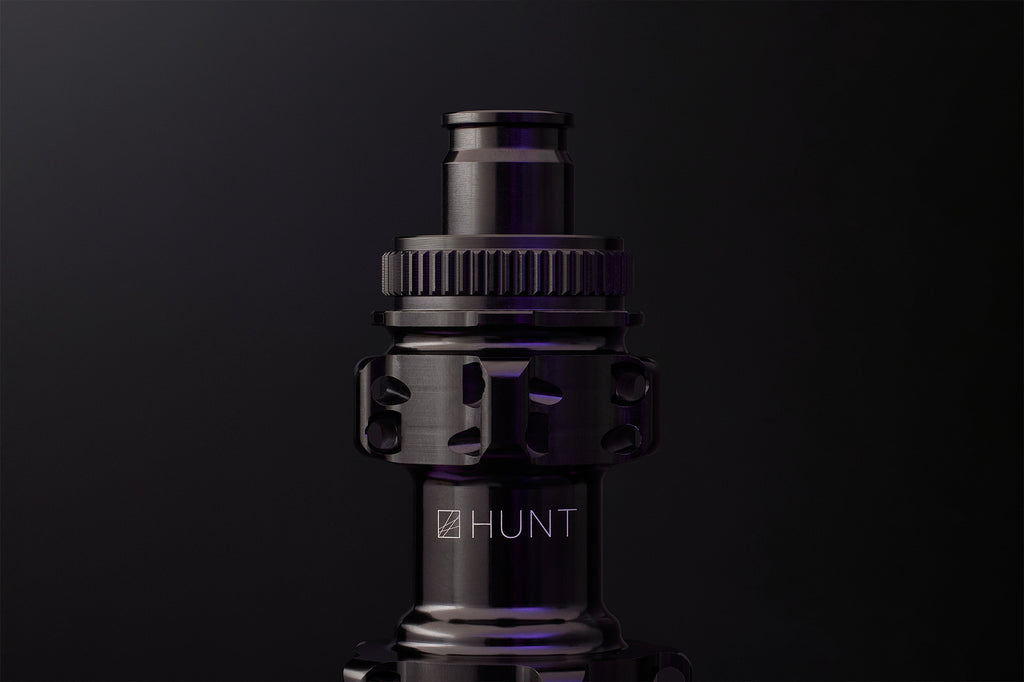

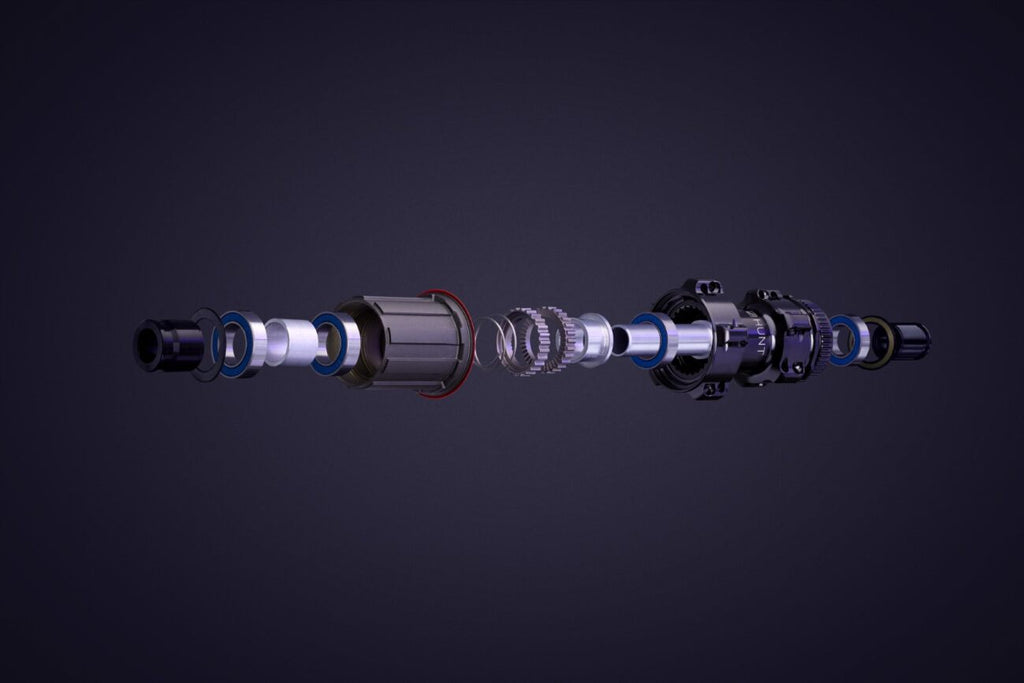

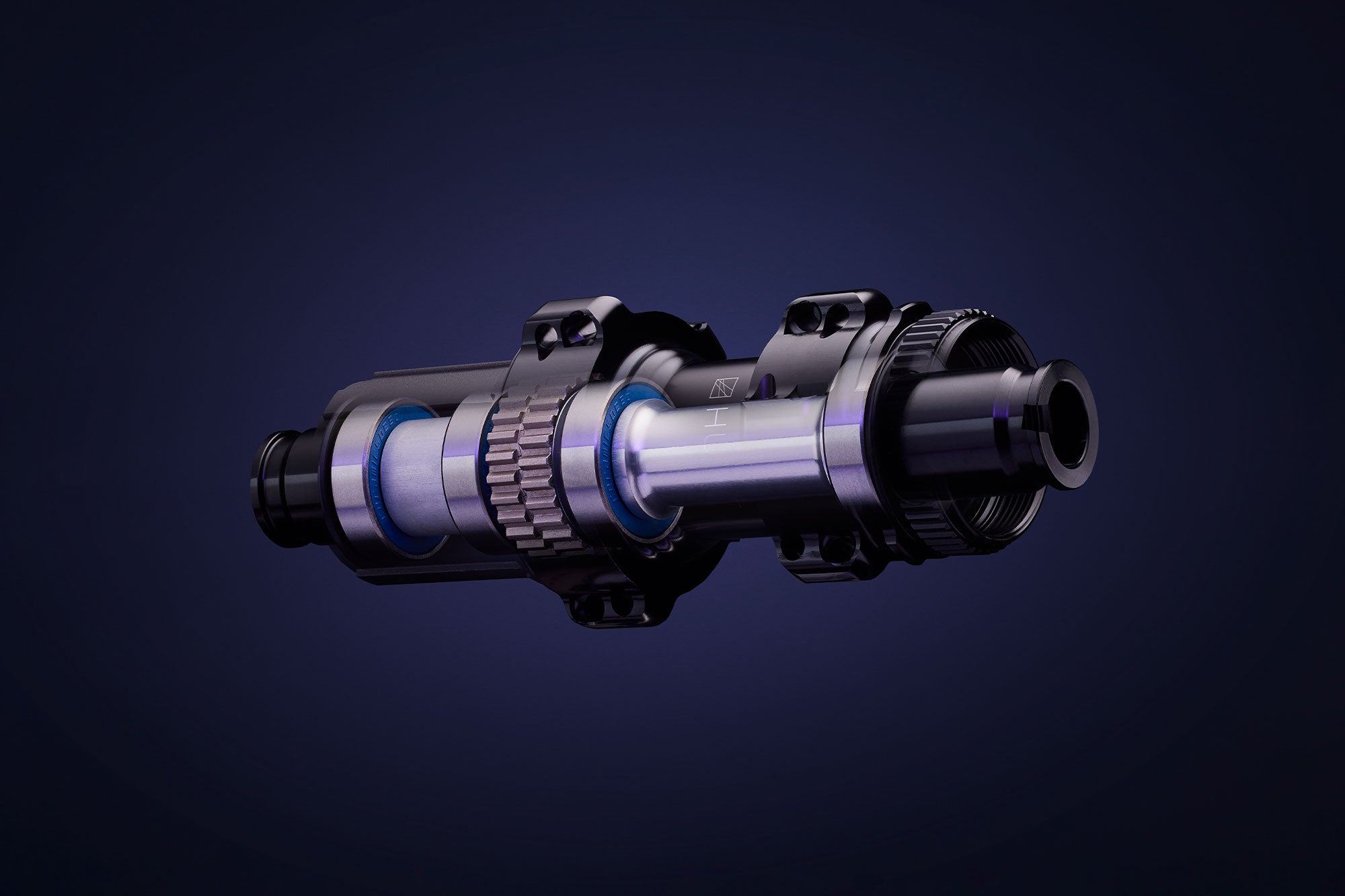

HUNT H_Ratchet DBL HUBS



HUNT H_Ratchet DBL, 40T dual sided ratchet system, 9-degree engagement.

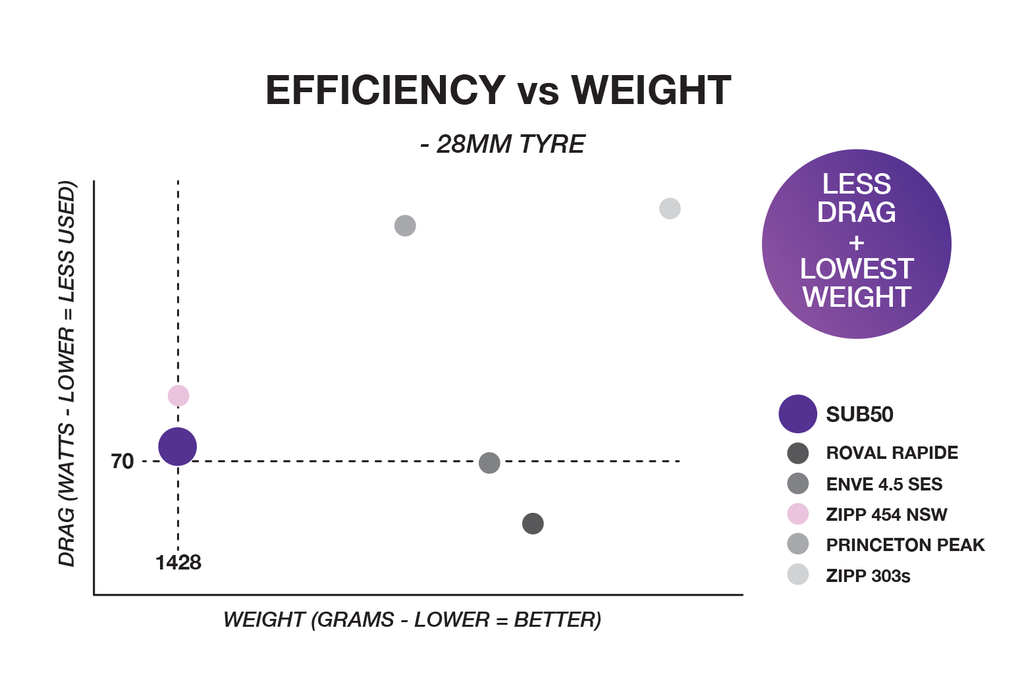

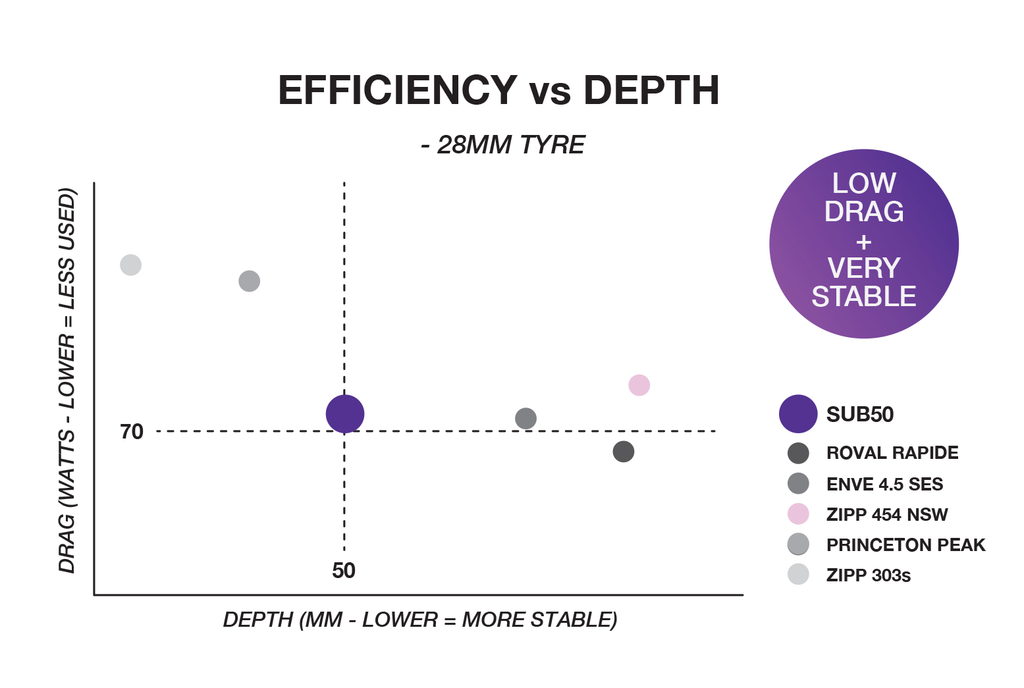

AERODYNAMICALLY OPTIMISED

Aerodynamically Optimised to be the ultimate all-round road racing wheelset for 28 and 30mm tyres

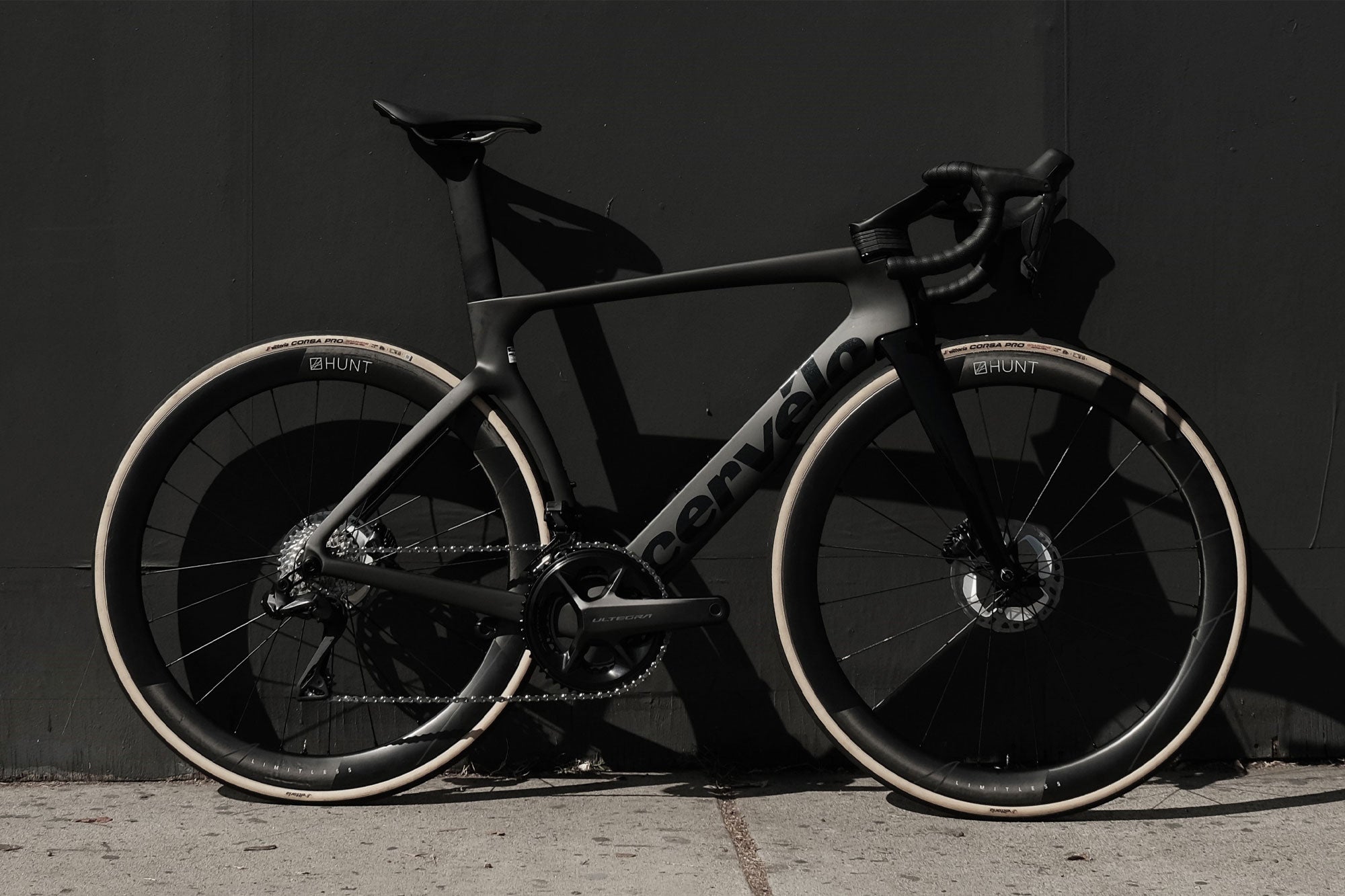

ON BIKE

Hunt SUB50 Limitless Aero on Cervelo S5

<h1>SPOKES</h1><i>TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke. Owing to the TaperLock technology, these spokes can be trued using a spoke key from inside the rim bed.</i>

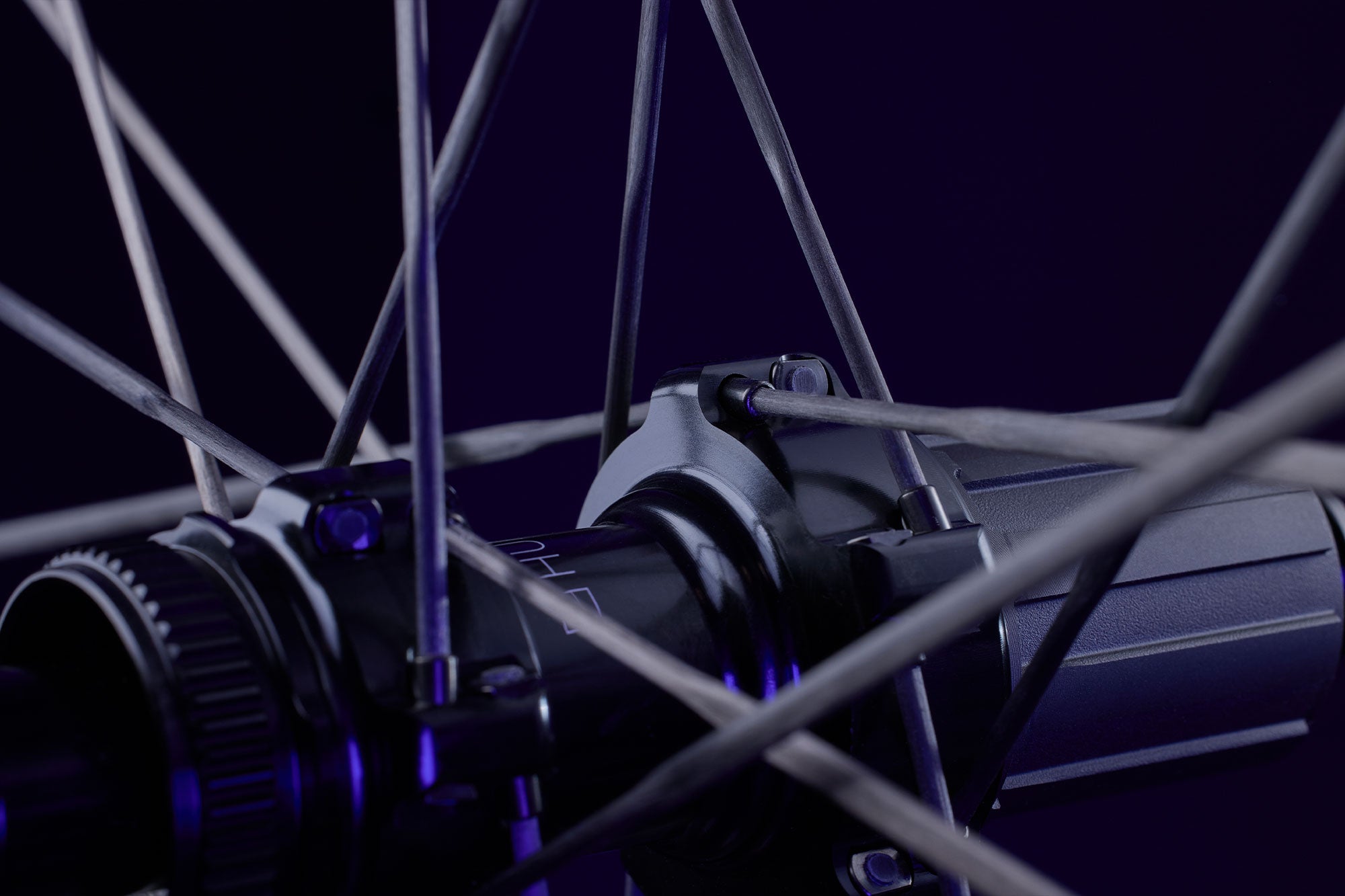

SPOKES



TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke. Owing to the TaperLock technology, these spokes can be trued using a spoke key from inside the rim bed.

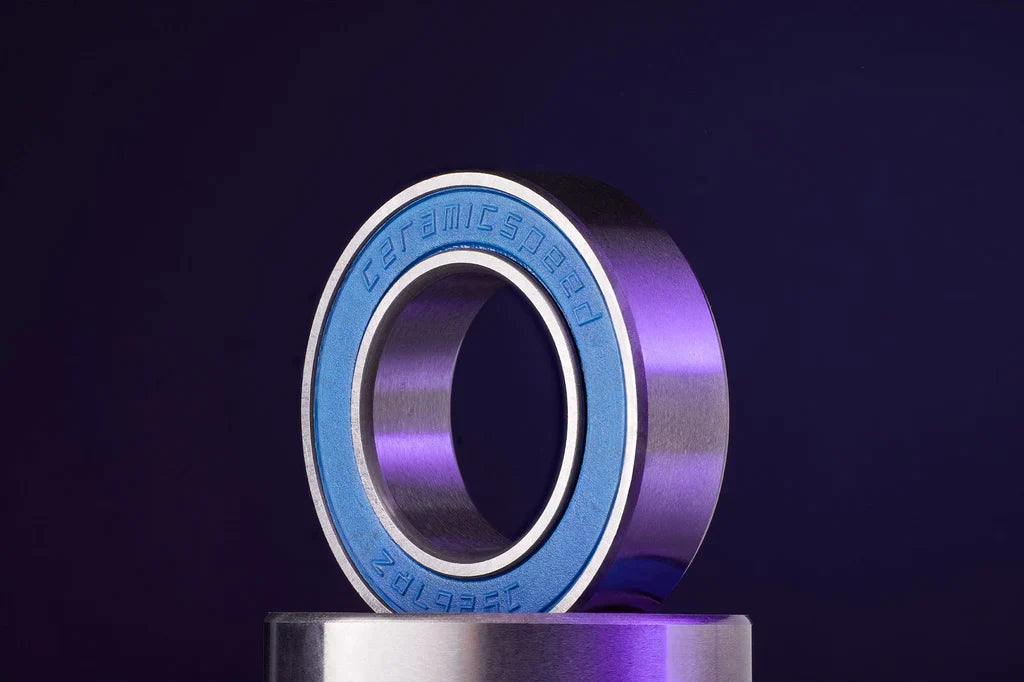

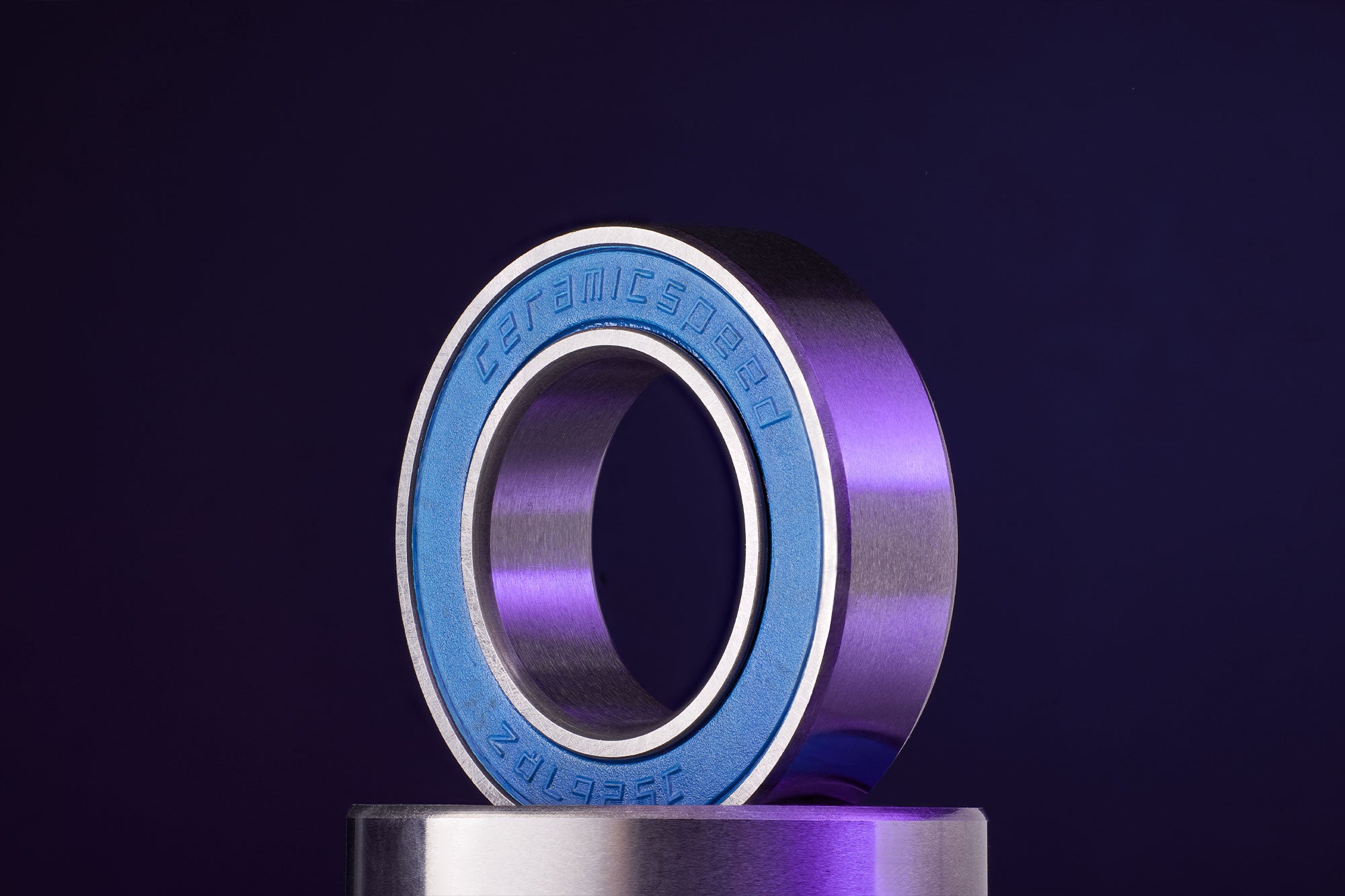

CERAMICSPEED BEARINGS

CeramicSpeed Balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. One size does not fit all. CeramicSpeed bearings are custom fitted for the HUNT H_Ratchet hubset at the CeramicSpeed factory, with extreme tolerances measured within a thousandth of a millimeter.

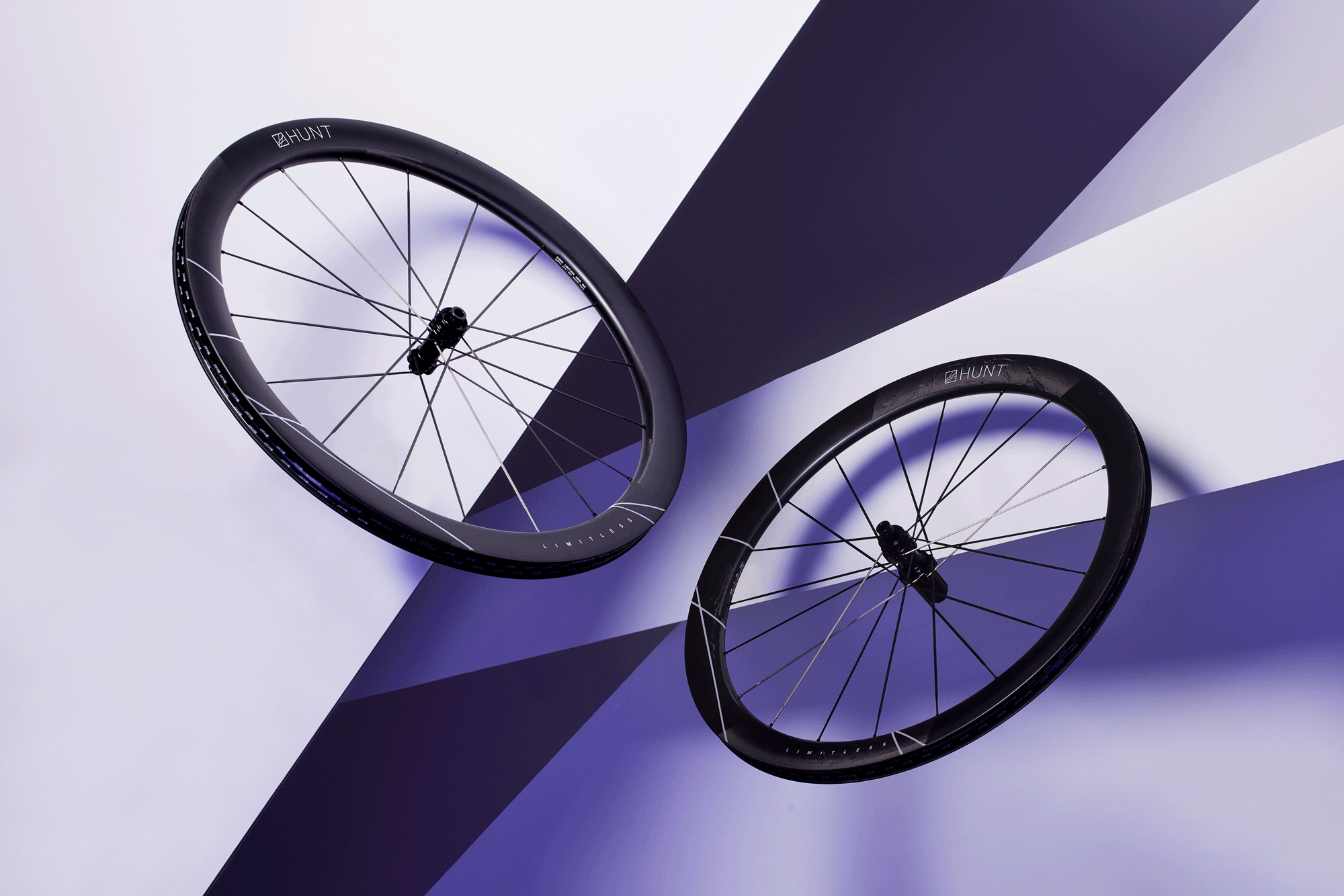

MATTE REFLECTIVE GRAPHICS

Reflective Limitless spoke graphics under matte clear coat.

APPROVED BY THE UCI FOR RACING

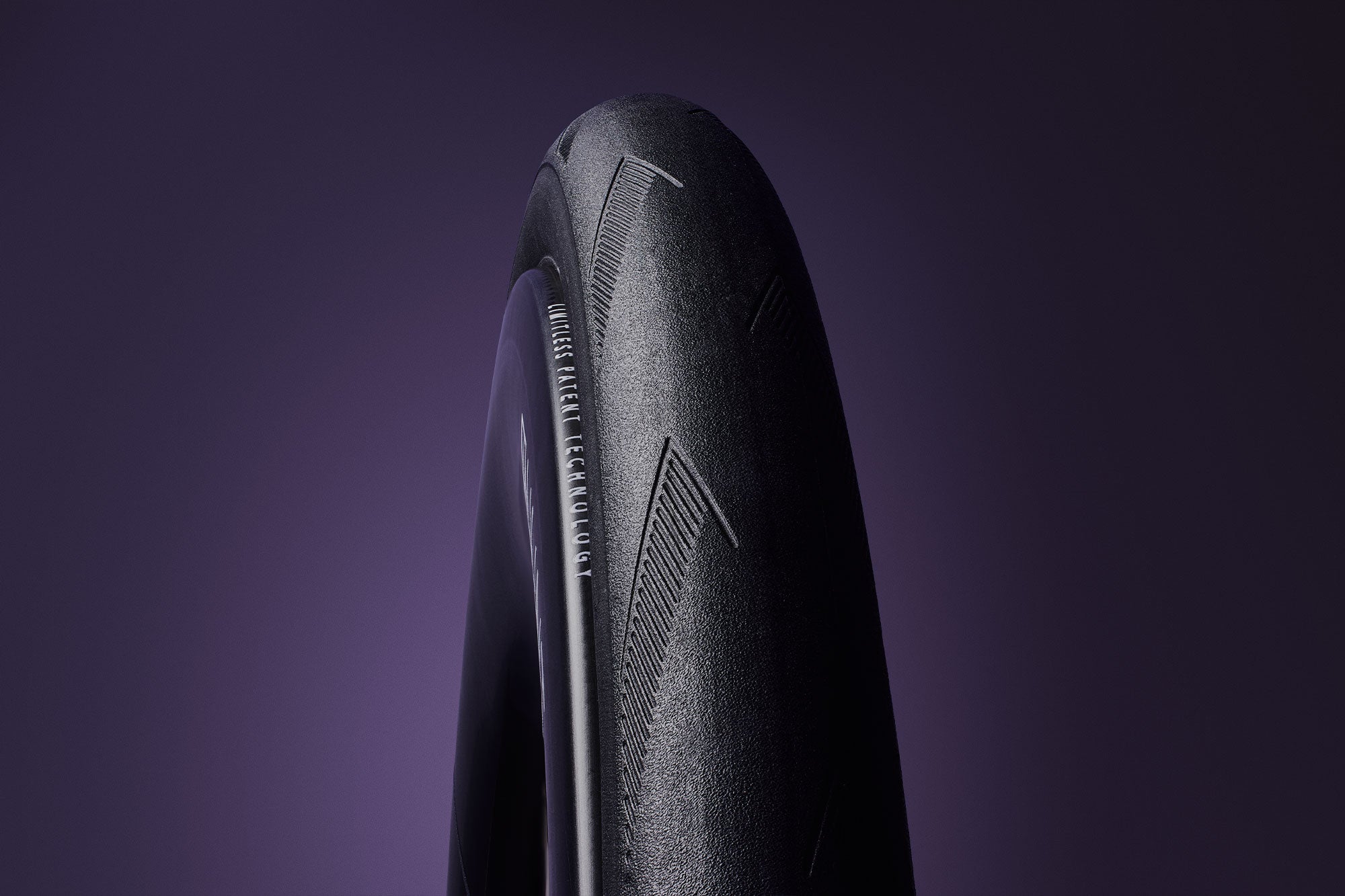

TYRE WIDTH OPTIMISATION

Designed with 23mm internal rim width optimised for 28c and 30c tyres. ETRTO-compatible and tubeless-ready.

Featuring HUNT’s H_Ratchet double-sided system (with two floating ratchet rings), with a 40t ratchet ring resulting in just 9˚ engagement. The freehub benefits from H_Ceramik anti-bite coating to ensure maximum durability. Durability is a theme for HUNT, and so all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.

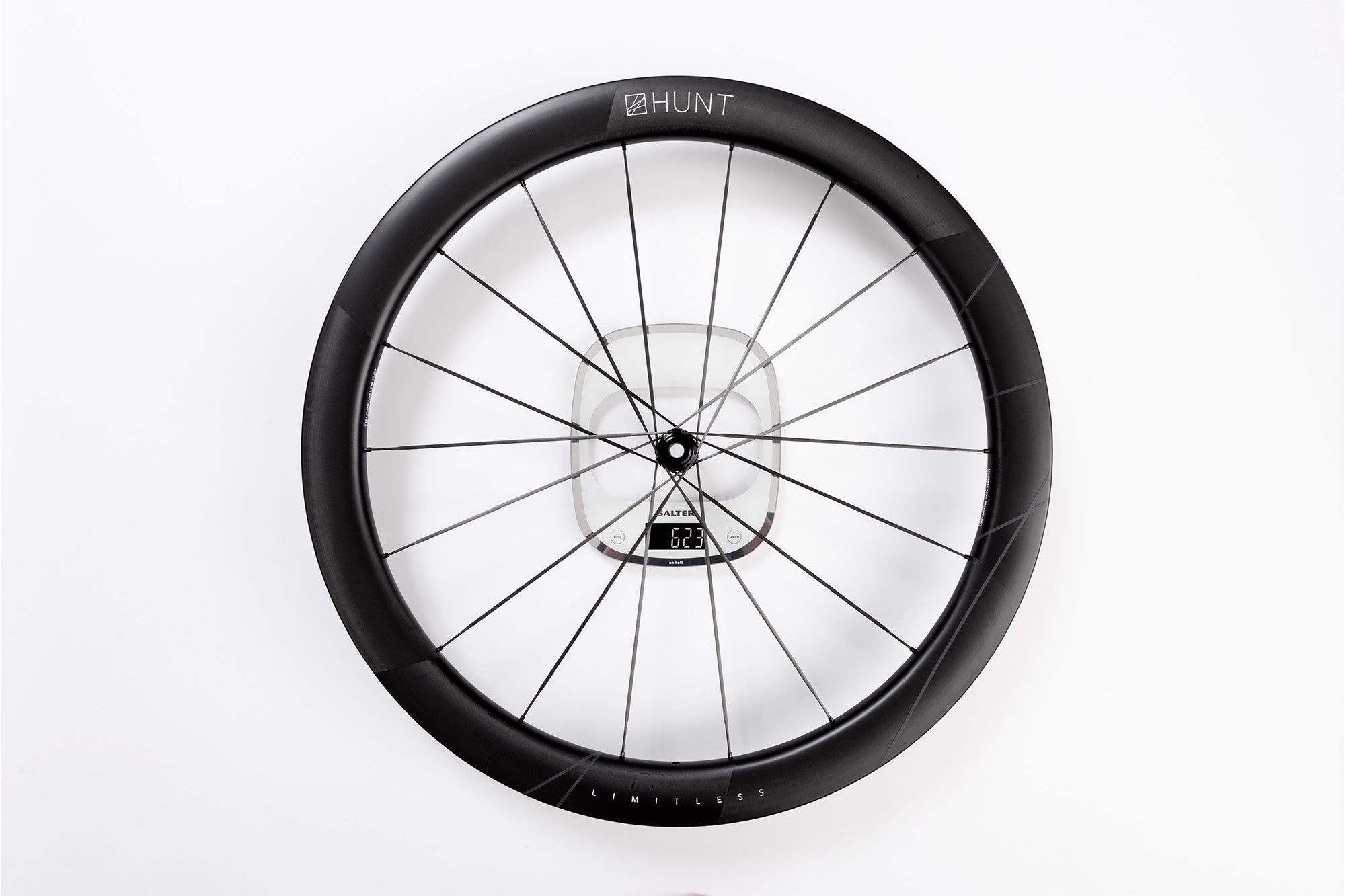

LOW SYSTEM WEIGHT - FRONT

Innovation in rim layup technology, UD carbon spokes and hubs delivers class-leading low weight. Please note on scale images weighed without valves and tape. +/- 3% variation on wheelset weights can occur.

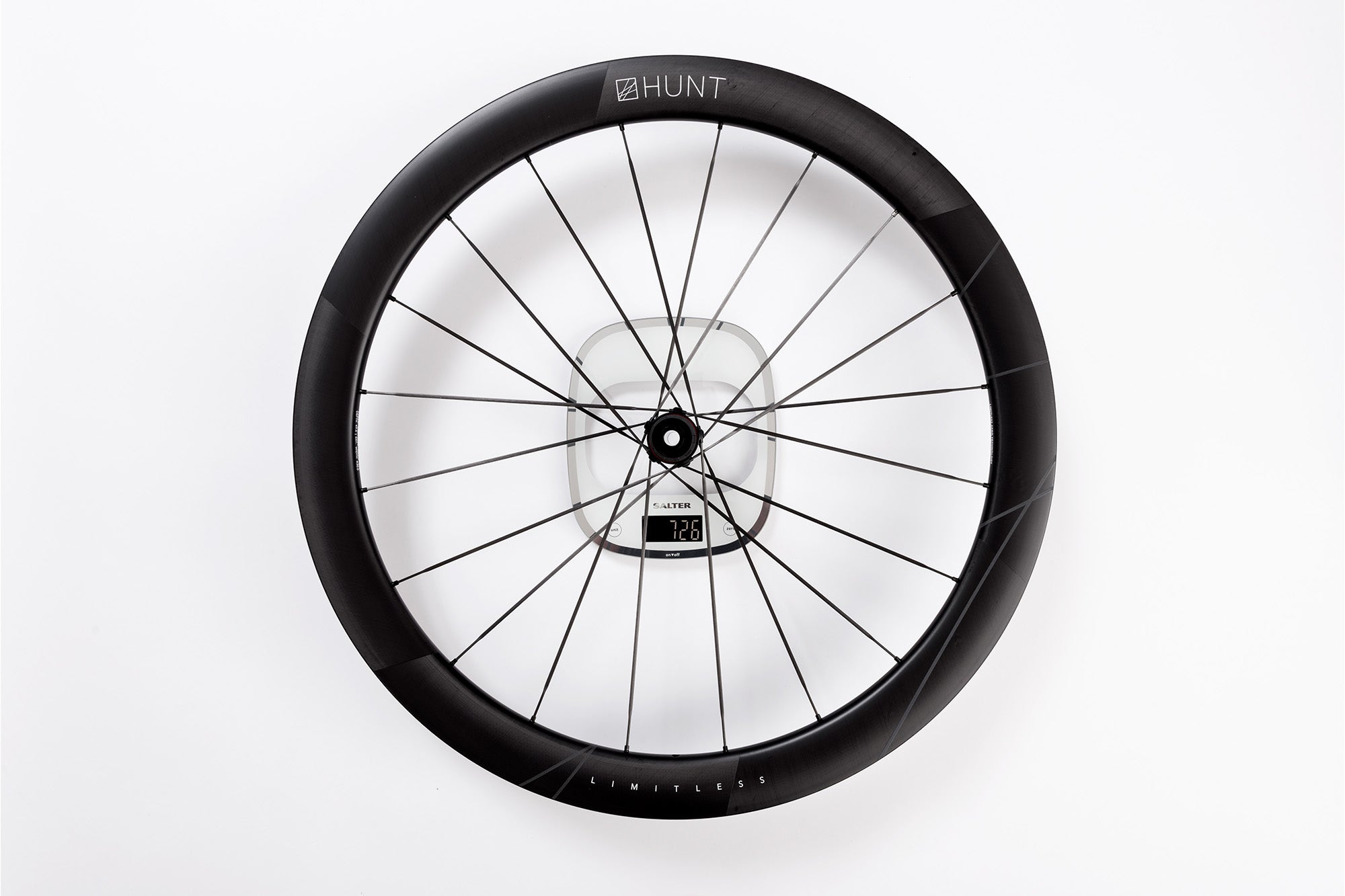

LOW SYSTEM WEIGHT - REAR

Innovation in rim layup technology, UD carbon spokes and ratchet hubs delivers class-leading low weight. Please note on scale images weighed without valves and tape. +/- 3% variation on wheelset weights can occur.

REVIEWS_

Bike Magazine and Websites Expert's Views

"While it’s difficult to quantify a wheel’s aerodynamics accurately, I’ve ridden enough wheels to know when one feels fast—the SUB50 does. And perhaps more importantly, the SUB50 feels incredibly sure-footed at speed."

"Acceleration and handling as well as stability are impressive. In addition, the SUB50 Limitless were very predictable and not very nervous on fast descents. And that is anything but a given for wheels with this rim depth. Overall, a great package at a reasonable price."

“These are premium wheels with technology to command a price point that matches. It's worth remembering though, Hunt is actually offering features that are one more level up.”

What's in the box _

  • HUNT Black Shield tubeless rim tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Center-lock disc brake lock rings
  • Cassette spacer for 8/9/10 speed
  • 60mm Tubeless Valves
  • Quality control card signed by your wheel builder

WARRANTY_

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners. Read all about it here.

A full 3 years (4 years on CeramicSpeed bearings*) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 125 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 105 kg then an experienced bike mechanic should check the wheel regularly.
