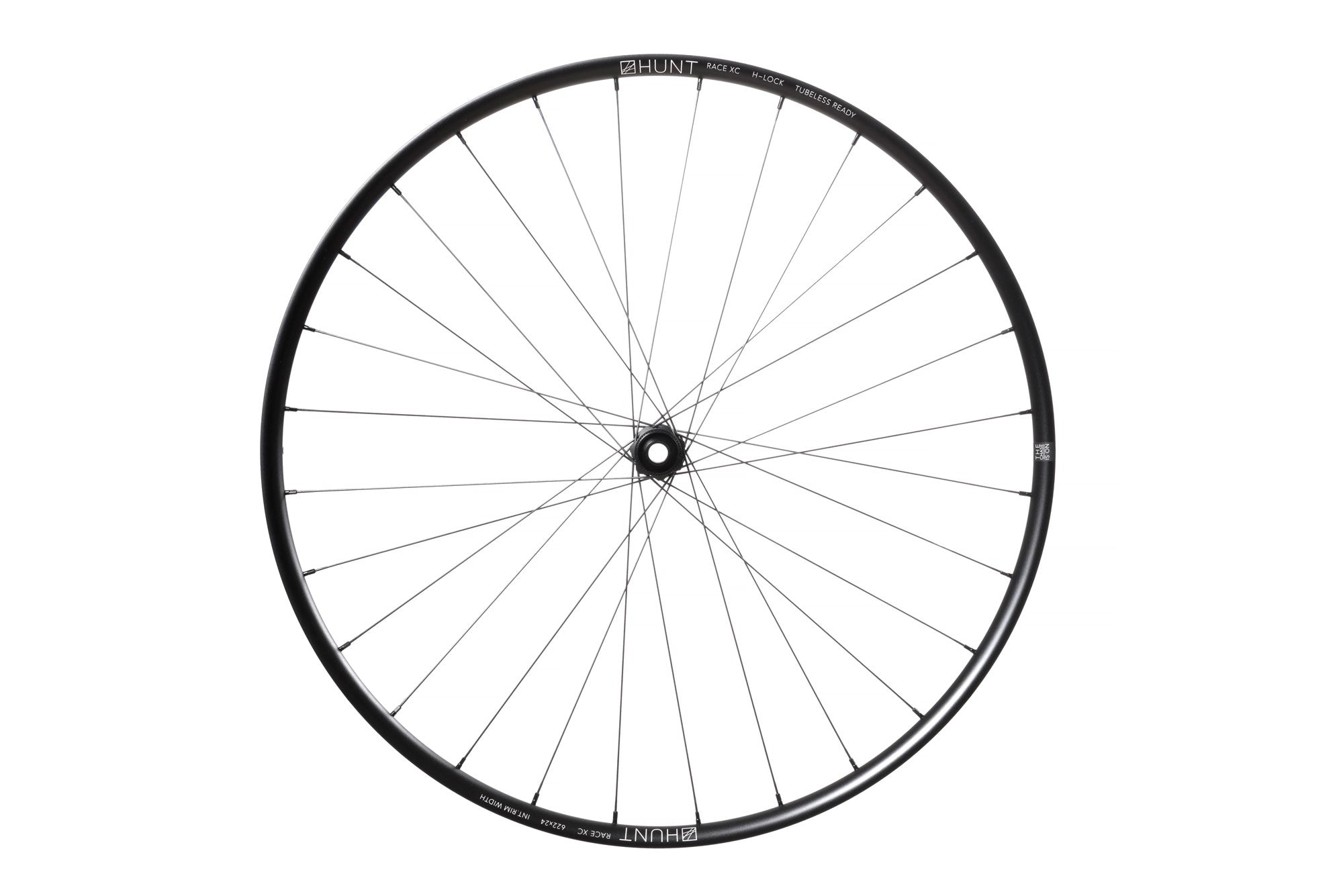

HUNT Race XC MTB 29 Single Wheel
50% off

HUNT Race XC MTB 29 Single Wheel

1517g Width int size
24 mm 29"

Our lightest alloy Race XC wheelset weighs in at an incredible 1517g a pair!

Ultra-low weight 24mm wide rims perfectly engineered for use with modern XC tyres. FEA developed, lab-tested and race-proven.

Tyre size: Optimized for 2.1" to 2.35" tyres; work well with 2.0" up to 2.5" tyres.

Which freehub do I need?
£164.50 £329.00
50% off

We will ask for axle info after checkout.

More details Right

The Purpose _

The Purpose _

Building on everything we learnt with the XC Wide; the Race version takes things even further. Saving nearly 150g whilst not sacrificing any strength, this is the perfect choice for when you're attacking both the ups, and downs, at race pace. With 24mm internal 6069-T6 alloy (+69% tensile strength vs 6061-T6) rims they are no flexy featherweights- built to handle the demands of today’s rocky and rooty XC courses or be fitted to the new breed of long-legged “downcountry” bikes. With 5° RapidEngage Hubs and excellent torsional strength from Pillar's PSR Straight Pull Spokes, they'll make every pedal stroke count when it's needed most.

Full Specs _

Rims
29 rim 24mm internal width. 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6) Tubeless-ready – designed to work best with tubeless tyres. Tubeless rim tape and valves included. H-lock bead-seat up-kicks for easy and secure tubeless installation. Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
  • 29 rim
  • 24mm internal width.
  • 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6)
  • Tubeless-ready – designed to work best with tubeless tyres. Tubeless rim tape and valves included.
  • H-lock bead-seat up-kicks for easy and secure tubeless installation.
  • Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
Spokes
Straight-pull for excellent torsional strength and direct power transfer 28 F&R spoke count. Laced 2 Cross. Pillar Spokes made from Sandvik T302 (18/10) stainless steel. Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area. Black stainless treatment.
  • Straight-pull for excellent torsional strength and direct power transfer
  • 28 F&R spoke count. Laced 2 Cross.
  • Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
  • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
  • Black stainless treatment.
Nipples
Hard-anodized alloy for weight reduction and strength. Square body for external adjustment and hex head for easy internal adjustment/tensioning. Long 14mm thread for durability 14 gauge Black hard anodizing
  • Hard-anodized alloy for weight reduction and strength.
  • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
  • Long 14mm thread for durability
  • 14 gauge
  • Black hard anodizing
Front Hub
Asymmetric flanges for more balanced spoke tensions. Oversized axles. Extruded and CNC machined 6066-T6 heat-treated aluminium alloy body. 7075-T6 aluminium alloy axles. 6 bolt disc mount/center-lock option available. Polished anodized black finish with laser graphics.
  • Asymmetric flanges for more balanced spoke tensions.
  • Oversized axles.
  • Extruded and CNC machined 6066-T6 heat-treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • 6 bolt disc mount/center-lock option available.
  • Polished anodized black finish with laser graphics.
Rear Hub
Extruded and CNC machined 6066-T6 heat-treated aluminium alloy hub body. 148x12mm. H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. Boost QR skewers NOT supplied. 4 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees Oversized 7075-T6 heat treated aluminium axles. All freehub standards accounted for. 7075-T6 aluminium alloy axles. 6 bolt disc mount/center-lock option available. Polished anodized black finish with laser graphics.
  • Extruded and CNC machined 6066-T6 heat-treated aluminium alloy hub body.
  • 148x12mm.
  • H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • Boost QR skewers NOT supplied.
  • 4 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
  • Oversized 7075-T6 heat treated aluminium axles.
  • All freehub standards accounted for.
  • 7075-T6 aluminium alloy axles.
  • 6 bolt disc mount/center-lock option available.
  • Polished anodized black finish with laser graphics.
Bearings
Precision sealed cartridge replaceable units. Large diameter ball bearings for extra durability. Dual full-contact rubber seals.
  • Precision sealed cartridge replaceable units.
  • Large diameter ball bearings for extra durability.
  • Dual full-contact rubber seals.
Axle Sizes
Boost - 148x12mm (Rear) with 110x15mm (Front). 141x9mm (Rear) QR with 110x9mm (Front) Rock Shox Torque Caps available - just add a comment in the notes section on the cart page. QR adapters available - just complete the simple form after checkout. (Not compatible with Shimano Microspline) SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.
  • Boost - 148x12mm (Rear) with 110x15mm (Front). 141x9mm (Rear) QR with 110x9mm (Front)
  • Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
  • QR adapters available - just complete the simple form after checkout. (Not compatible with Shimano Microspline)
  • SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.
Tyres Info
HUNT recommends a 2.1" to 2.35" tyre for best performance, tyre widths between 1.1" and 2.6" are also safe to use.   Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 2.1" to 2.35" tyre for best performance, tyre widths between 1.1" and 2.6" are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.

What's in the box _

  • Hunt Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. Max system weight 135 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 125 kg then an experienced bike mechanic should check the wheel regularly.
