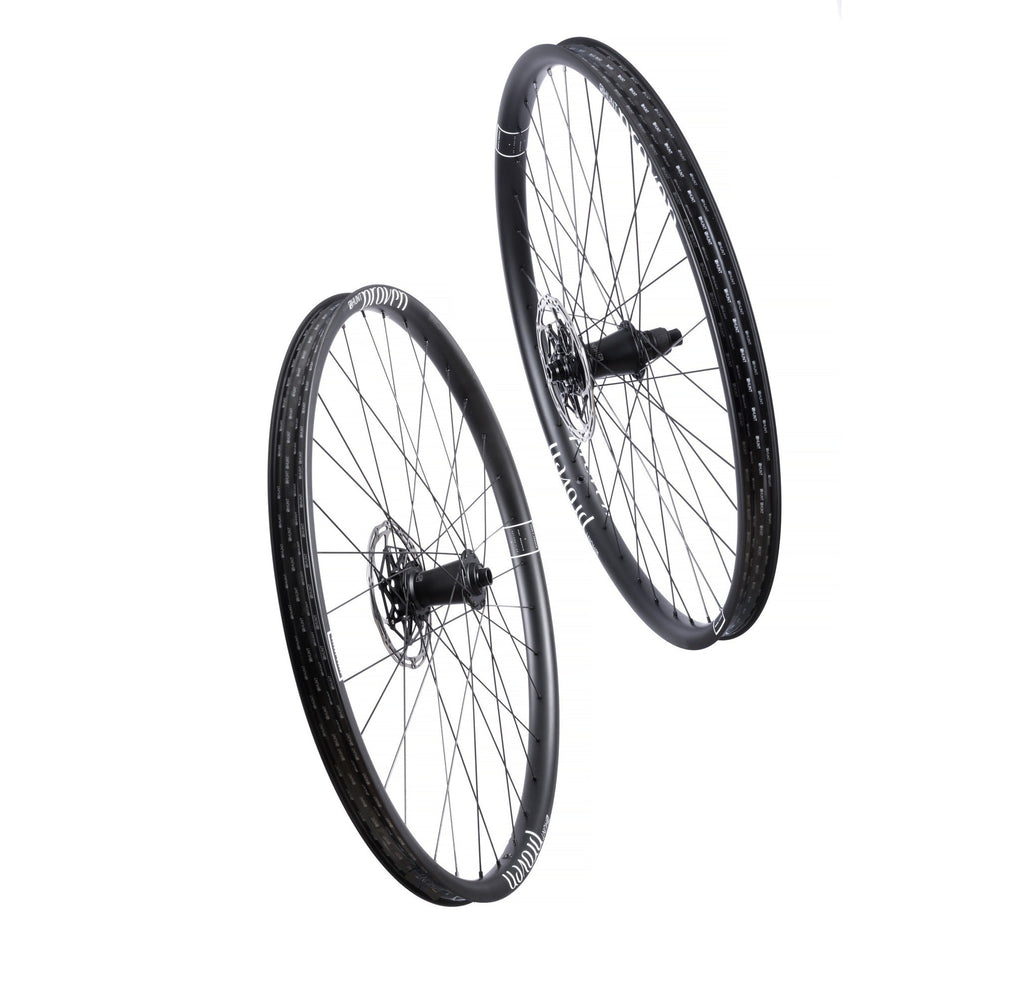

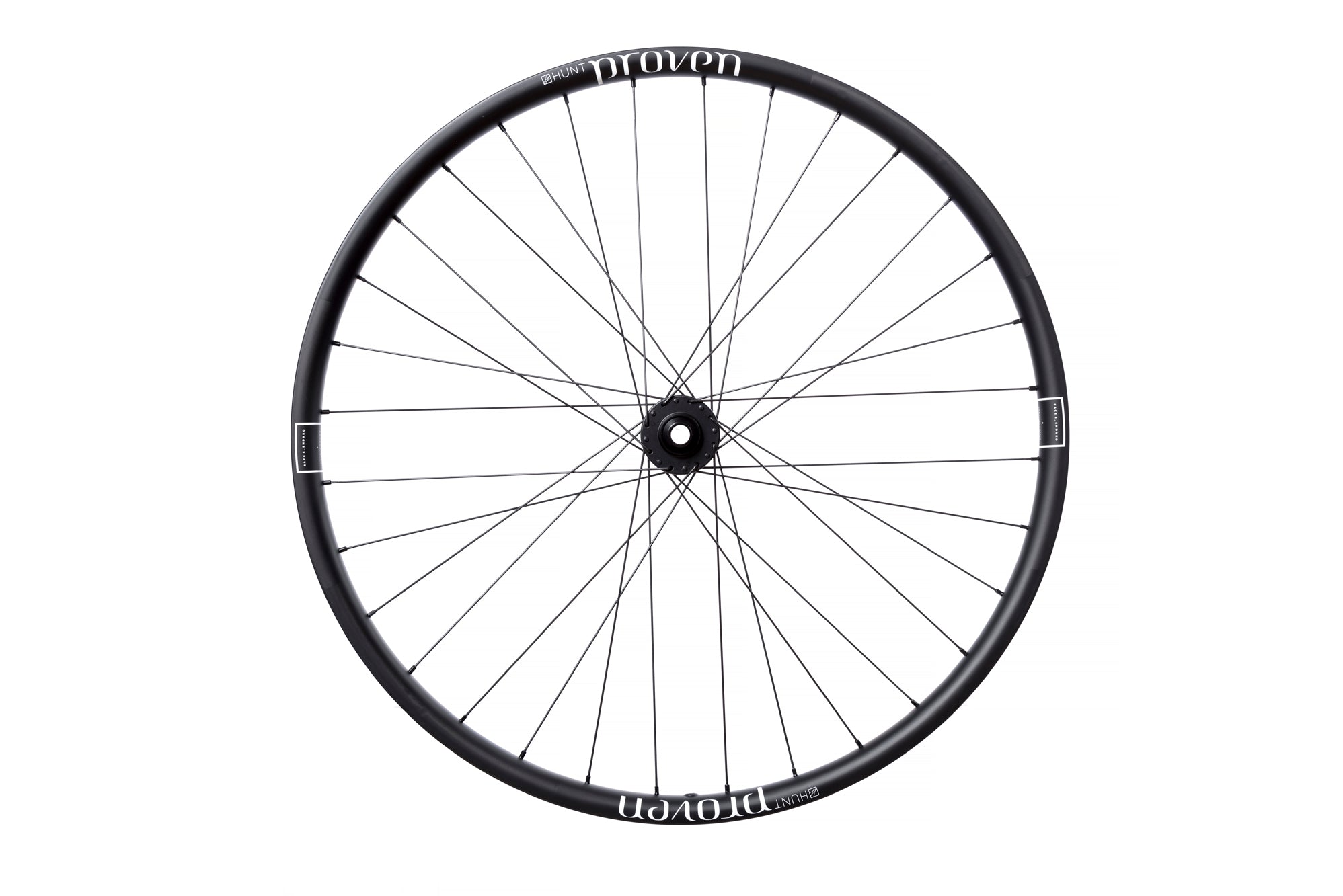

HUNT Proven Carbon Race E_Enduro Single Wheel

2182g Width int size
30 mm 29"

Built for hard-charging full-power and lightweight mid-power E-MTBs.

E-MTB specific carbon wheelset with impact-resistant carbon layup, high-specification Pillar triple butted spokes, PhaseEngage 6x1 freehub with steel ratchet ring.

Tyre size: Optimized for 2.4" to 2.8" tyres; work well with 2.25" up to 2.8" tyres.

Also available in 27.5" and Mullet.

£239.60 £599.00
60% off
Limited Stock. Available Now.
Items are selected to ship from us in the week stated. Delivery time is 1 day*

We will ask for axle info after checkout.

Please note: These are single wheels only. Specifications may not exactly match details listed.

Choose your finance options at checkout:

Order by 3pm for Next Day Delivery (if shown in stock). Allow 1-3 days for tyre-fitting.

Our wheels are in high demand, don't miss out.

The Purpose _

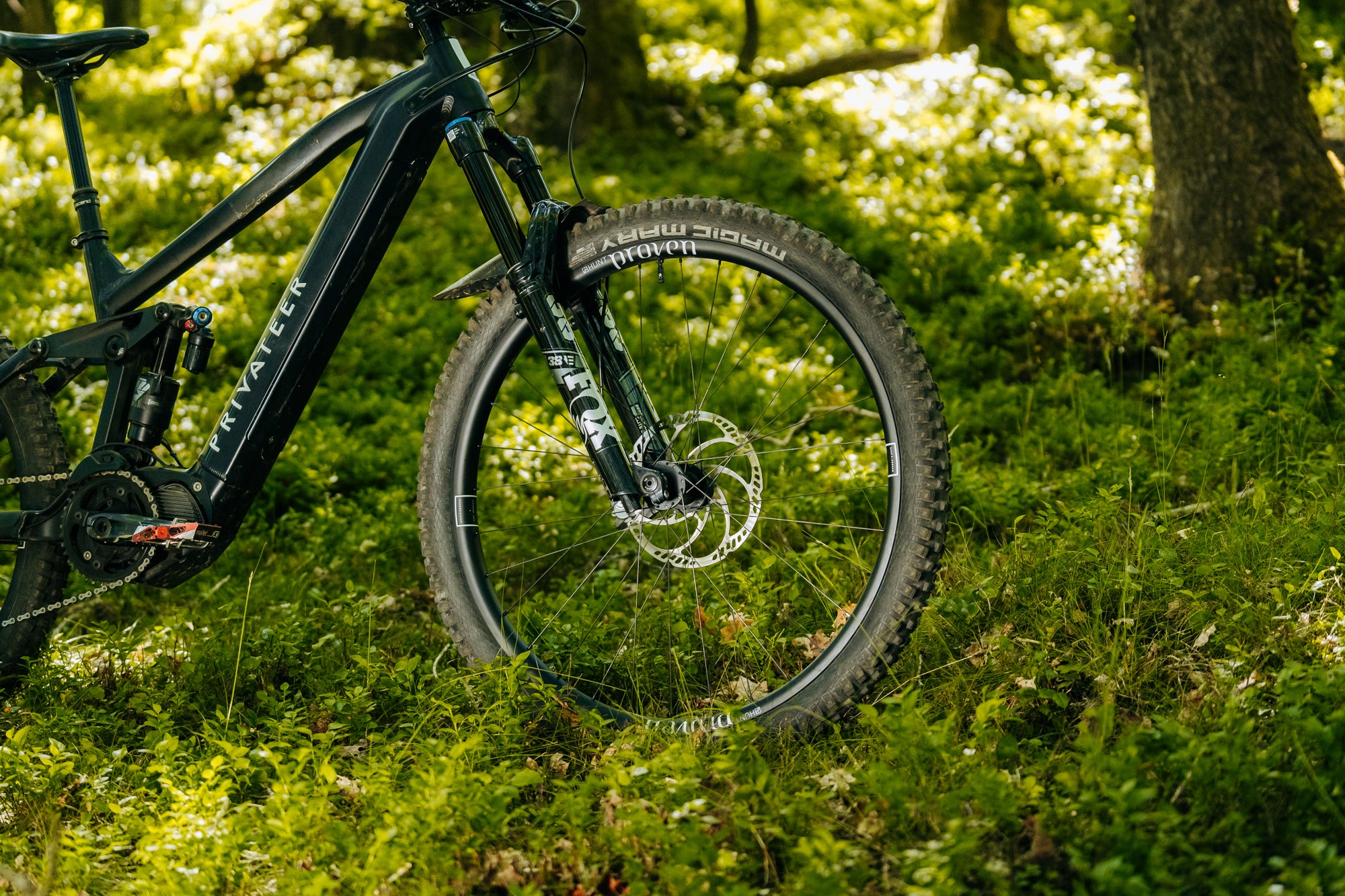

<h1>Dream Build</h1><i>Fergus Ryan on his Privateer E161</i>

The Purpose _

Engineered alongside our Proven Carbon Race Enduro wheelset in West Sussex, UK, Proven Carbon Race E_Enduro is built to withstand the high-power world of EMTB riding and racing. Charged with building an enduro-capable carbon wheelset for full-power electric bikes, high-torque motors and long-range winch and plummet rides, our engineers developed a completely unique carbon layup and construction to offer unparalleled strength while retaining comfort and stability.

Tested in-house at our facilities in the UK and ridden to the extreme by HUNT Enduro Racer Fergus Ryan and Darkfest rider Daryl Brown, we're amped to bring you Proven Race E_Enduro!

The Proven carbon range of performance mountain bike wheels are all tuned to offer the best balance of comfort and stability for their intended purpose. Proven Carbon Race E_Enduro required an entire rethink of carbon construction methods, resin choices and precision reinforcement to provide front wheel compliance while retaining rear wheel stability on powerful electric mountain bikes.

To cope with the added torque and weight of an EMTB, Proven Race E_Enduro wheelsets also feature an increased spoke count, 32 front, 36 rear, larger guage Pillar PSR 2018 triple butted spokes and our EMTB-specific and highly durable, PhaseEngage steel freehub system with a larger 42t ratchet ring.

Full Specs _

Rims
30mm internal rim width, 37.2mm external and 23mm depth Front and rear-specific carbon construction, built for front-wheel compliance and rear-wheel strength. Reinforced construction for the rigours of EMTB riding. Tubeless-ready – designed to work excellently with tubeless tyres. Tubeless-rim tape and valves included. H-lock bead-seat up-kicks for easy and secure tubeless installation. Available in 29in, 27.5in and Mullet configurations.
  • 30mm internal rim width, 37.2mm external and 23mm depth
  • Front and rear-specific carbon construction, built for front-wheel compliance and rear-wheel strength. Reinforced construction for the rigours of EMTB riding.
  • Tubeless-ready – designed to work excellently with tubeless tyres. Tubeless-rim tape and valves included.
  • H-lock bead-seat up-kicks for easy and secure tubeless installation.
  • Available in 29in, 27.5in and Mullet configurations.
Spokes
J-bend cold drawn. 32F/36R spoke count. Heavy-duty front and rear Pillar PST 2018 spokes with a larger 1.8mm central diameter. 3 Cross Construction Black stainless treatment.
  • J-bend cold drawn.
  • 32F/36R spoke count.
  • Heavy-duty front and rear Pillar PST 2018 spokes with a larger 1.8mm central diameter.
  • 3 Cross Construction
  • Black stainless treatment.
Nipples
Durable, long-lasting brass nipples. 16mm length. 14 gauge. Black finish.
  • Durable, long-lasting brass nipples.
  • 16mm length.
  • 14 gauge.
  • Black finish.
Front Hub
Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 110x15mm spacing. Rock Shox Torque Caps for Boost option available - request in notes at checkout. 7075-T6 aluminium alloy axles. 6 bolt disc mount. Sandblasted anodised black finish with laser graphics
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 110x15mm spacing. Rock Shox Torque Caps for Boost option available - request in notes at checkout.
  • 7075-T6 aluminium alloy axles.
  • 6 bolt disc mount.
  • Sandblasted anodised black finish with laser graphics
Rear Hub
Forged and CNC’d 7075-T6 heat treated aluminium alloy Hub body. New PhaseEngage 8-degree engagement 6-pawl mechanism, engineered for EMTB applications. Larger 42t ratchet ring. 148x12mm spacing (boost) 6 bolt disc mount All freehub standards accounted for. Sandblasted anodised gunmetal finish with laser graphics.
  • Forged and CNC’d 7075-T6 heat treated aluminium alloy Hub body.
  • New PhaseEngage 8-degree engagement 6-pawl mechanism, engineered for EMTB applications.
  • Larger 42t ratchet ring.
  • 148x12mm spacing (boost)
  • 6 bolt disc mount
  • All freehub standards accounted for.
  • Sandblasted anodised gunmetal finish with laser graphics.
Bearings
Super smooth precision REVO bearings. Dual full-contact seals. Cartridge design for convenient servicing.
  • Super smooth precision REVO bearings.
  • Dual full-contact seals.
  • Cartridge design for convenient servicing.

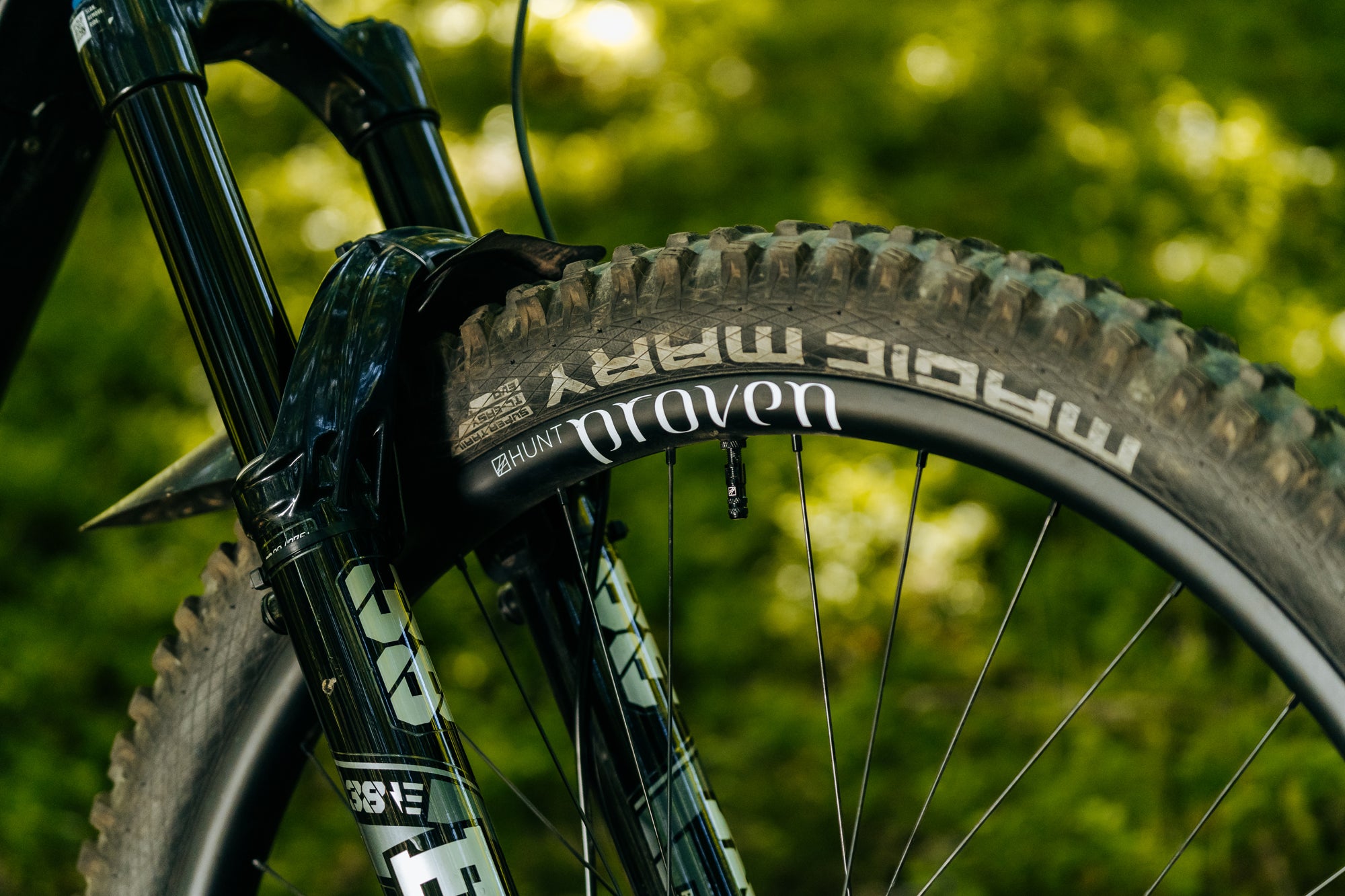

Tyres Info
HUNT recommends a 2.35"-2.6" tyre for best performance, tyre widths between 1.9" and 2.8" are also safe to use.   Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  Only use tyres marked as compatible with hookless (TSS) rims.  You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 2.35"-2.6" tyre for best performance, tyre widths between 1.9" and 2.8" are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • Only use tyres marked as compatible with hookless (TSS) rims.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
Boost - 148x12mm with 110x15mm (Front). Rock Shox Torque Caps available - request in notes at checkout. SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible.
  • Boost - 148x12mm with 110x15mm (Front). Rock Shox Torque Caps available - request in notes at checkout.
  • SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible.

HIGH SPECIFICATION COMPONENTS _

Rims

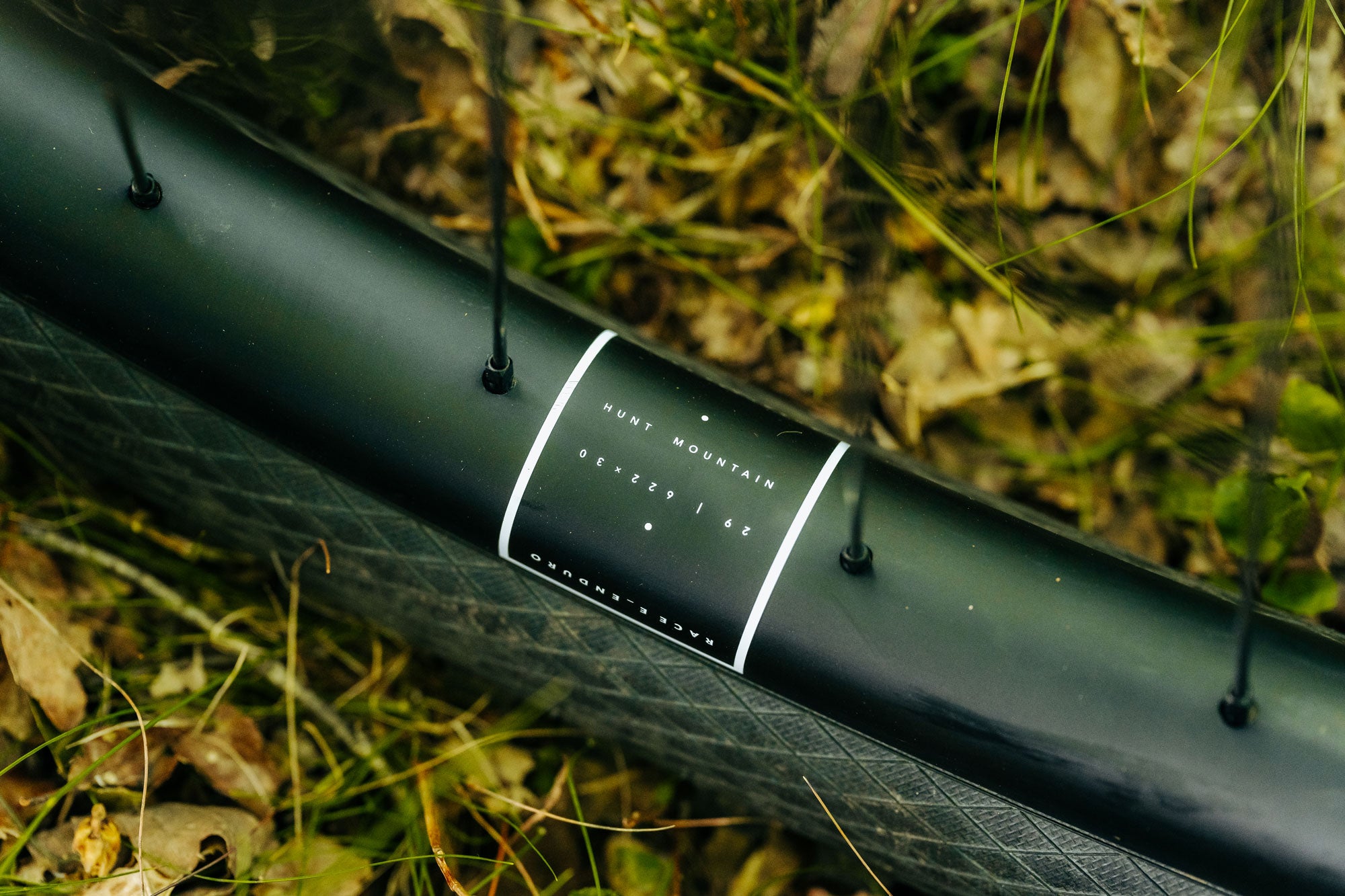

Proven Carbon Race E_Enduro uses a modern rim profile with 30mm internal width and 26mm depth and is constructed to handle the rigours of aggressive EMTB riding with a unique carbon layup that reinforces all the key high-stress areas without adding unnecessary weight.

Spokes

Spoke guages have been increased front and rear using high-quality Pillar PSR 2018 triple butted spokes. The benefit being a larger central guage of 1.8mm making these stainless steel spokes incredibly strong.

PhaseEngage Hub

Proven Carbon Race E_Enduro benefits from our EMTB specific, PhaseEngage 6x1 pawl freehub. Manufactured from steel, this 8-degree engagement freehub is built to handle the higher torque loads that modern electric mountain bikes are capable of producing.

Spoke Count

Spoke count boosted to 36 on the rear and 32 on the front for Proven Carbon Race E_enduro, and each wheel is hand laced in a resilient 3x pattern. More spokes allow for better transmission of torque and the ability to handle higher loads in demanding situations.

Bearings

Our precision CNC hubs house double-sealed Revo bearings providing long service intervals. In addition, the free-spinning bearings maintain low levels of friction for an ultra-efficient ride and long life.

What's in the box _

  • Black Shield PET high tensile strength tubeless tape fitted to wheels.
  • Freehub fitted
  • 45mm Tubeless Valves

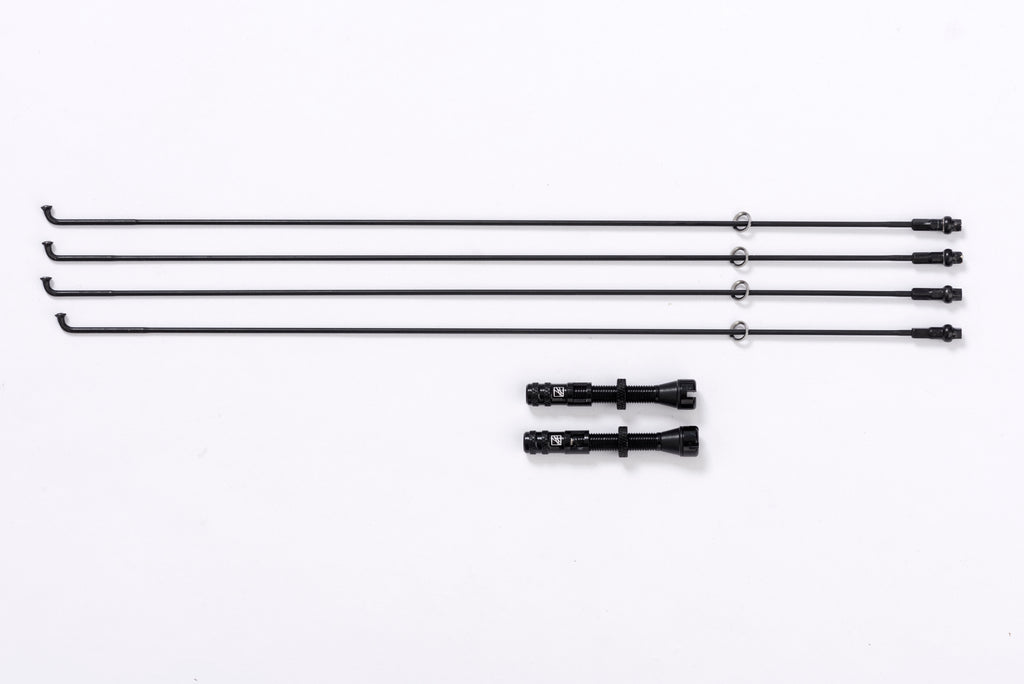

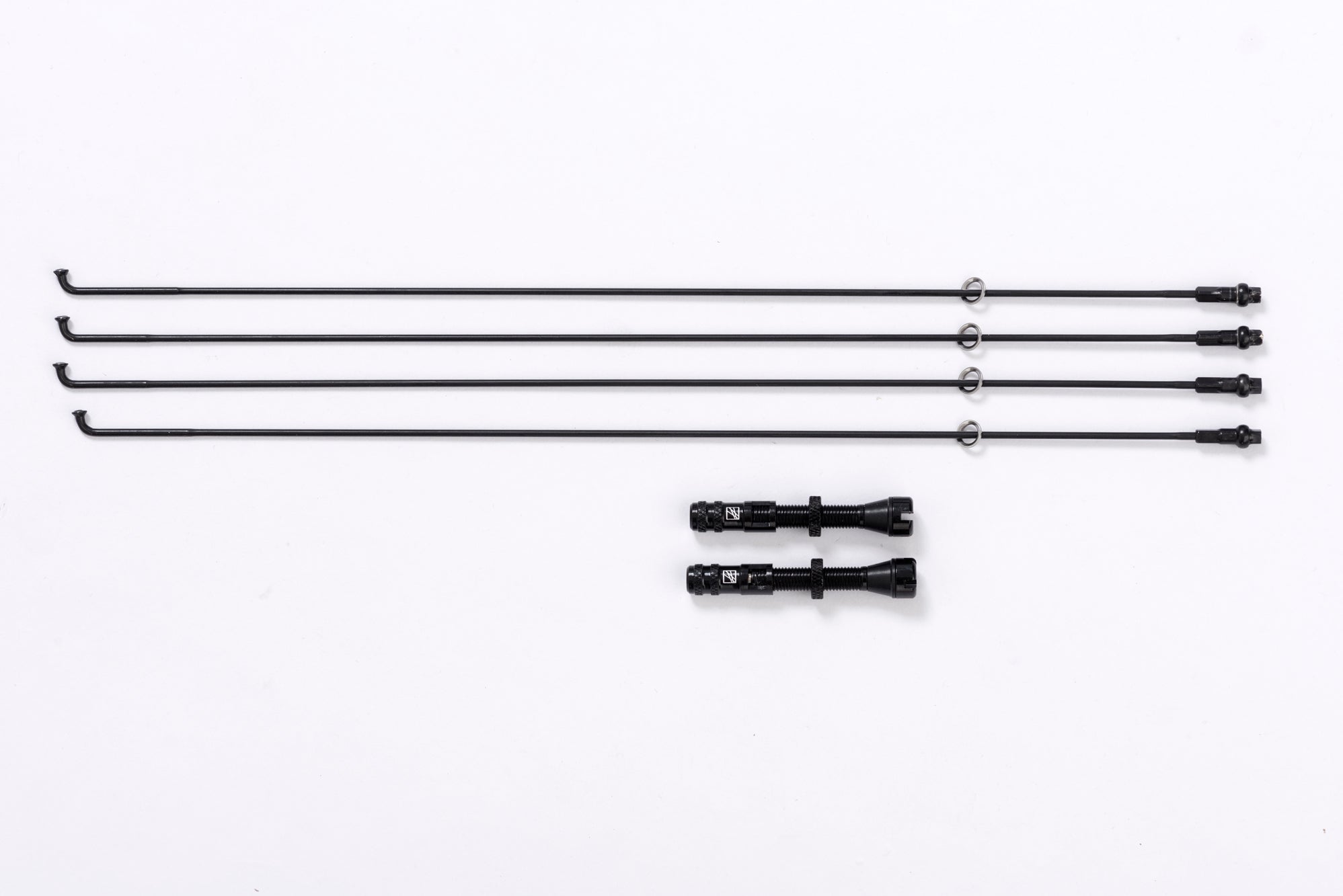

  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

Our riders also bought_

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. Max system weight 135 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 125 kg then an experienced bike mechanic should check the wheel regularly.
