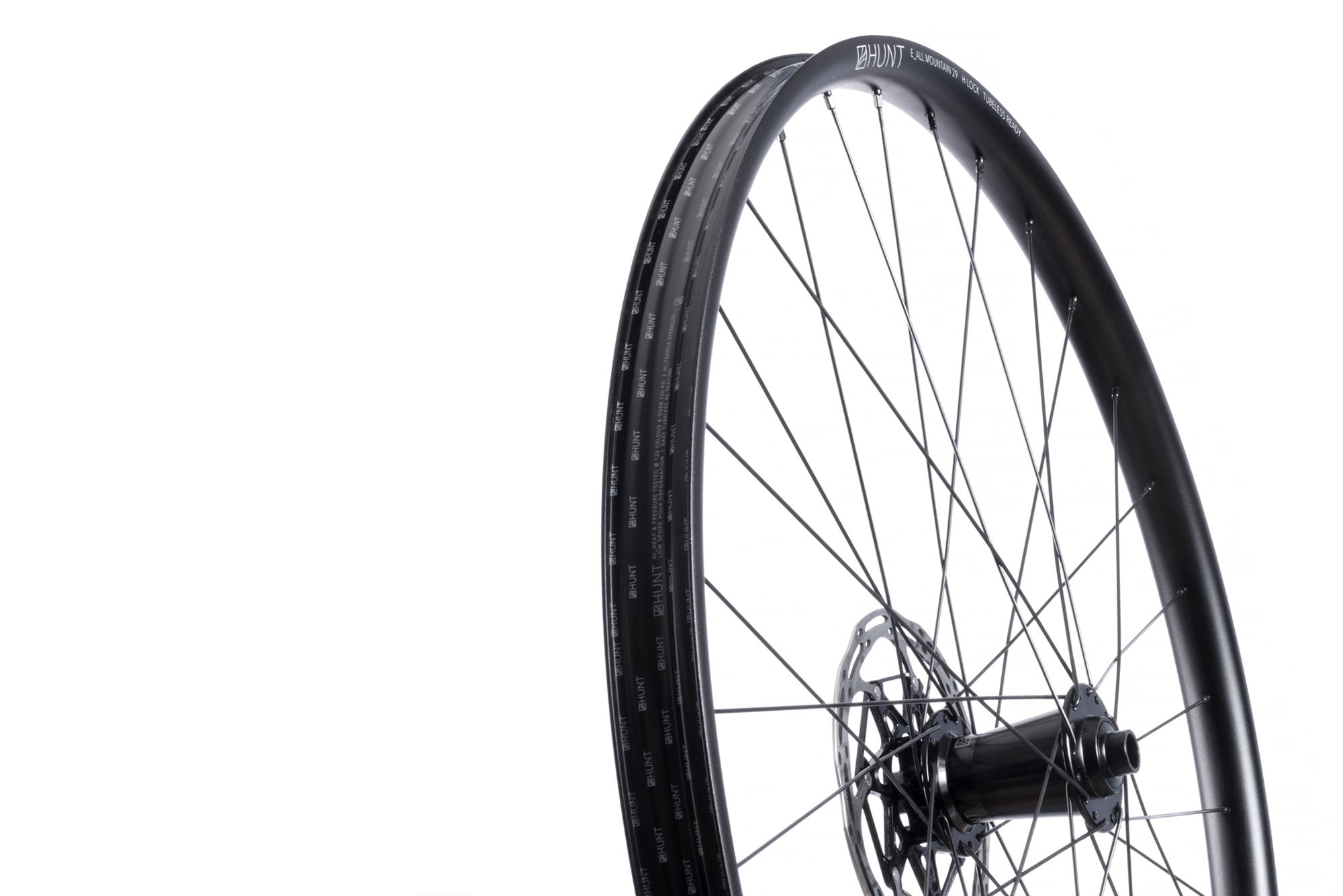

HUNT E_All Mountain 27.5 Wheelset

2143g Width int size
31 mm 27.5"

Engineered for the demands of hard-charging, full-power, and lightweight mid-power E-MTBs.

31mm internally reinforced, FEA-developed alloy rims. Brass nipples and conical steel nipple washers. Triple Butted Pillar PSR 2018 spokes. E-MTB specific PhaseEngage 6x1 freehub system.

Tyre size: Optimized for 2.35" to 2.8" tyres; work well with 2.25" up to 3.0" tyres.

Also available in Mullet and 29"

4.5/5 Star Review

"HUNT has done an excellent job producing a really stable and planted e-MTB wheelset. Even with the weight of a burly e-bike and a big battery loading up into corners, I didn’t feel any indecisiveness or vagueness when wrenching the handlebars through tight bends."
Which freehub do I need?
£399 £549.00
27% off
Limited Stock. Available Now.
27.5" (6-Bolt) / Boost - Limited StockItems are selected to ship from us in the week stated. Delivery time is 1 day*

We will ask for axle info after checkout.

Choose your finance options at checkout:

Order by 3pm for Next Day Delivery (if shown in stock). Allow 1-3 days for tyre-fitting.

Our wheels are in high demand, don't miss out.

More details Right

The Purpose _

The Purpose _

The HUNT E_All Mountain alloy wheelset has been engineered to meet the specific demands of modern E-MTBs ranging from lighter weight, Mid-torque platforms to full-power high-torque models. Manufactured from 6069-T6 extruded alloy with a rugged anodized shot-peened black finish, the HUNT E_All Mountain uses the same tried and tested rim profile as the Enduro Wide V2, boasting internal reinforcement shoulders to support the rim sidewall and protect against hard impacts.

KEY FEATURES_

<h1>Internal Rim Width</h1><i>The wider 31mm internal rim width gives the perfect carcass shape to modern enduro and trail tyres, optimizing braking traction and cornering performance.</i>

Rims

Reinforced rim design to improve durability, 6069 T6 welded construction, 31mm wide (internal), work-hardened shot-peened finish.

<h1>Bearings</h1><i>Our precision CNC hubs house double-sealed Revo bearings providing long service intervals. In addition, the free-spinning bearings maintain low levels of friction for an ultra-efficient ride and long life.</i>

Hubs

Large body HUNT E_Enduro front hub with 8-degree Phase Engage, EMTB specific rear hub. Oversized, double-sealed cartridge bearings. Boost (110/148) spacing only. RockShox Torque Caps for Boost front hubs are also available.

Bearings

Super smooth, replaceable, Revo bearings offer fast rolling performance. Dual full-contact seals and long-lasting, heat-resistant grease protect against water ingress for longer service intervals.

Spokes

32F/32R Spoke Count, Triple Butted, Cold Forged, J-Bend Pillar PSR 2018 spokes for the increased demands of an E-MTB rider.

TECHNOLOGY _

The HUNT E_All Mountain alloy wheelset has been engineered to meet the specific demands of modern E-MTBs ranging from lighter weight, Mid-torque platforms to full-power high-torque models. Manufactured from 6069-T6 extruded alloy with a rugged anodized shot-peened black finish, the HUNT E_All Mountain uses the same tried and tested rim profile as the Enduro Wide V2, boasting internal reinforcement shoulders to support the rim sidewall and protect against hard impacts.

Through FEA analysis, our engineers have added internal reinforcement to the profile of both front and rear rims, boosting the overall durability and ability to shrug off hard landings and impacts.

Full Specs _

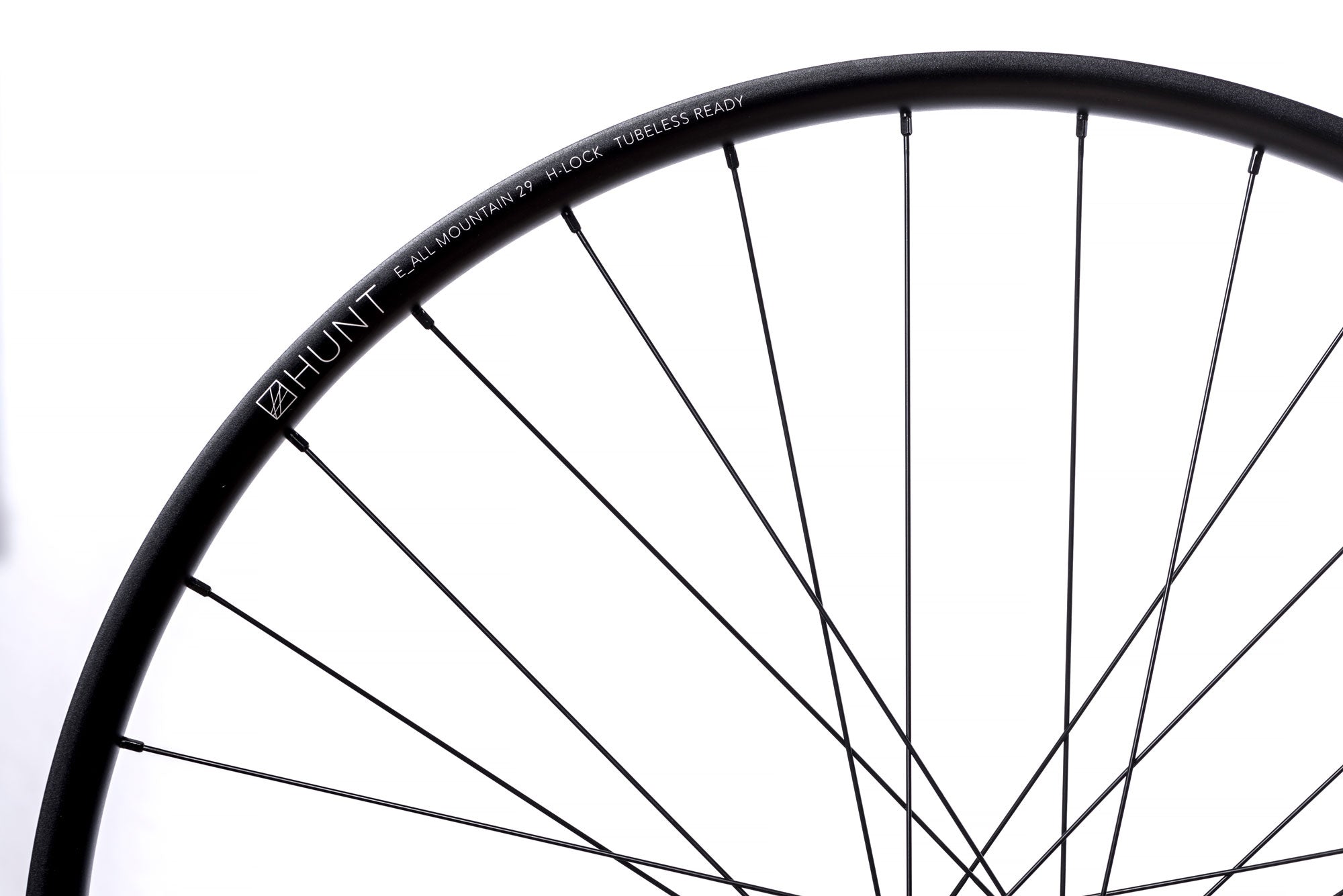

Rims
31mm internal width. Internally reinforced design, optimised through an extensive FEA (Finite Element Analysis) process. 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6). Tubeless-ready – designed to work excellently with tubeless tyres. Tubeless-rim tape and valves included. H_LOCK bead-seat up-kicks, for easy and secure tubeless installation Matt black work-hardened shot-peened finish with laser-etched graphics for superior durability.
  • 31mm internal width.
  • Internally reinforced design, optimised through an extensive FEA (Finite Element Analysis) process.
  • 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6).
  • Tubeless-ready – designed to work excellently with tubeless tyres. Tubeless-rim tape and valves included.
  • H_LOCK bead-seat up-kicks, for easy and secure tubeless installation
  • Matt black work-hardened shot-peened finish with laser-etched graphics for superior durability.
Spokes
J-bend, cold drawn stainless steel. 32F/32R spoke count. High-specification Pillar PSR 2018 spokes. Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement) Black stainless treatment
  • J-bend, cold drawn stainless steel.
  • 32F/32R spoke count.
  • High-specification Pillar PSR 2018 spokes.
  • Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement)
  • Black stainless treatment
Nipples
16mm length with washer for a strong connection to the spoke added durability 14 gauge Durable Brass nipples
  • 16mm length with washer for a strong connection to the spoke added durability
  • 14 gauge
  • Durable Brass nipples

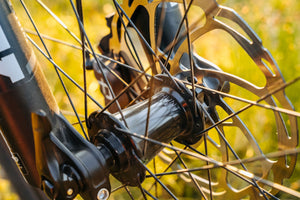

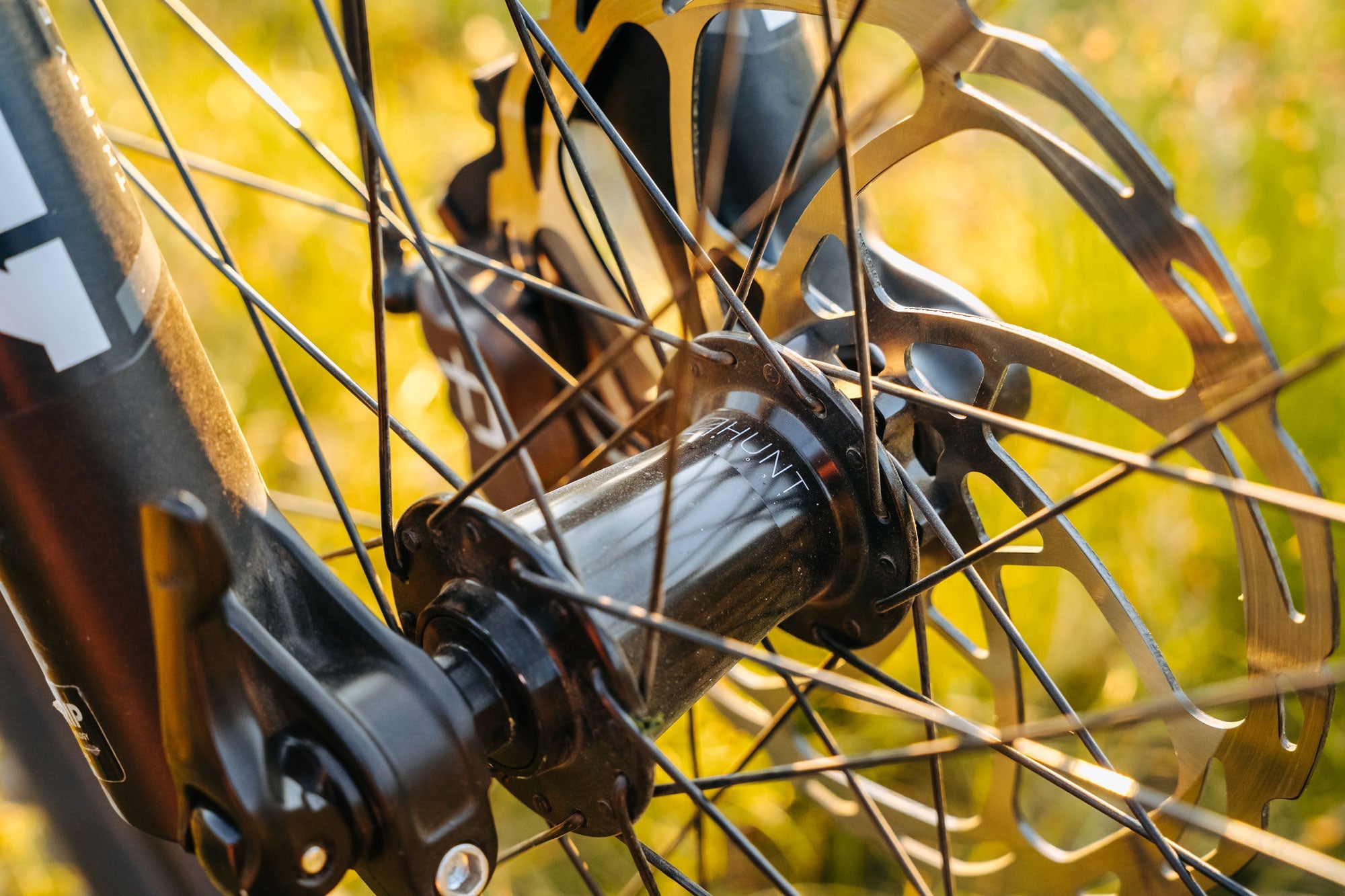

Front Hub
Oversized hub and axles. Forged and CNC’d 7075-T6 heat treated aluminium alloy body. 110x15mm spacing. Rock Shox Torque Caps for Boost option available - just add a comment in the notes section on the cart page. Oversized 17mm 7075-T6 aluminium alloy axles. 6 bolt disc mount. Polished anodized black finish with laser graphics.
  • Oversized hub and axles.
  • Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
  • 110x15mm spacing. Rock Shox Torque Caps for Boost option available - just add a comment in the notes section on the cart page.
  • Oversized 17mm 7075-T6 aluminium alloy axles.
  • 6 bolt disc mount.
  • Polished anodized black finish with laser graphics.
Rear Hub
Forged and CNC’d 7075-T6 heat-treated aluminium alloy Hub body. E-MTB specific PhaseEngage 8 degree, 6x1 freehub for increased resistance to the extra torque generated. Updated 42t ratchet ring. 148x12mm spacing (Boost) 6 bolt disc mount All freehub standards accounted for. Polished anodized black finish with laser graphics.
  • Forged and CNC’d 7075-T6 heat-treated aluminium alloy Hub body.
  • E-MTB specific PhaseEngage 8 degree, 6x1 freehub for increased resistance to the extra torque generated.
  • Updated 42t ratchet ring.
  • 148x12mm spacing (Boost)
  • 6 bolt disc mount
  • All freehub standards accounted for.
  • Polished anodized black finish with laser graphics.
Bearings
Precision sealed cartridge replaceable units. Large diameter ball bearings for extra durability. Dual full-contact rubber seals.
  • Precision sealed cartridge replaceable units.
  • Large diameter ball bearings for extra durability.
  • Dual full-contact rubber seals.
Tyres Info
HUNT recommends a 2.35" to 2.8" tyre for best performance, tyre widths between 2.3" and 3.3" are also safe to use.   Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 2.35" to 2.8" tyre for best performance, tyre widths between 2.3" and 3.3" are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
148x12mm Boost (Rear) and 110x15mm Boost (Front) standard. Rock Shox Torque Caps available - just add a comment in the notes section on the cart page. SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible. *Shimano Microspline & Campagnolo CN3W is only available in 12x142mm
  • 148x12mm Boost (Rear) and 110x15mm Boost (Front) standard. Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
  • SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible.

*Shimano Microspline & Campagnolo CN3W is only available in 12x142mm

HIGH SPECIFICATION COMPONENTS _
Reinforced Rim

Through FEA analysis, our engineers have added internal reinforcement to the profile of both front and rear rims, boosting the overall durability and ability to shrug off hard landings and impacts.
Internal Rim Width

The wider 31mm internal rim width gives the perfect carcass shape to modern enduro and trail tyres, optimizing braking traction and cornering performance.
Spokes

Spoke guages have been increased front and rear using high-specification Pillar PSR 2018 triple butted spokes. The benefit being a larger central guage of 1.8mm making these stainless steel spokes incredibly strong.
Brass Nipples

Hand-laced with high-specification brass nipples and conical nipple washers, offering exceptional strength and long-term durability.

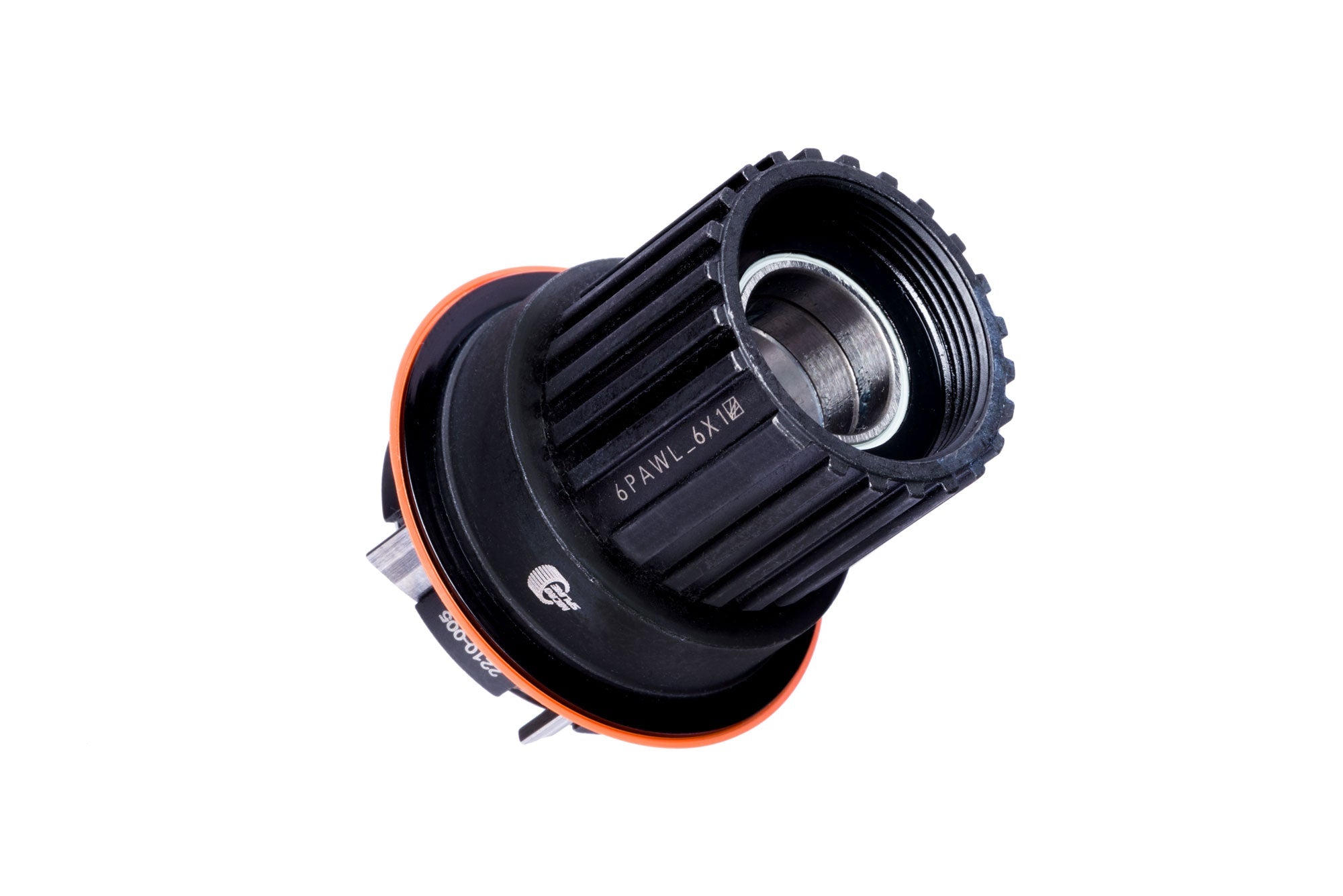

Phase Engage

HUNT E_All Mountain benefits from our E-MTB specific, PhaseEngage 6x1 freehub. Manufactured from steel, this 8-degree engagement freehub is built to handle the higher torque loads that modern electric mountain bikes are capable of producing.
BEARINGS

Our precision CNC hubs house double-sealed Revo bearings providing long service intervals. In addition, the free-spinning bearings maintain low levels of friction for an ultra-efficient ride and long life.
Engineered in the UK

The HUNT E All_Mountain rim and its durable internally reinforced construction were designed, developed and tested at our head office in West Sussex using advanced FEA modelling.

REVIEWS_

Bike Magazine and Websites Expert's Views

4.5/5 Star Review

"HUNT has done an excellent job producing a really stable and planted e-MTB wheelset. Even with the weight of a burly e-bike and a big battery loading up into corners, I didn’t feel any indecisiveness or vagueness when wrenching the handlebars through tight bends."

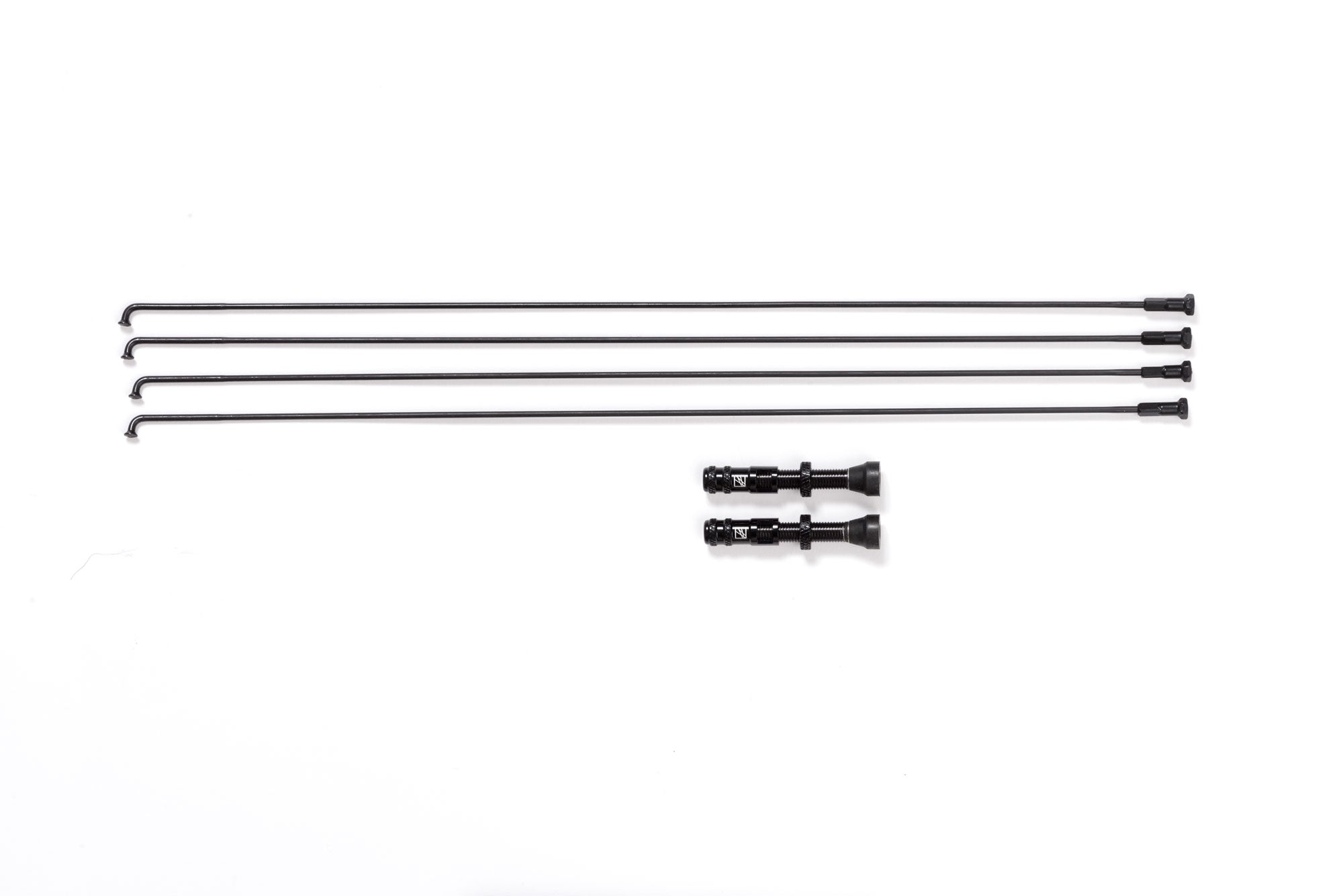

What's in the box _

  • Black Shield PET high tensile strength tubeless tape fitted to wheels
  • Freehub fitted
  • 45mm Tubeless Valves
  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

Our riders also bought_

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 135 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system weight is over 125 kg then an experienced bike mechanic should check the wheel regularly.
