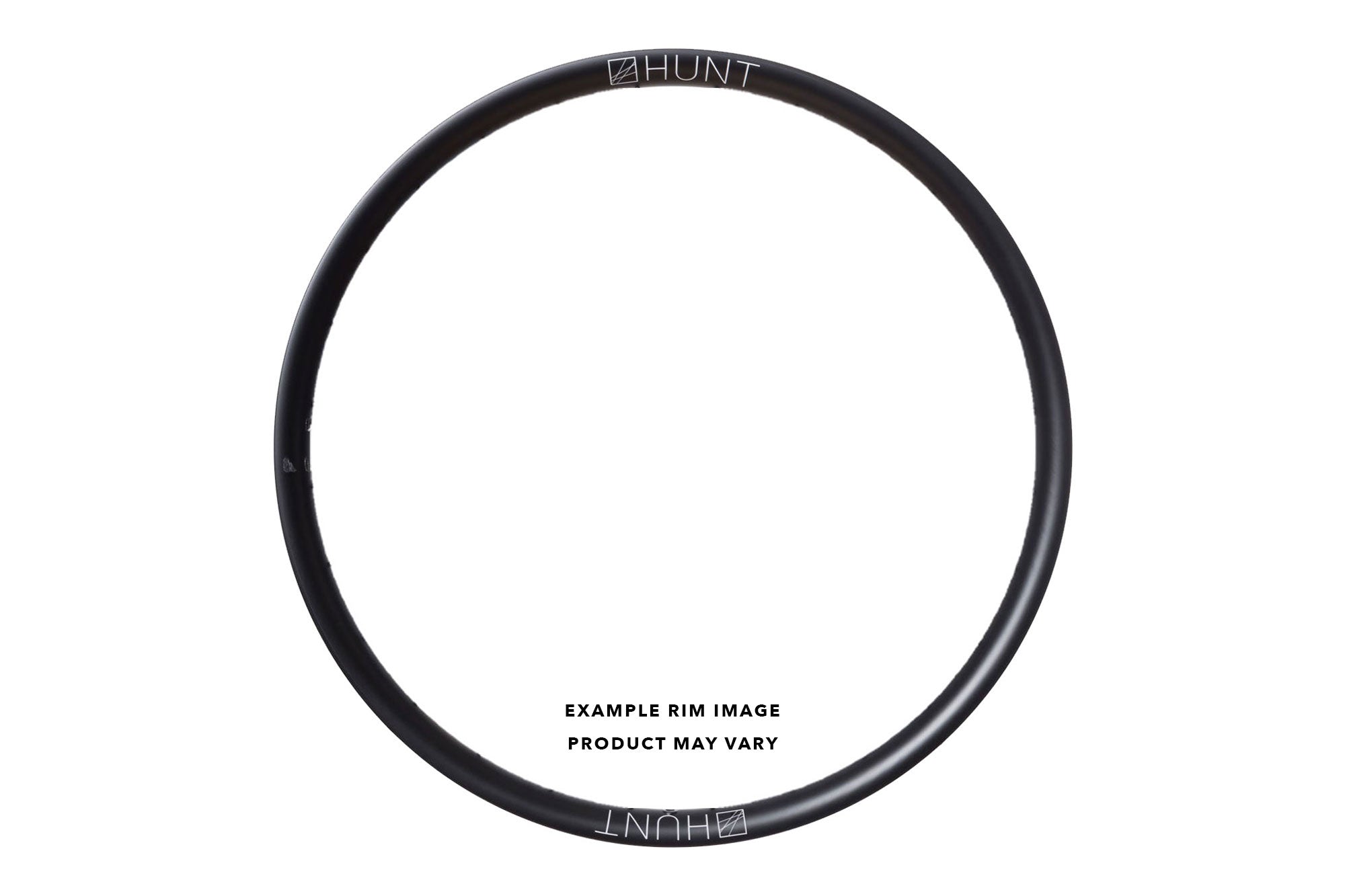

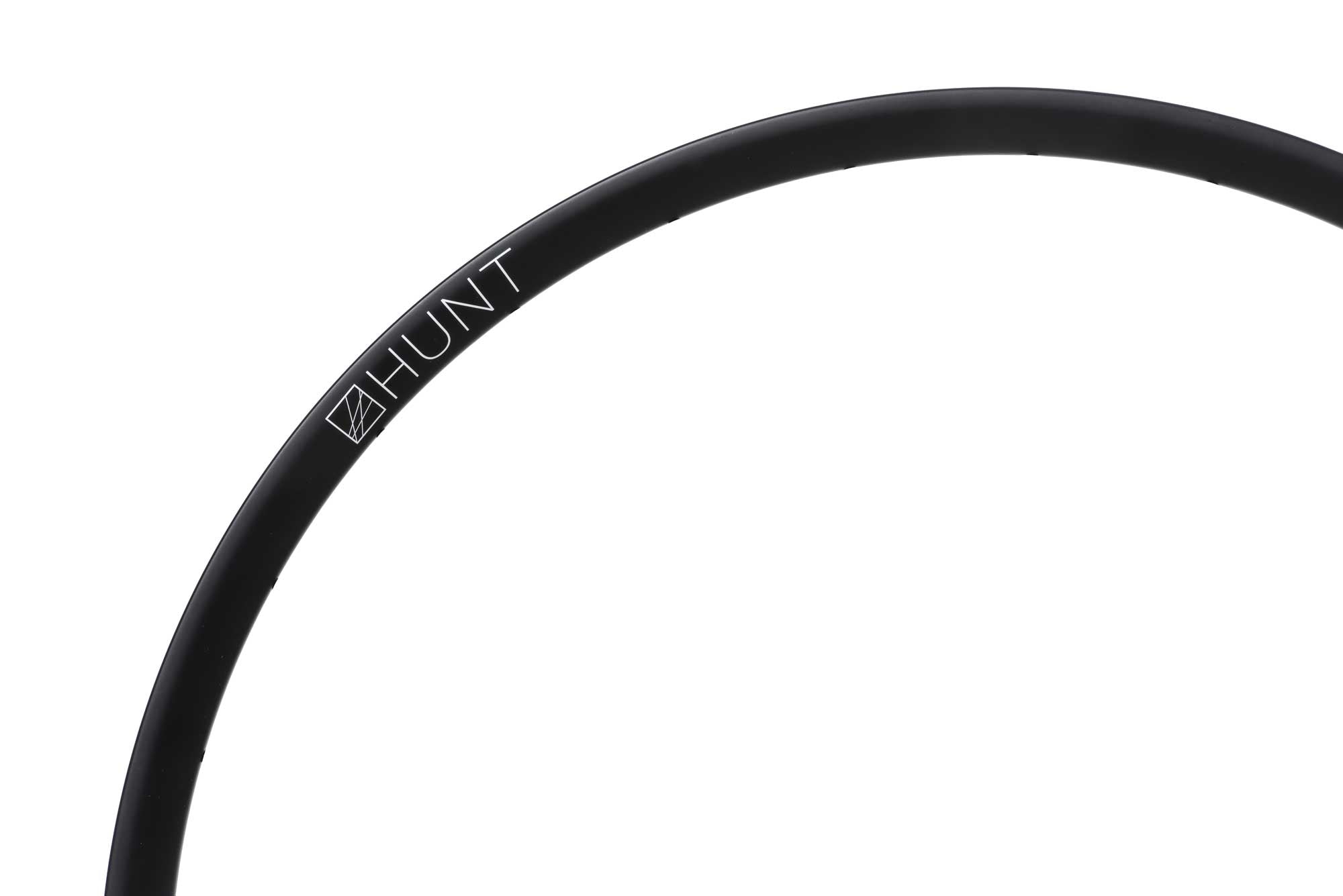

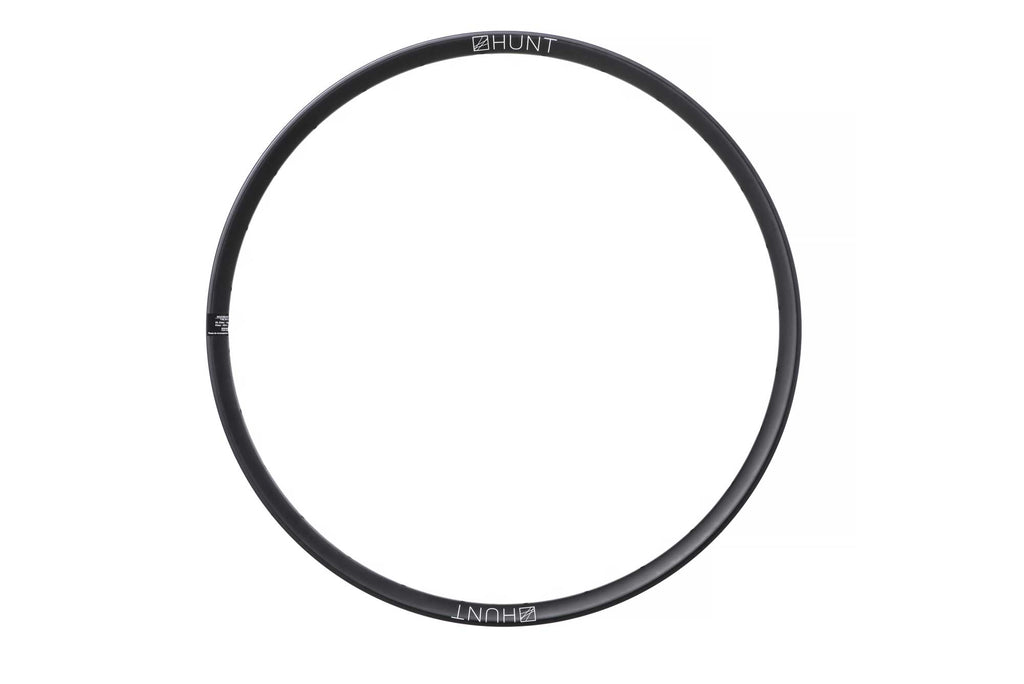

HUNT 650B Adventure Carbon Disc V2 Rim | Front

365g Depth Width ext Width int size
26 mm 33 mm 26 mm 650B / 27.5"

The ultimate 650b weapons. Look no further for ridiculously wide, light, tough 27.5"/650b gravel road/trail rims.

Tyre size: Optimized for 40mm tyres; work well with 35mm up to 65mm.

£379
Limited Stock. Available Now.
Front / 24 - Limited StockItems are selected to ship from us in the week stated. Delivery time is 1 day*
Finance options available at checkout.

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

THE ULTIMATE 650B WEAPONS. LOOK NO FURTHER FOR RIDICULOUSLY WIDE, LIGHT, TOUGH 27.5"/650B GRAVEL ROAD/TRAIL RIMS

26 DEEP | 33 WIDE EXT | 26 WIDE INT | 365G

Disc specific high-performance rim technology that will deliver you to the finish every time. A strong and super-lightweight rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The seriously wide aero-rounded profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim brake-rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on its primary roles of supporting the tyre and spoke forces. The 30 Carbon Gravel Disc specific rim's smooth rounded disc-specific sidewall also looks stunning of course. The rim dimensions are seriously wide at 30mm (24mm internal) which creates a great tyre profile with wider 35-50mm tyres, giving excellent grip and lower rolling resistance.

V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blend in the carbon pre-preg which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

Detailed Specifications

Rim

  • Tubeless-ready – Hookless. Tubeless rim tape offered separately.

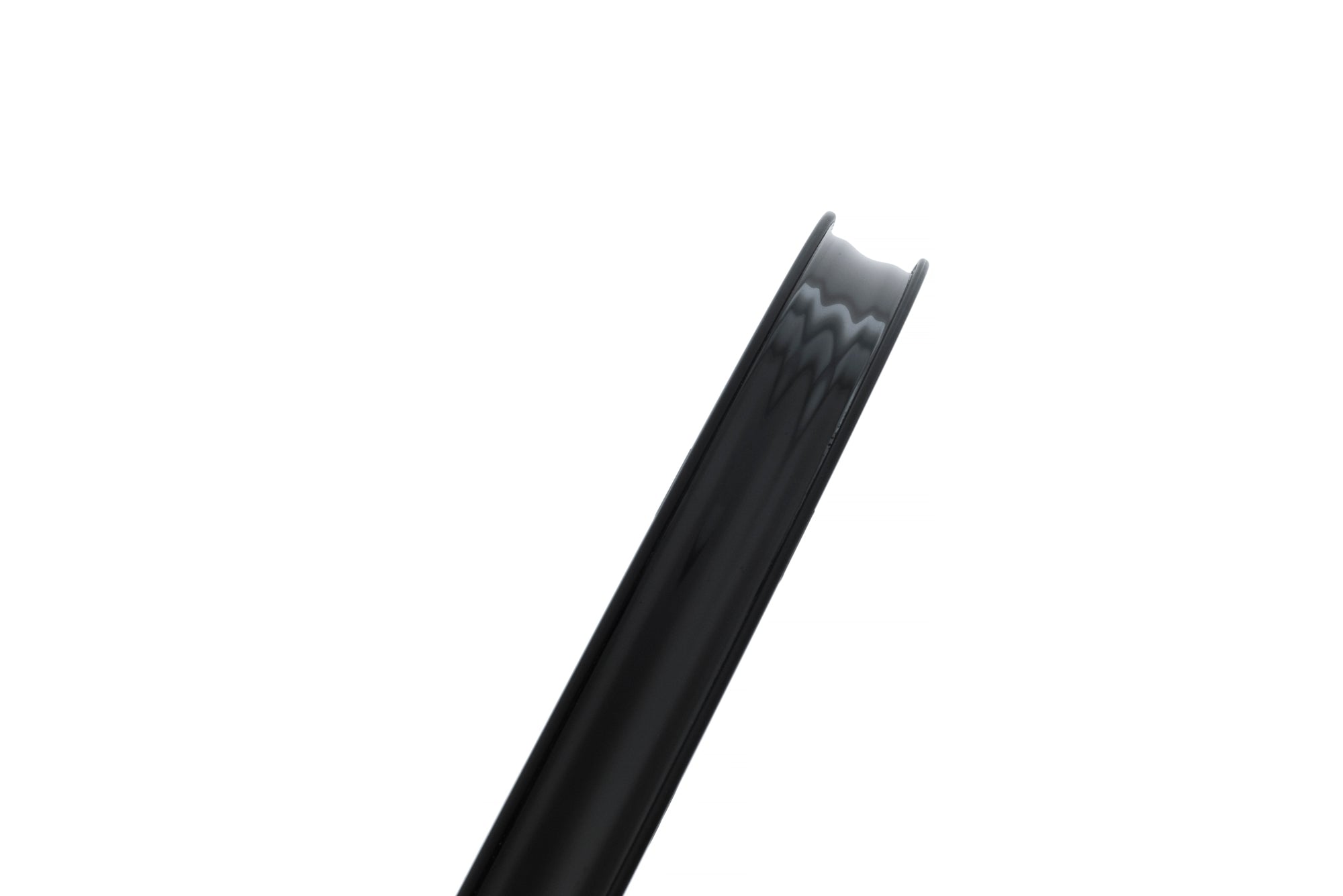

  • Disc-specific Hookless profile
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
  • 33mm outer and 26mm inner width ideal for 35+mm tyre widths
  • 26mm depth
  • Matt black base finished with matt white contrasting graphics.
  • Maximum tyre pressure for this rim is 5 bar / 72.5psi. Please do not exceed this pressure or the maximum pressure stated on your tyre, whichever is lowest. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams. Please do not exceed the maximum pressure stated on your tyre
  • ERD 556mm
  • Lacing:
    • Front - Cross 2
    • Rear - Cross 2
  • Recommended Spoke Tension:
    • Front/Rear - 115-130 kgf
