HUNT 4 Season Aero V2 Rim | Front
HUNT 4 Season Aero V2 Rim | Front
HUNT 4 Season Aero V2 Rim | Front
<h1>Rims</h1><i>High-performance technology that will deliver you to the finish every time, especially those all important rain-soaked sign post finishes with your mates on a long training ride. A strong and lightweight 6061-T6 heat-treated sleeved rim features a semi-aero rounded profile 28mm deep and wide at 24mm (19mm internal) for a great tyre profile with wider 25-45mm tyres, giving excellent grip and lower rolling resistance.</i>
<h1>Rim Bed</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures or riding off-road.</i>

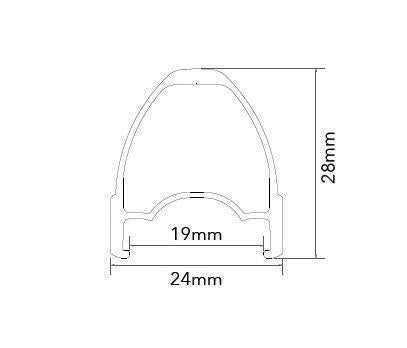

<h1>Rim Profile</h1>
HUNT 4 Season Aero V2 Rim | Front
<h1>Rims</h1><i>High-performance technology that will deliver you to the finish every time, especially those all important rain-soaked sign post finishes with your mates on a long training ride. A strong and lightweight 6061-T6 heat-treated sleeved rim features a semi-aero rounded profile 28mm deep and wide at 24mm (19mm internal) for a great tyre profile with wider 25-45mm tyres, giving excellent grip and lower rolling resistance.</i>
<h1>Rim Bed</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures or riding off-road.</i>
<h1>Rim Profile</h1>

HUNT 4 Season Aero V2 Rim | Front

485g Depth Width ext Width int size
28 mm 24 mm 19 mm 700c

Reliable, fit-and-forget upgrade rim for rim brake riders who put in the miles and demand both durability and responsiveness from their equipment. 6061-T6 alloy, tubeless-ready rims.

Tyre size: Optimized for 25 to 28mm tyres; work well with 23mm up to 40mm.

£129
Limited Stock. Available Now.
Front / 24 - Limited StockItems are selected to ship from us in the week stated. Delivery time is 1 day*
Finance options available at checkout.

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

More details Right

The ‘Hunt’ for a lightweight, wide, highly durable year-round aero road rim.

28 DEEP | 24 WIDE Ext | 19 Wide Int | 485G

High-performance technology that will deliver you to the finish every time, especially those all-important rain-soaked signpost finishes with your mates on a long training ride. A strong and lightweight 6061-T6 heat-treated sleeved rim features a semi-aero rounded profile 28mm deep and wide at 24mm (19mm internal) for a great tyre profile with wider 25-45mm tyres, giving excellent grip and lower rolling resistance.

At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option, but of course, all our tubeless-ready rims are also designed to work perfectly with clincher tyres and inner tubes.

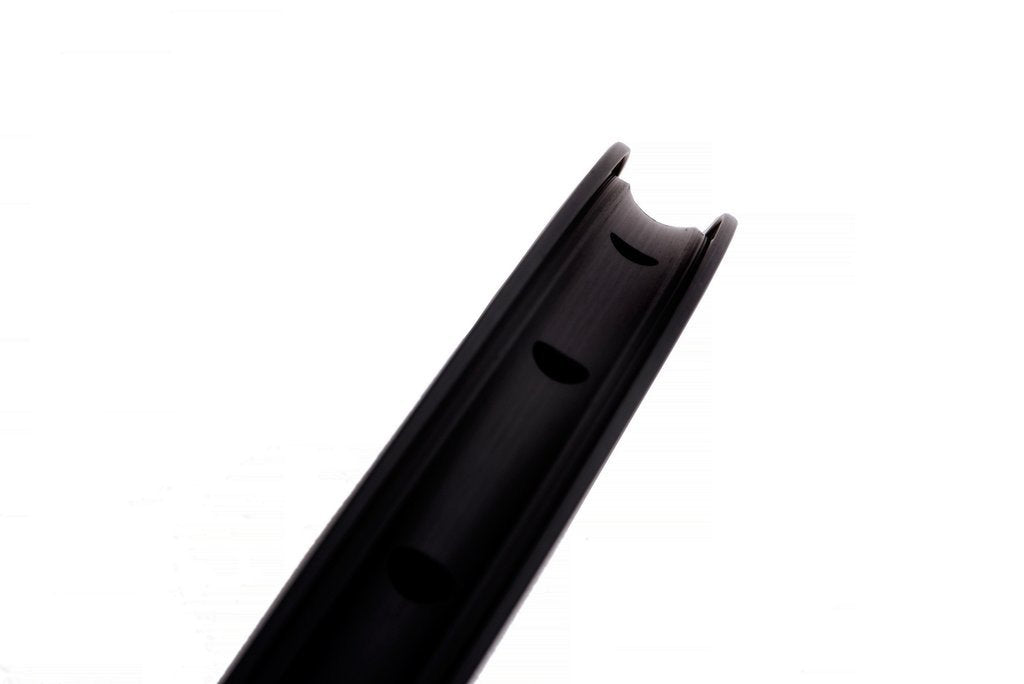

H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures or riding off-road.

Detailed Specifications

Rim

  • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless rim tape offered separately.
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • 6061-T6 heat-treated aluminium alloy.
  • 24mm outer and 19mm inner width ideal for 23-45mm tyre widths
  • 28mm deep rounded aero section
  • Precision machined rim brake track
  • Matt black anodized finish with laser-etched graphics for low weight with excellent durability.
  • Maximum tyre pressure for this rim is 100psi when running the wheel set-up tubeless. 100 psi is more than enough for any rider on road. Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. The maximum pressure of your tyre may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tyre.
  • ERD 589mm
  • Lacing:
    • Front - Radial
    • Rear - Cross 2
  • Recommended spoke tension:
    • Front - 105-120 kgf
    • Rear - 110-125 kgf
