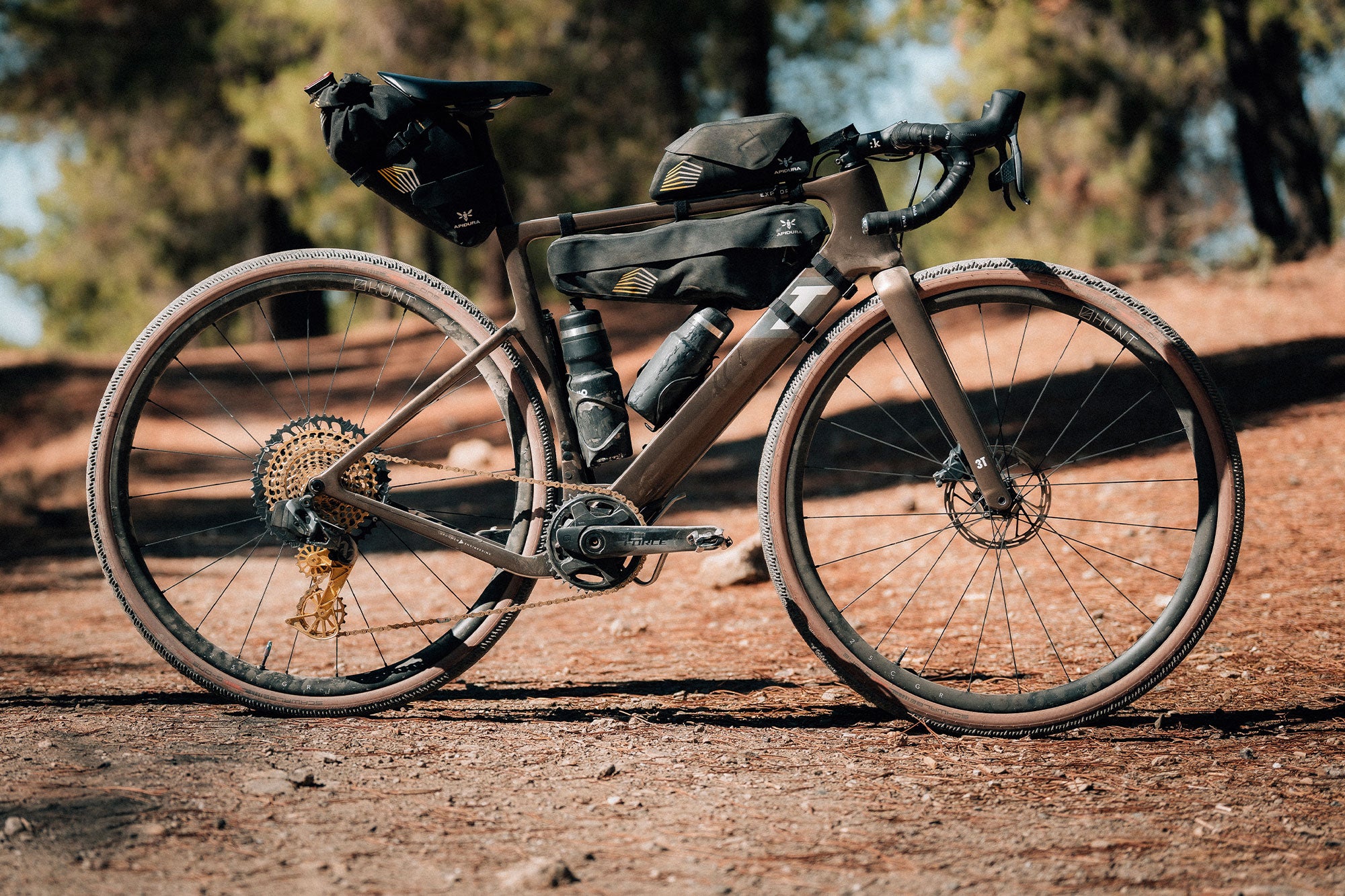

<h1>Badlands winner</h1><i>Cynthia's 3T Exploro</i>
<h1>Rim Profile</h1><i>A strong and super-lightweight asymmetric hookless rim. The rim dimensions are 25mm deep and 33mm wide external (26mm internal). Tubeless for lower weight, rolling resistance, and better puncture protection.</i>
<h1>Freehub Body</h1><i>Featuring 3x treble-tooth pawls and a 48 tooth ratchet ring results in an impressively low 7.5-degree engagement angle, and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which drive a consistent engagement. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage.</i>
<h1>Sprint SL Hubs</h1><i>All-new Sprint SL hubs featuring the same strength and power transfer in a lower weight package, meaning more of your power pushing you forwards. The hub shell is 6066 series alloy, offering a greater strength-to-weight ratio than lower 6000 series alloys. Large 15mm diameter hub axles for climbing and out-of-saddle sprinting responsiveness. Circular dropout interface steps ensure a secure fitment.</i>
<h1>Spokes</h1><i>We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a hex head so you can achieve precise tensioning. Combining these components well is key which is why all HUNT wheels are hand-built.</i>
<h1>Tyre Width Optimisation</h1><i>26mm internal rim profile, featuring a hookless and ETRTO-compliant tubeless rim, designed exclusively for tubeless tyres.</i>
<h1>Bearings</h1><i>The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by EZO Japan.</i>
<h1>Adaptability</h1><i>Our wheels are futureproof. We can adapt your wheels to any current axle standard. You just need to let us know what you require by filling in the simple form on the confirmation page after checkout. Please note these wheels will not work with the older 15mm front road TA standard.</i>
<h1>In the Box</h1><ul><li>Hunt Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>

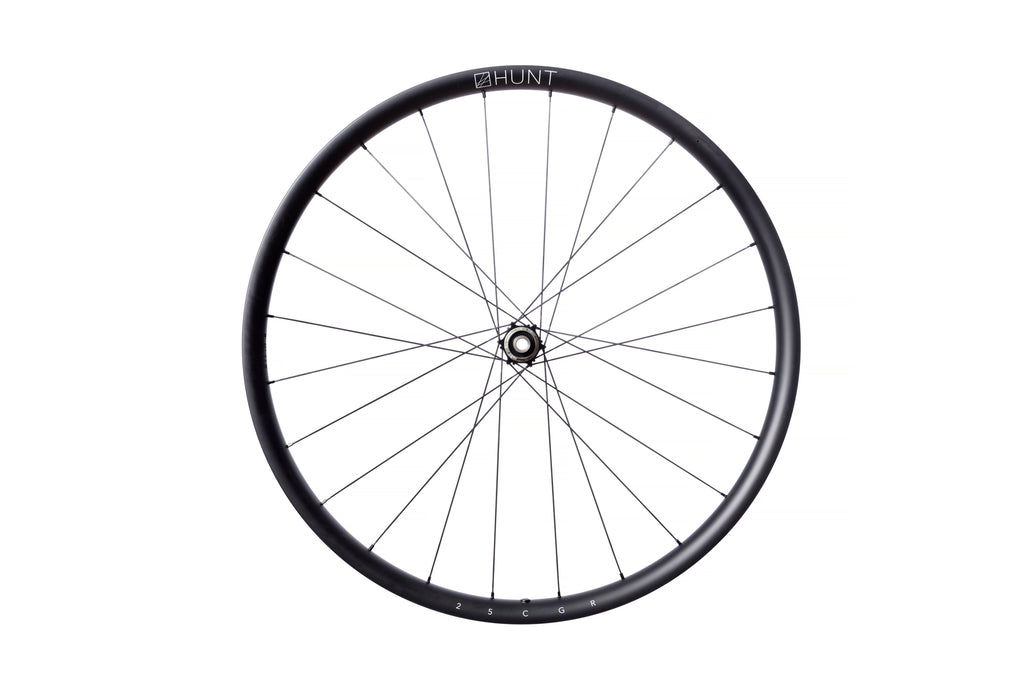

HUNT 25 Carbon Gravel Race Wheelset

1380g Depth Width ext Width int size
25 mm 33 mm 26 mm 700c

A versatile and lightweight hookless gravel wheelset, built to excel on harsh and steep terrain.

The progressive 26mm internal width pairs perfectly with wide, modern gravel tyres. Shallow rim depth profile offers compliance and traction when your gravel route gets steep and techy.

Tyre size: Optimized for 35 to 45mm tyres; work well with 29mm up to 60mm.

More details Right

The Purpose _

The Purpose _

We crafted the new HUNT 25 Carbon Gravel Race wheelset to offer maximum versatility and exceptionally low weight. Laced to our lighter, race-ready Sprint SL hubs, offering rapid 7.5-degree engagement for light and fast gravel riding or racing across technical and varied terrain.

Long-time advocates of tubeless technology for riding on and off road, HUNT’s development into hookless rims began back in 2016. With the 25 Carbon Gravel Disc rim development, we were able to push boundaries of rim weight-saving further, bringing the final rim weights to a mere 385g. As well as having that performance benefit, due to a simpler manufacturing process, hookless rims can be produced with less waste, resulting in a cost reduction which can be passed on to riders.

A wheelset designed to offer control and speed for the fastest gravel rides. Tubeless, ETRTO compliant hookless rims, laced to a reliable, fast-engaging Sprint SL hub for a system ready to face any race day conditions.

KEY FEATURES_

Asymmetric Profile

Durability and control when you need it the most. The asymmetric rim profile on the 25 Carbon Gravel Race has been designed with compliance and impact resistance top of mind so you can worry less.

Hookless/Straight Side-Wall Design

25mm-deep and 33mm-wide external rim profile, featuring a hookless/straight-sidewall and ETRTO-compliant tubeless rim, designed for gravel tubeless tyre compatibility.

Sprint SL Hubs

Sprint SL hubs feature the same strength and power transfer in a lower weight package, meaning more of your power pushing you forwards. The hub shell is 6066 series alloy, offering a greater strength-to-weight ratio than lower 6000 series alloys. Large 15mm diameter hub axles for climbing and out-of-saddle sprinting responsiveness.

Full Specs _

Rims
Disc-specific hookless/straight-sidewall design. 33mm external and 26mm internal. H_LOCK bead-seat up-kicks, for easy and secure tubeless installation. Matt black base finished with matt white contrasting graphics.
  • Disc-specific hookless/straight-sidewall design.
  • 33mm external and 26mm internal.
  • H_LOCK bead-seat up-kicks, for easy and secure tubeless installation.
  • Matt black base finished with matt white contrasting graphics.
Spokes
24 front and 24 rear, laced 2-cross. Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2. Straight-pull, for excellent torsional strength and direct power transfer. Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden Patented Pillar Spoke Re-enforcement (butted again just before the spoke head, providing more durability in high stress area). Black stainless finish.
  • 24 front and 24 rear, laced 2-cross.
  • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
  • Straight-pull, for excellent torsional strength and direct power transfer.
  • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
  • Patented Pillar Spoke Re-enforcement (butted again just before the spoke head, providing more durability in high stress area).
  • Black stainless finish.
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. 16mm length with washer for a strong connection to the spoke added durability. 14 gauge. Black anodized finish.
  • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
  • 16mm length with washer for a strong connection to the spoke added durability.
  • 14 gauge.
  • Black anodized finish.
Front Hub
6066-T6 aluminum alloy axles. Center-lock disc mount. If you require a 6 bolt adapter you can purchase separately here. HUNT SPRINT SL Disc straight-pull super-light alloy. Polished anodized black finish with laser graphics.
  • 6066-T6 aluminum alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adapter you can purchase separately here.
  • HUNT SPRINT SL Disc straight-pull super-light alloy.
  • Polished anodized black finish with laser graphics.
Rear Hub
6066-T6 heat-treated aluminum alloy freehub body. Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the Shimano freehub often seen on standard alloy freehub bodies. 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5-degree engagement and instant acceleration. All freehub standards accounted for. Hunt Race Season Disc straight-pull super-light alloy. Forged and CNC’d 6066-T6 heat treated aluminium alloy body. Center-lock disc mount. If you require a 6 bolt adapter you can purchase separately here. Polished anodized black finish with laser graphics. Intended use: Fast and light gravel riding. For loaded gravel riding and bikepacking, please consider wheelsets featuring HUNT 4 Season hubsets.
  • 6066-T6 heat-treated aluminum alloy freehub body.
  • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the Shimano freehub often seen on standard alloy freehub bodies.
  • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5-degree engagement and instant acceleration.
  • All freehub standards accounted for.
  • Hunt Race Season Disc straight-pull super-light alloy.
  • Forged and CNC’d 6066-T6 heat treated aluminium alloy body.
  • Center-lock disc mount. If you require a 6 bolt adapter you can purchase separately here.
  • Polished anodized black finish with laser graphics.
  • Intended use: Fast and light gravel riding. For loaded gravel riding and bikepacking, please consider wheelsets featuring HUNT 4 Season hubsets.
Bearings
High-grade Japanese EZO bearings. Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings. Incredibly fast rolling.
  • High-grade Japanese EZO bearings.
  • Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.
  • Incredibly fast rolling.
Tyres Info
HUNT recommends a 40mm tyre for best performance, tyre widths between 35mm and 64mm are also safe to use. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower. Only use tyres marked as compatible with hookless (TSS) rims. Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post here about this. Tubeless-ready for lower weight and rolling resistance.
  • HUNT recommends a 40mm tyre for best performance, tyre widths between 35mm and 64mm are also safe to use.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • Only use tyres marked as compatible with hookless (TSS) rims.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post here about this.
  • Tubeless-ready for lower weight and rolling resistance.
Axle Sizes
Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.
  • Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
  • If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

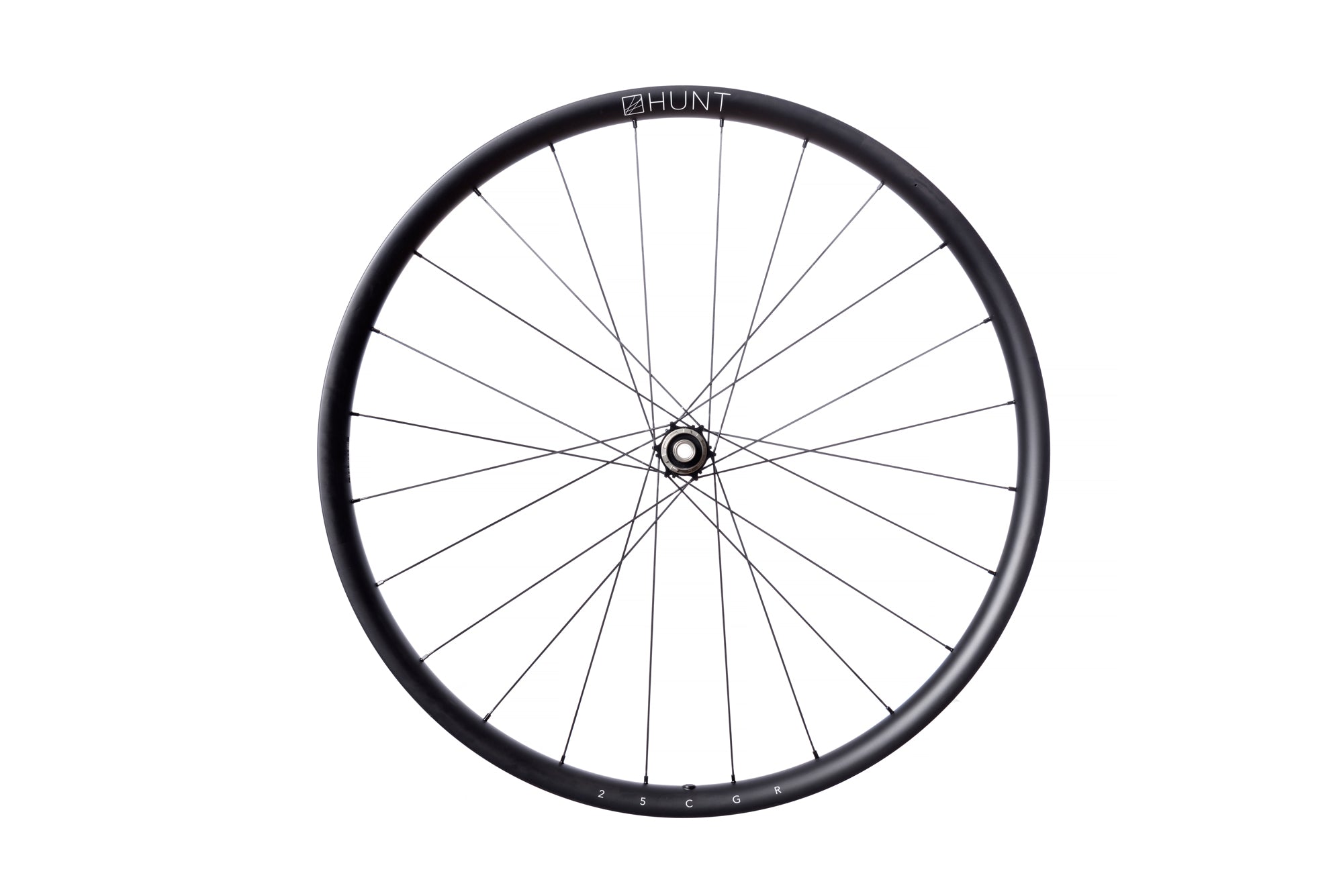

RIM PROFILE

A strong and super-lightweight asymmetric hookless rim. The rim dimensions are 25mm deep and 33mm wide external (26mm internal). Tubeless for lower weight, rolling resistance, and better puncture protection.

<h1>Freehub Body</h1><i>Featuring 3x treble-tooth pawls and a 48 tooth ratchet ring results in an impressively low 7.5-degree engagement angle, and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which drive a consistent engagement. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage.</i>

SPRINT SL HUBS

All-new Sprint SL hubs featuring the same strength and power transfer in a lower weight package, meaning more of your power pushing you forwards. The hub shell is 6066 series alloy, offering a greater strength-to-weight ratio than lower 6000 series alloys. Large 15mm diameter hub axles for climbing and out-of-saddle sprinting responsiveness. Circular dropout interface steps ensure a secure fitment.

Hunt 25 Carbon Gravel Race Wheelset

SPOKES

We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a hex head so you can achieve precise tensioning. Combining these components well is key which is why all HUNT wheels are hand-built.

<h1>Freehub Body</h1><i>Featuring 3x treble-tooth pawls and a 48 tooth ratchet ring results in an impressively low 7.5-degree engagement angle, and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which drive a consistent engagement. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage.</i>

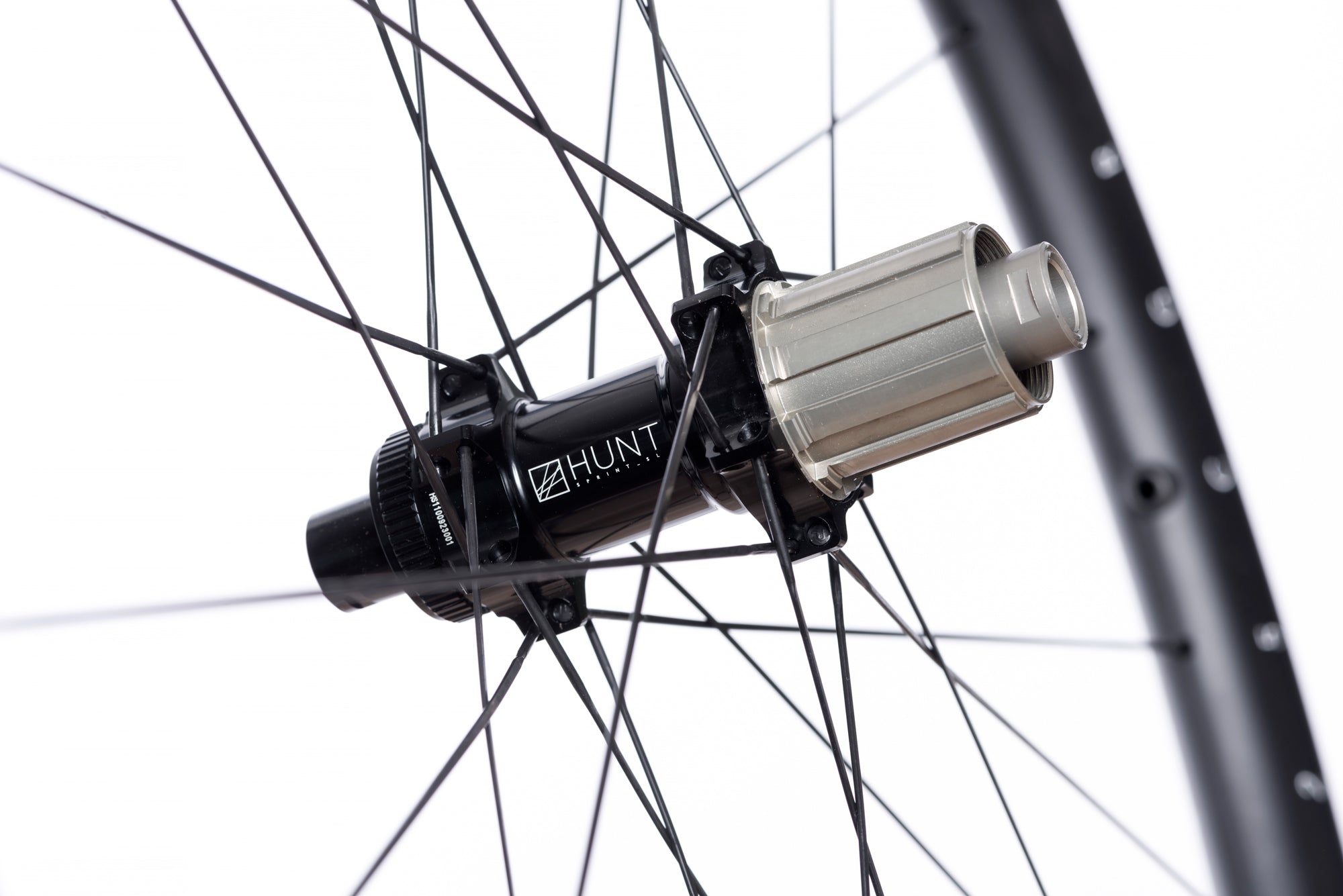

FREEHUB BODY

Featuring 3x treble-tooth pawls and a 48 tooth ratchet ring results in an impressively low 7.5-degree engagement angle, and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which drive a consistent engagement. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage.

<h1>Bearings</h1><i>The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by EZO Japan.</i>

BEARINGS

The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by EZO Japan.

BADLANDS WINNER

HUNT rider Cynthia Frazier rode the 25 Carbon Gravel Race to victory at the wildest gravel race in Europe.

<h1>Tyre Width Optimisation</h1><i>26mm internal rim profile, featuring a hookless and ETRTO-compliant tubeless rim, designed exclusively for tubeless tyres.</i>

TYRE WIDTH OPTIMISATION

26mm internal rim profile, featuring a hookless and ETRTO-compliant tubeless rim, designed exclusively for tubeless tyres.

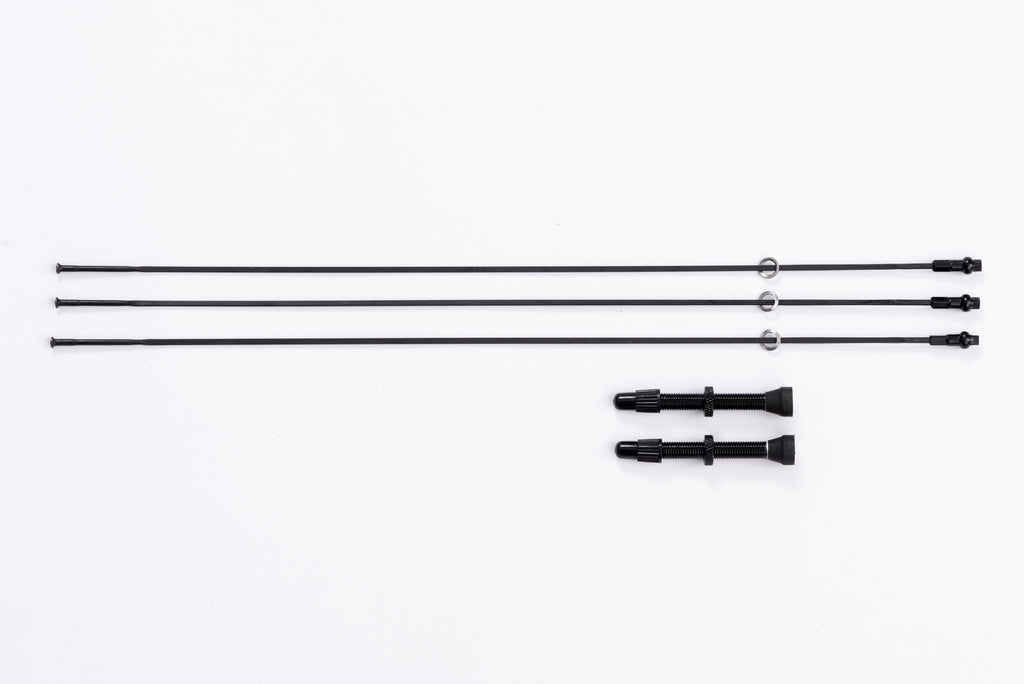

What's in the box _

  • Hunt Black Shield tubeless tape fitted to wheels.

  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.

  • Cassette spacer for 8/9/10 speed.

  • 45mmTubeless ValvesSpare of each spoke plus nipples.

  • Quality control card signed by your wheel builder.

<h1>In the Box</h1><ul><li>HUNT Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Spare spokes with nipples & washers.</li><li>Tubeless Valves</li><li>Quality control card signed by your wheel builder</li></ul>

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 130kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 105kgs then an experienced bike mechanic should check the wheel regularly.
