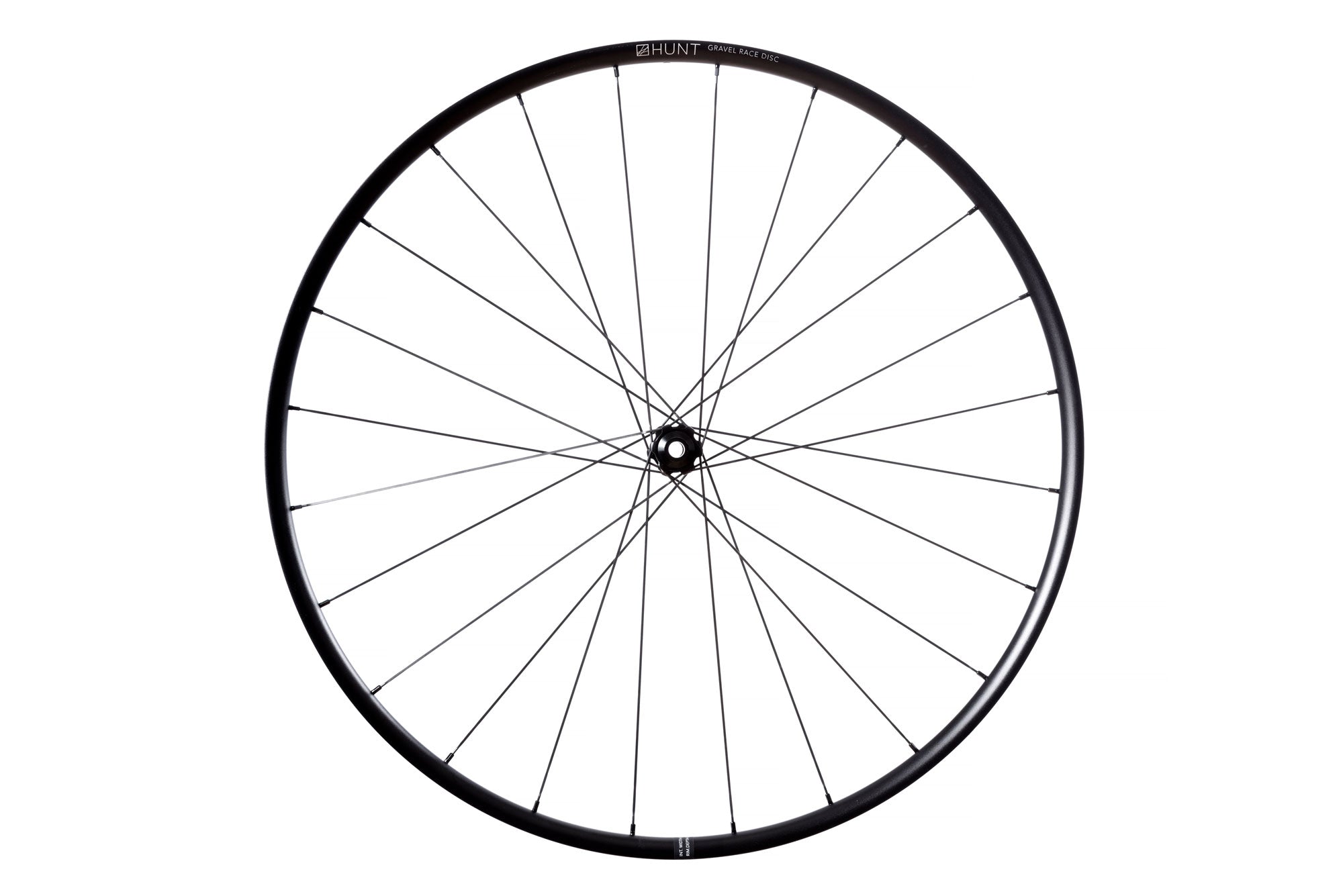

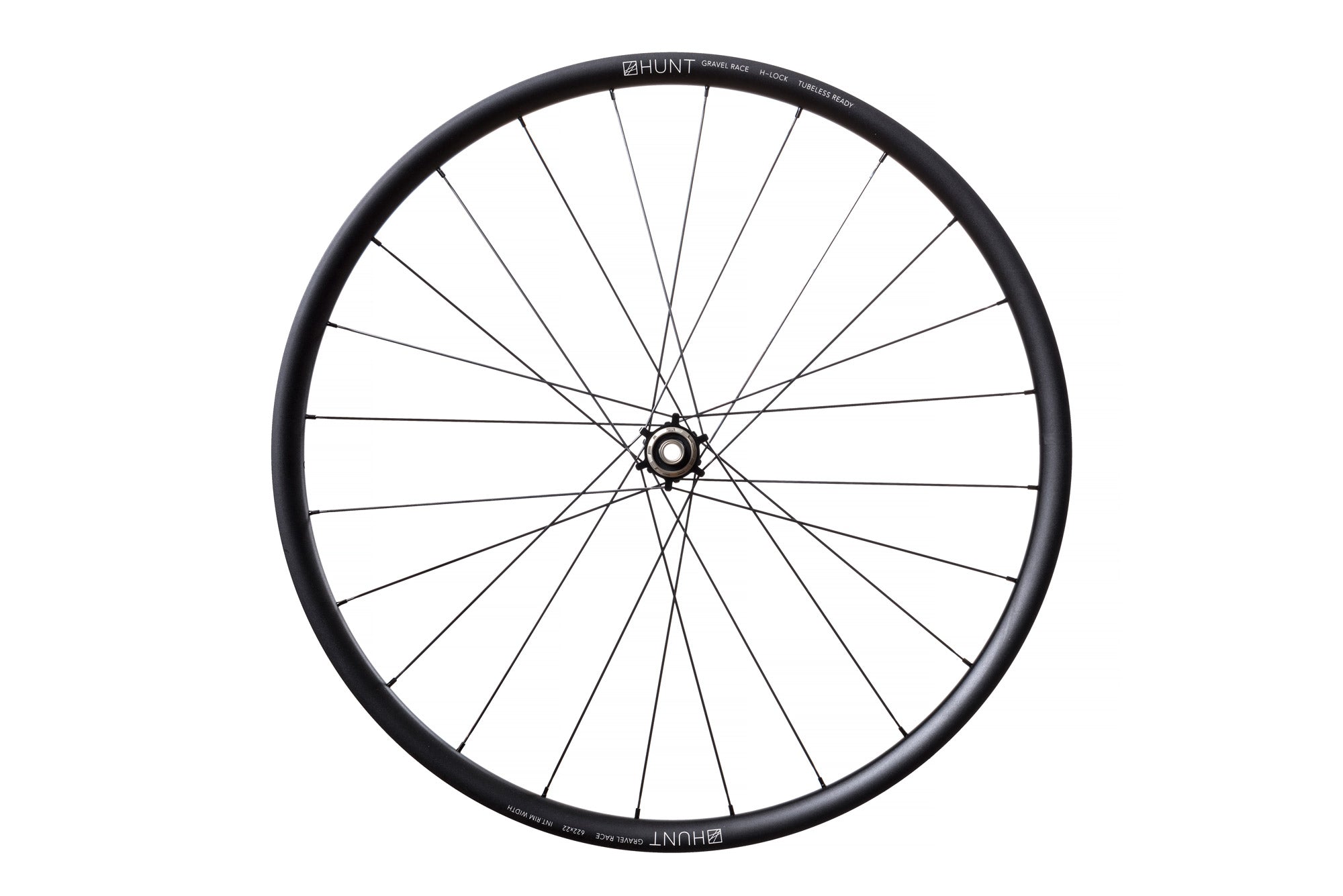

Gravel Race Disc Rear Wheel

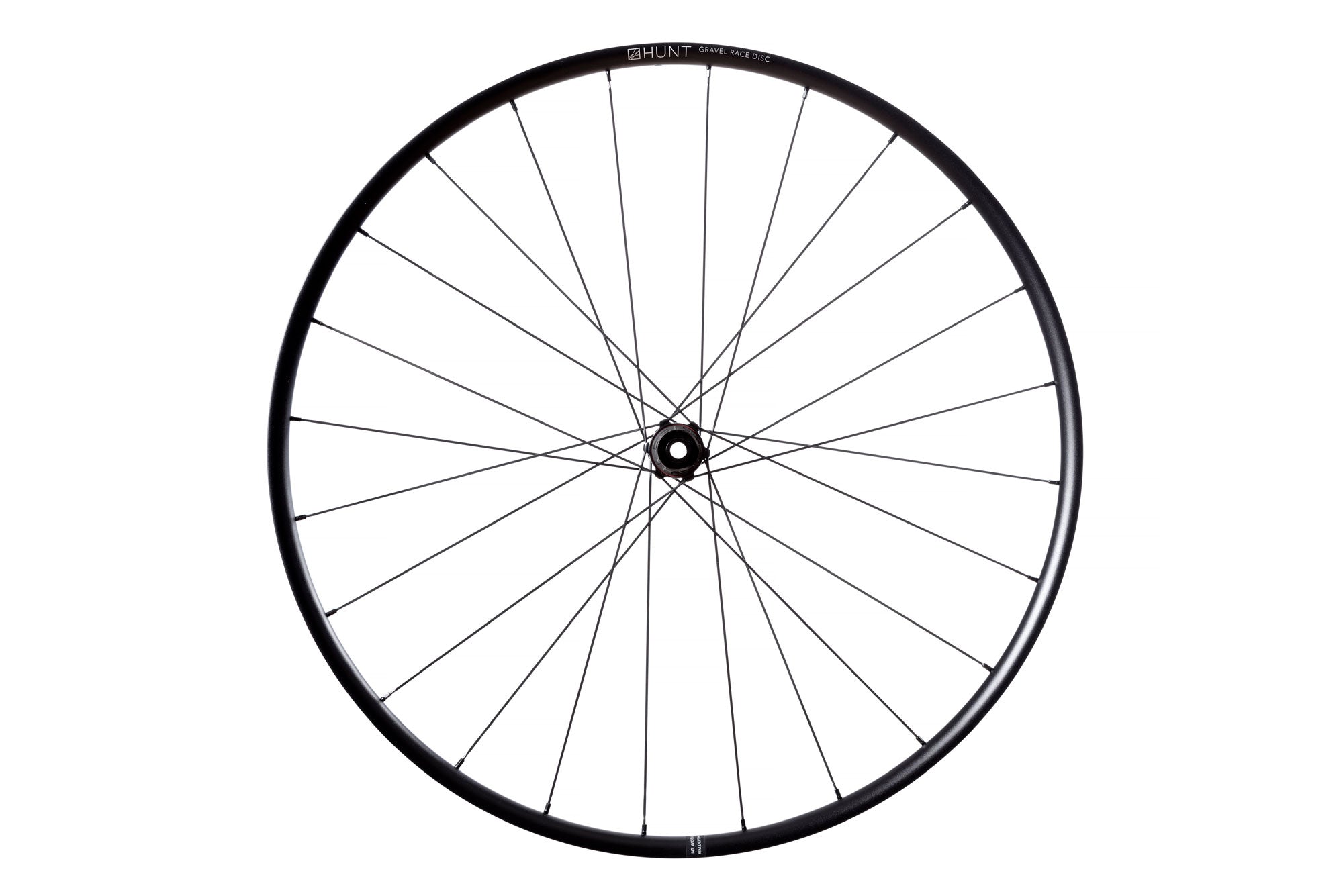

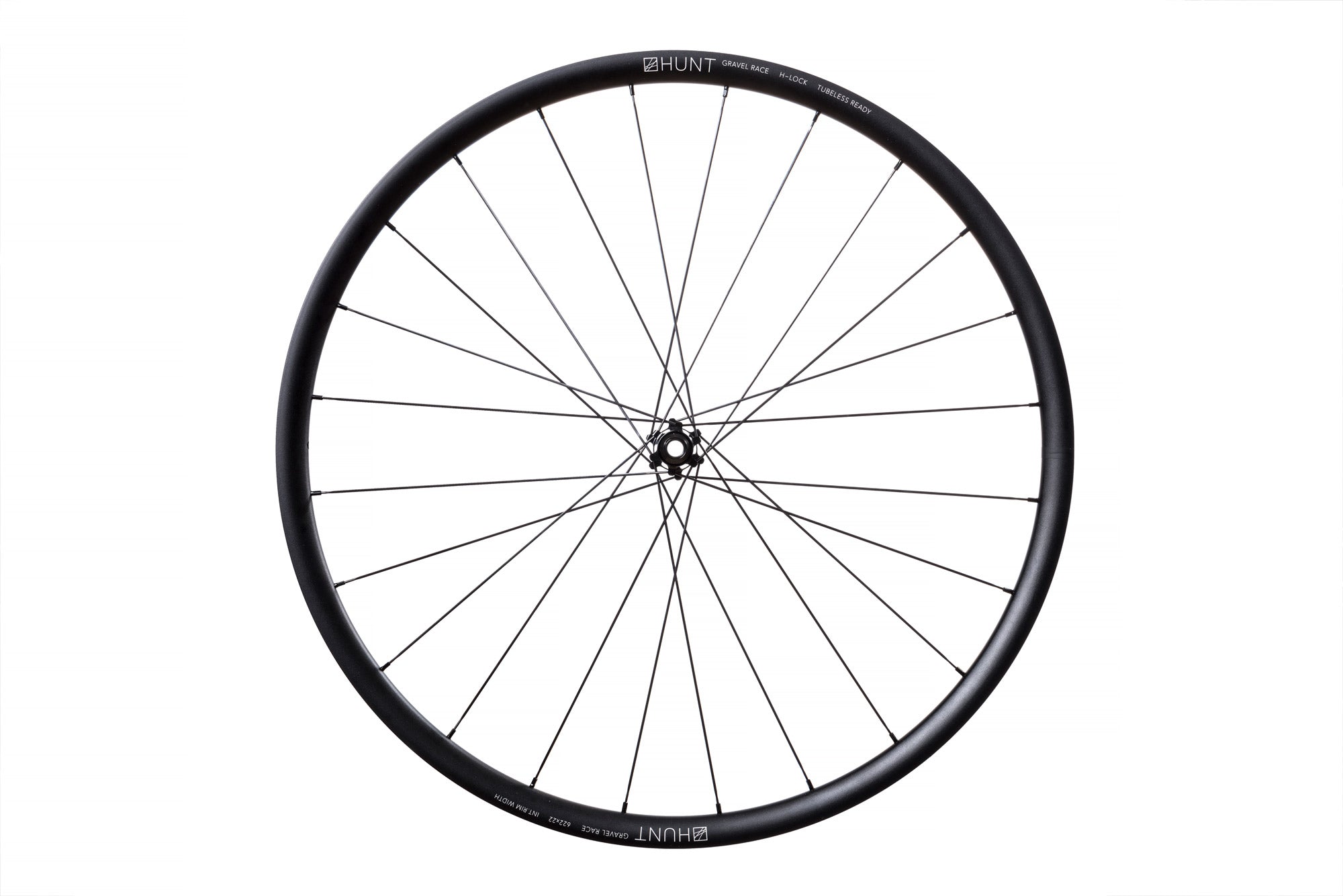

Gravel Race Disc Front Wheel
Gravel Race Disc Rear Hub
Gravel Race Disc Front Hub

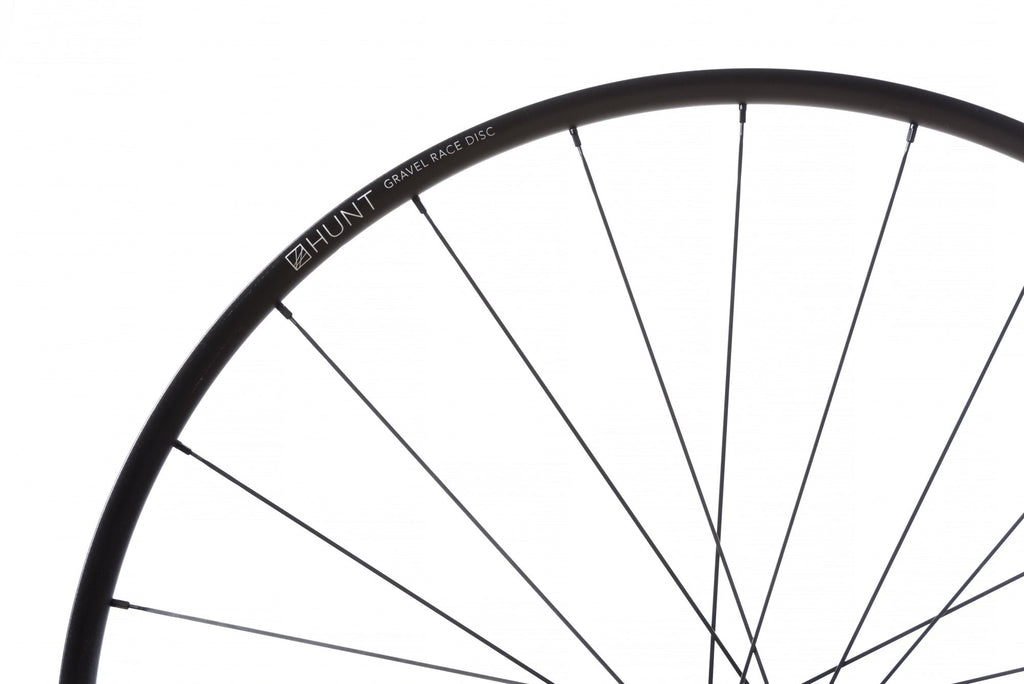

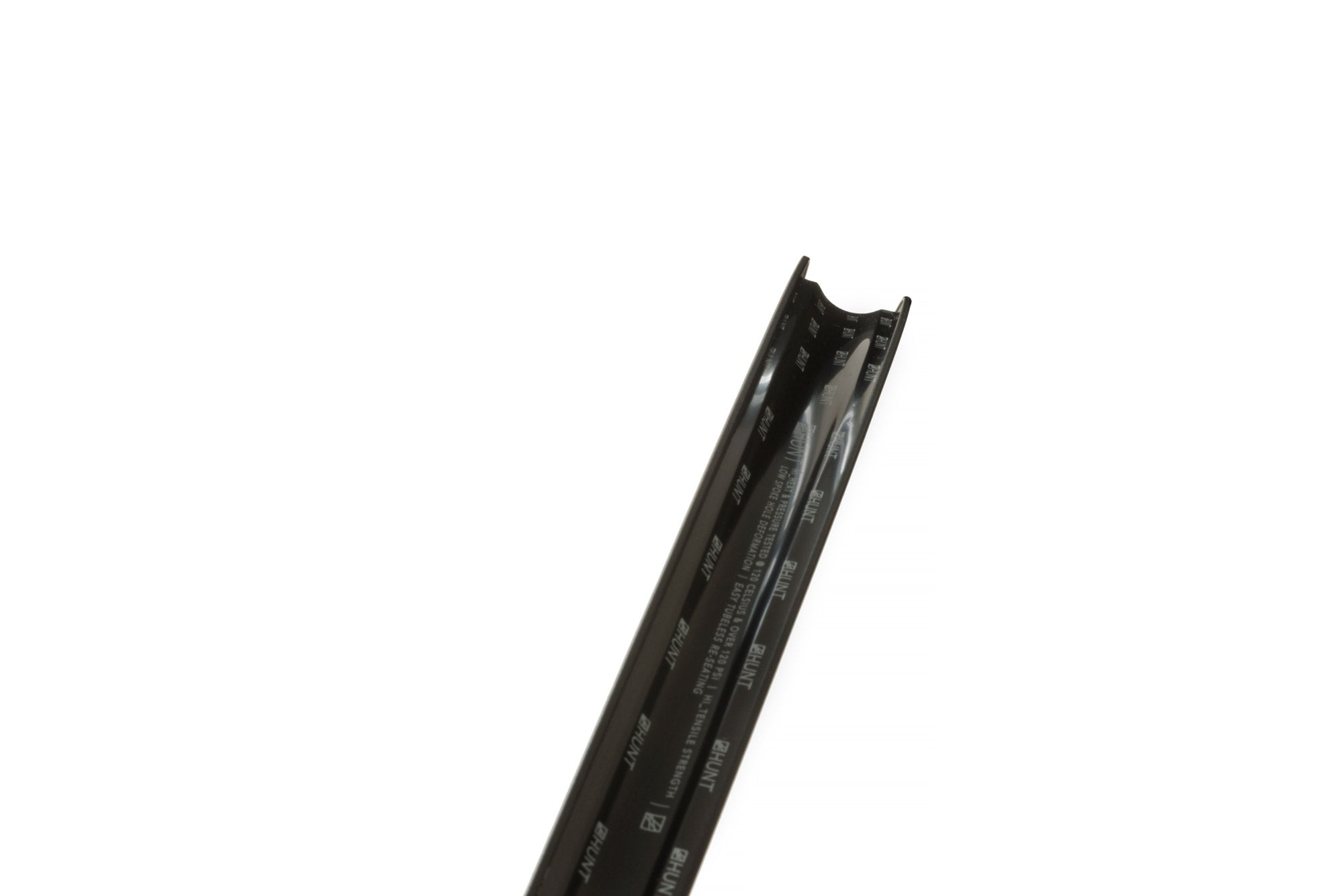

Gravel Race Disc Rim
Gravel Race Disc Inner Rim Width
Gravel Race Disc In the box
25% off
HUNT Gravel Race Disc wheelset
Gravel Race Disc Rear Wheel
Gravel Race Disc Front Wheel
Gravel Race Disc Rear Hub
Gravel Race Disc Front Hub
Gravel Race Disc Rim
Gravel Race Disc Inner Rim Width
Gravel Race Disc In the box

HUNT Gravel Race Wheelset

1403g Depth Width ext Width int size
17 mm 28 mm 24 mm 700c

Designed to offer super-sharp performance on the path less pedaled, and updated with a wider rim profile and lower system weight to make your bike both more capable and quicker under power. We built an alloy wheelset that could excel on gravel and fast off-road segments, while providing the responsiveness and quick acceleration riders demand on the roads that connect your favourite gravel loop.

Tyre size: Optimized for 35 to 55mm tyres; work well with 29mm up to 60mm.

Which freehub do I need?
£434.26 £579.00
25% off

£99 deposit option available, fully refundable.
Pre-Order Now. Shipping:
Shimano/SRAM HG Splined - Limited Stock
SRAM XD/XDR - Limited Stock
Campagnolo Ekar - Jan Wk 4
Shimano Microspline - Limited StockItems are selected to ship from us in the week stated. Delivery time is 1 day*

We will ask for axle info after checkout.

Choose your finance options at checkout:

Order by 3pm for Next Day Delivery (if shown in stock). Allow 1-3 days for tyre-fitting.

Our wheels are in high demand, don't miss out.

More details Right

The Purpose _

The Purpose _

The new HUNT Gravel Race Disc has been updated with a wider rim profile and lower system weight to make your bike both more capable and quicker under power.

With 6069-T6 alloy rim construction, offering 69% higher tensile strength than 6061-T6 alloy, and a wider 24mm internal rim dimension, the new Gravel Race is ready for your next race and all the gravel adventures between now and race day.

The anodized and shot-peened rim finish shrugs off your rowdiest lines and flung rocks for greater long-term durability. HUNT H_Ratchet 40T DBL hubs offer rapid 9-degree engagement angle with a dual-sided ratchet system designed to handle the torque loads of wide range gravel or road drivetrains. The increased 24mm internal width is optimized for modern gravel tyres, ranging from 35mm all the way up to 55mm, allowing you to confidently roam new routes. Hand-built with 24 bladed Sapim CX-Delta spokes and alloy spoke nipples for dependability, responsiveness and supreme ride characteristics.

KEY FEATURES_

Rims

6069-T6 Heat treated alloy, offering 69% greater tensile strength than 6061-T6 alloy. Disc specific, ETRTO complaint hooked 24mm internal rim profile. Anodized, work-hardened and shot-peened for durability.

HUNT H_Ratchet 40T DBL

HUNT H_Ratchet 40T DBL ratchet-based hub system with straight pull spoke interface and 9-degree engagement. Featuring a robust 6066-T6 alloy shell and high-strength 7075-T6 axle and freehub body with stainless steel insert to prevent gouging and wear.

Tyres

Tubeless-ready for lower weight, lower rolling resistance and improved puncture resistance. Also works excellently with clincher tyres and tubes. Optimised for 35-55mm tyres, and compatible with 29-65mm tyres.

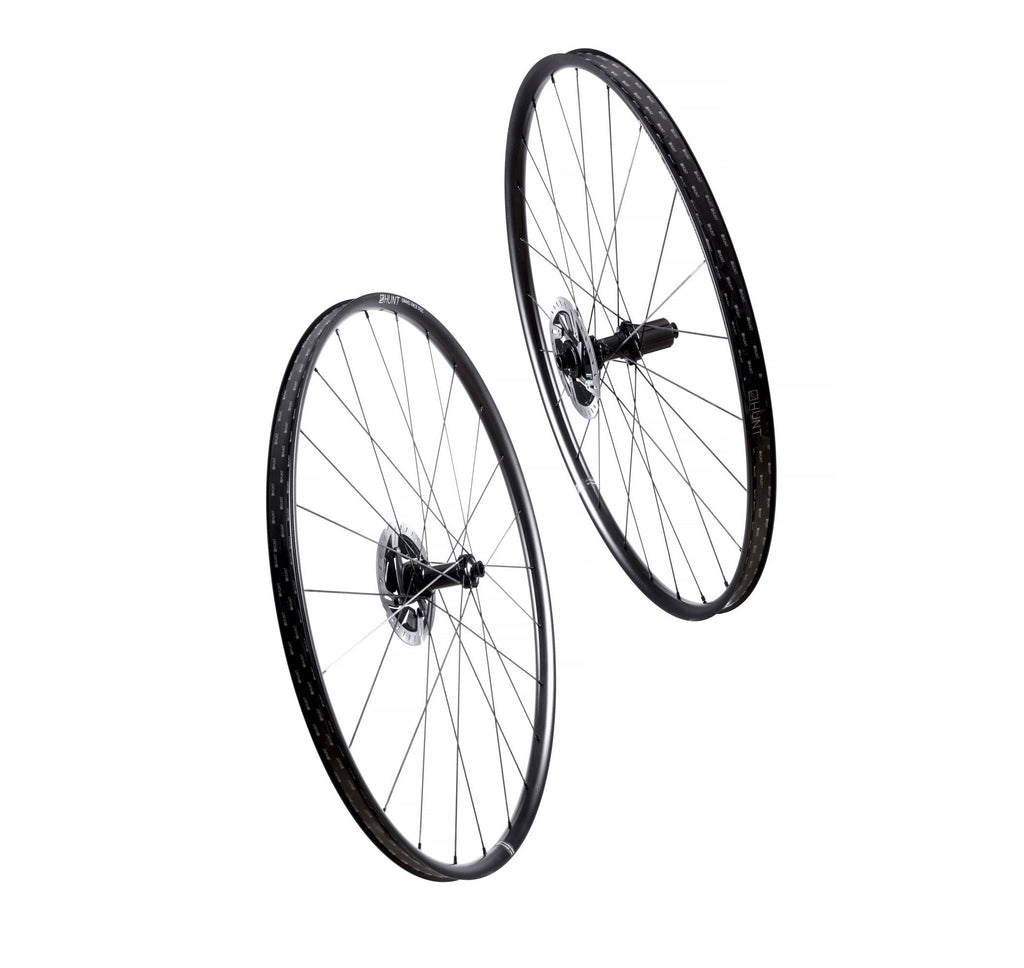

Gravel Race Wheelset

Full Specs _

Rims
Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape and valves included. Hooked H_LOCK bead-seat up-kicks for easy and secure tubeless installation. 6069-T6 | 490 MPa + 69% UTS than 6061-T6, with higher fatigue and impact strength 28mm outer and 24mm inner width. Rounded 17mm deep profile. Micro-peened black finish strengthens the surface even further. Laser etched graphics for excellent durability.
  • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape and valves included.
  • Hooked
  • H_LOCK bead-seat up-kicks for easy and secure tubeless installation.
  • 6069-T6 | 490 MPa + 69% UTS than 6061-T6, with higher fatigue and impact strength
  • 28mm outer and 24mm inner width.
  • Rounded 17mm deep profile.
  • Micro-peened black finish strengthens the surface even further.
  • Laser etched graphics for excellent durability.
Spokes
24 front and 24 rear laced 2 cross. Sapim CX-Delta Aero Butted 2.0-2.2/0.9-2.0mm Straight-pull for excellent torsional strength and direct power transfer Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden Black stainless treatment
  • 24 front and 24 rear laced 2 cross.
  • Sapim CX-Delta Aero Butted 2.0-2.2/0.9-2.0mm
  • Straight-pull for excellent torsional strength and direct power transfer
  • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
  • Black stainless treatment
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. 16mm length for a strong connection to the spoke and added durability. 14 gauge. Black anodized finish.
  • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
  • 16mm length for a strong connection to the spoke and added durability.
  • 14 gauge.
  • Black anodized finish.
Front Hub
HUNT disc straight-pull super-light alloy Forged and CNC’d 6066-T6 aluminium alloy body. 7075-T6 Heat treated aluminium alloy axles. Polished anodized black finish with laser graphics. Center-lock disc mount. Please note: If you require a 6 bolt adaptor you can purchase separately here.
  • HUNT disc straight-pull super-light alloy
  • Forged and CNC’d 6066-T6 aluminium alloy body.
  • 7075-T6 Heat treated aluminium alloy axles.
  • Polished anodized black finish with laser graphics.
  • Center-lock disc mount.
  • Please note: If you require a 6 bolt adaptor you can purchase separately here.
Rear Hub
HUNT H_Ratchet DBL disc straight-pull super-light alloy. H_Ratchet 40t ratchet rings on floating carrier with 9˚ engagement H_Ceramik freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. All freehub standards accounted for. 6066-T6 CNC’d aluminium alloy hub shell. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here. Polished anodized black finish with laser graphics.
  • HUNT H_Ratchet DBL disc straight-pull super-light alloy.
  • H_Ratchet 40t ratchet rings on floating carrier with 9˚ engagement
  • H_Ceramik freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • All freehub standards accounted for.
  • 6066-T6 CNC’d aluminium alloy hub shell.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
  • Polished anodized black finish with laser graphics.
Bearings
Super smooth precision bearings with waterproof grease specially selected for even the worst weather. Sealed cartridge replaceable units. Dual full-contact seals
  • Super smooth precision bearings with waterproof grease specially selected for even the worst weather.
  • Sealed cartridge replaceable units.
  • Dual full-contact seals
Axle Sizes
These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.

Tyres Info
HUNT recommend a 35-55mm tyre for best performance, tyre widths between 29mm and 65mm are also safe to use. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower. Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post here about this. These wheels arrive tubeless-ready, with tubeless tape installed and tubeless valves included, but are also designed to work perfectly with inner tubes and clincher tyres. You must not exceed the maximum pressure stated on your tyre.
  • HUNT recommend a 35-55mm tyre for best performance, tyre widths between 29mm and 65mm are also safe to use.

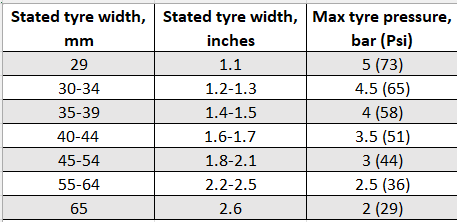

  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post here about this.
  • These wheels arrive tubeless-ready, with tubeless tape installed and tubeless valves included, but are also designed to work perfectly with inner tubes and clincher tyres.
  • You must not exceed the maximum pressure stated on your tyre.

HIGH SPECIFICATION COMPONENTS _

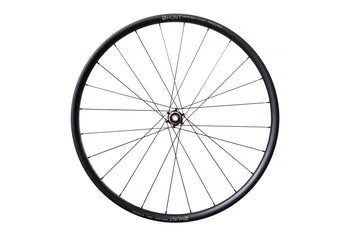

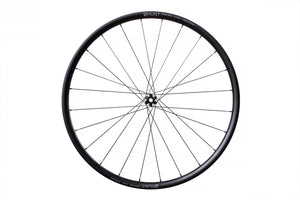

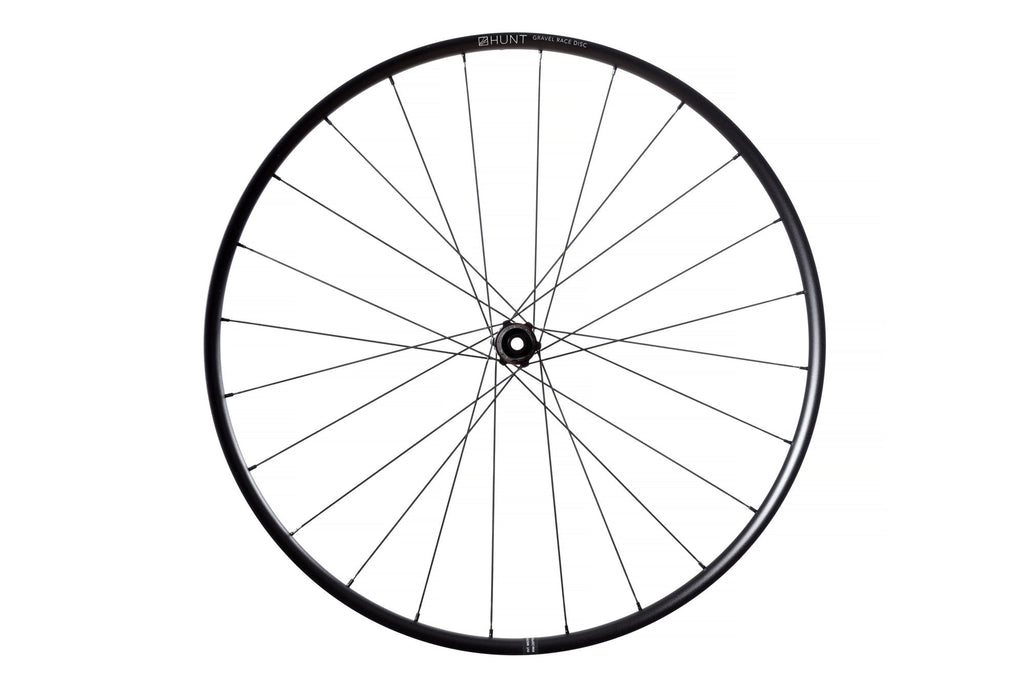

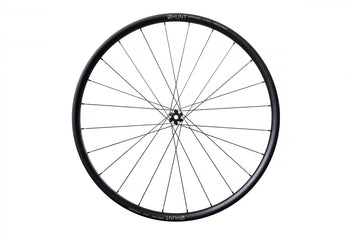

HUNT Gravel Race Front Wheel

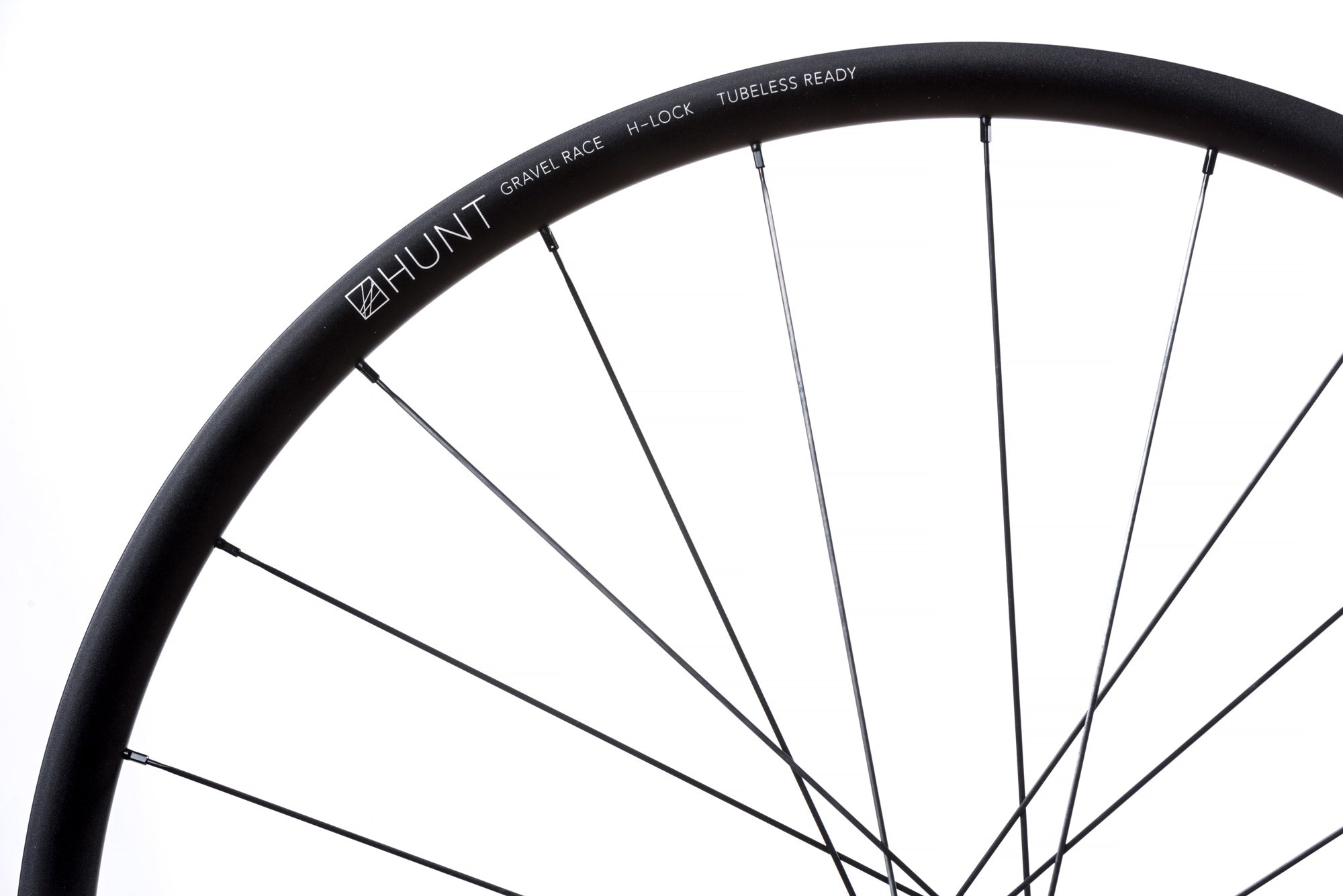

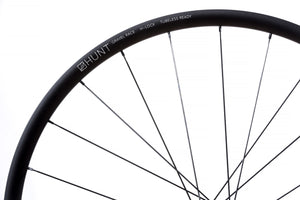

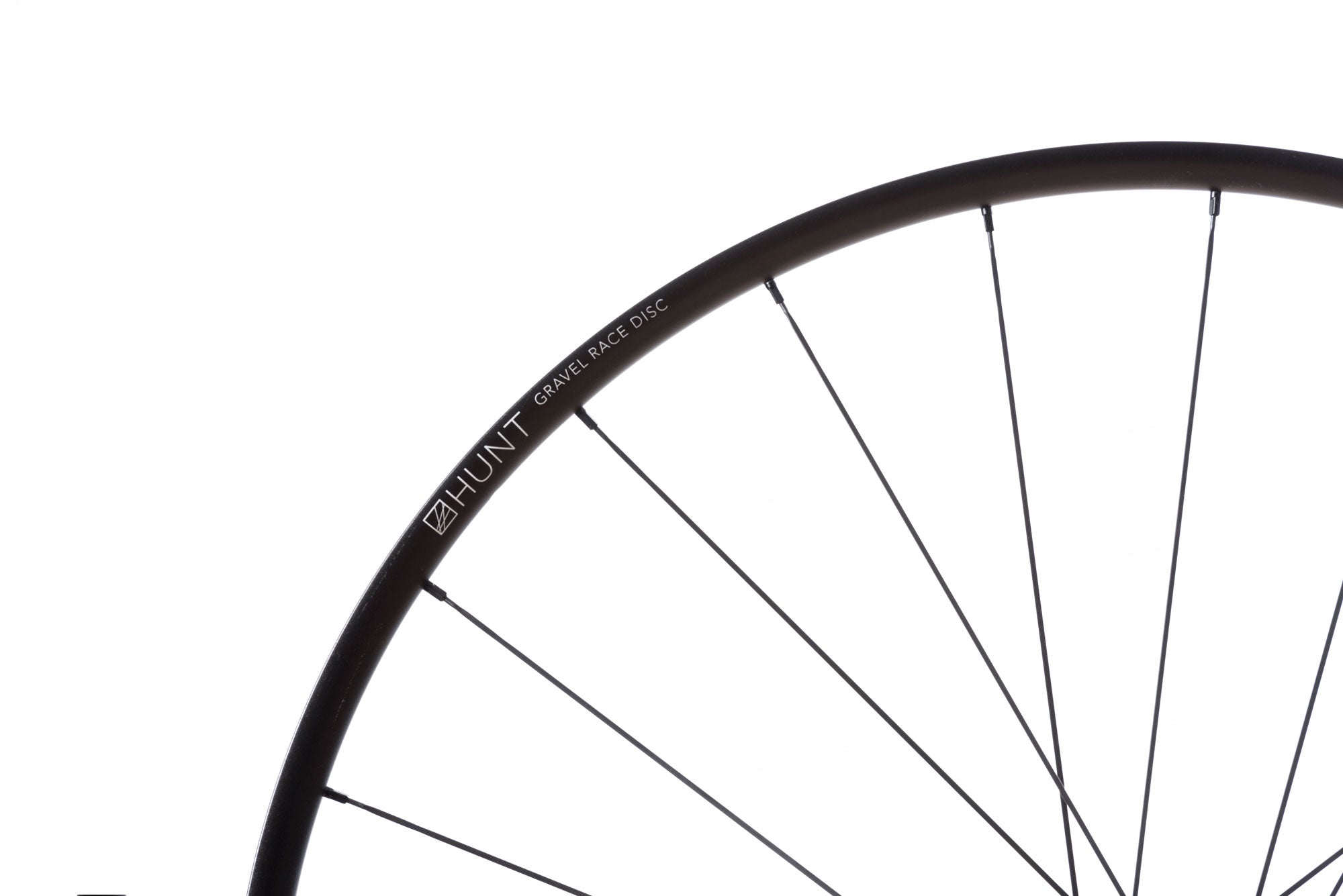

Rims


A strong and lightweight 6069-T6 heat-treated rim boasts 69% higher tensile strength vs 6061-T6 alloy. The updated Gravel Race Disc features a wider 24mm internal and 28mm external rim width, creating an optimal tyre profile for wider gravel tyres, giving excellent grip and lower rolling resistance.

HUNT Gravel Race Wheelset
Spokes

The CX Delta is one of the latest offerings from Sapim, offering the aero advantage of a bladed CX Ray, with the durability of a D-Light. SCFT (Sapim Cold Forging Technology) ‘Stretch’ the spoke while retaining the linear Molecular structure of the material, thereby increasing the spoke strength at the middle by at least 48%.

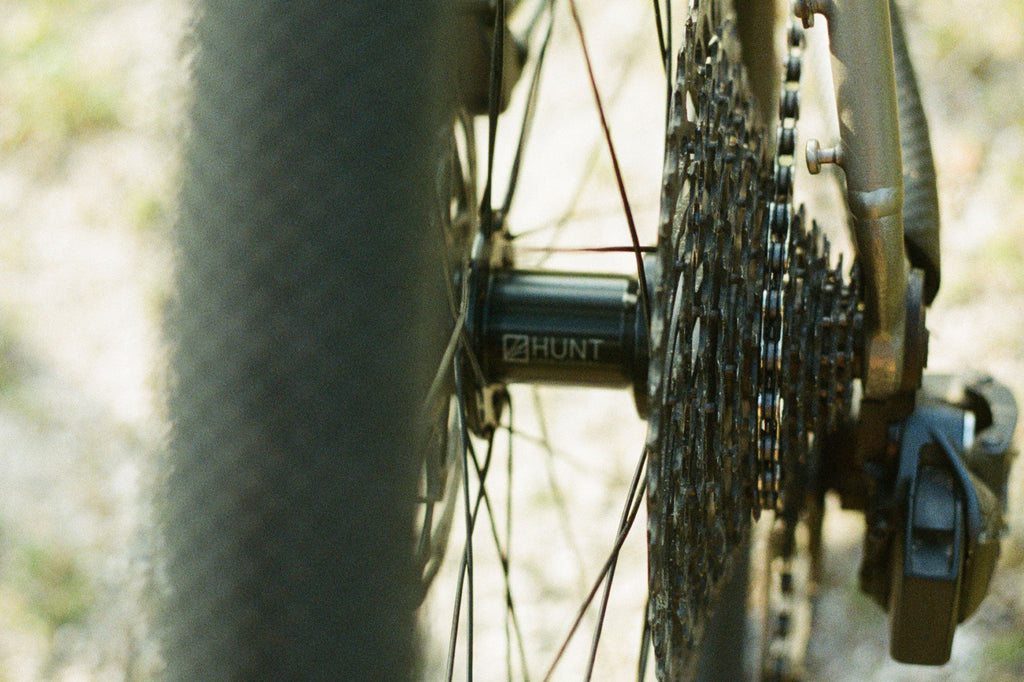

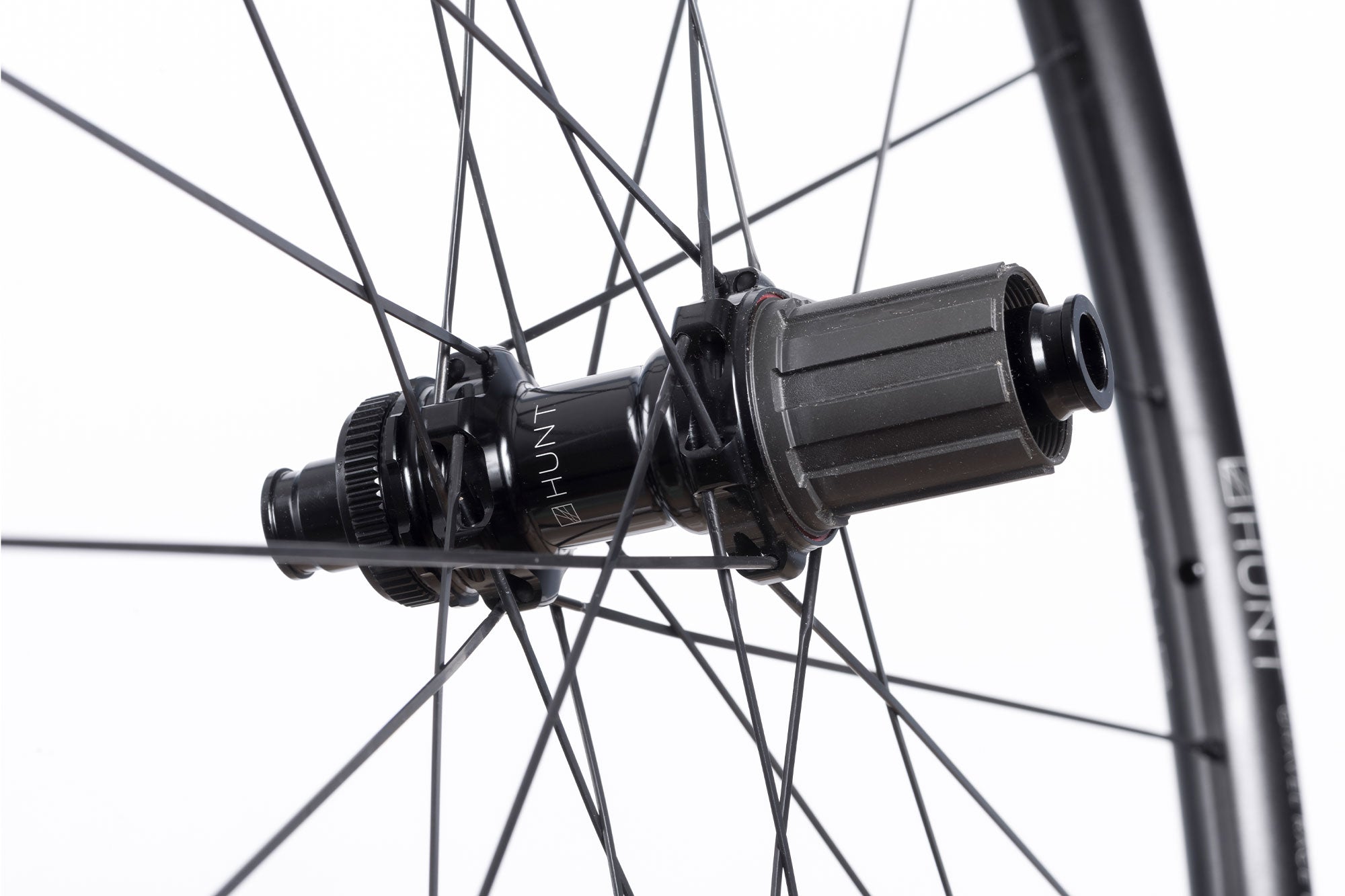

HUNT Gravel Race H-Ratchet Hub

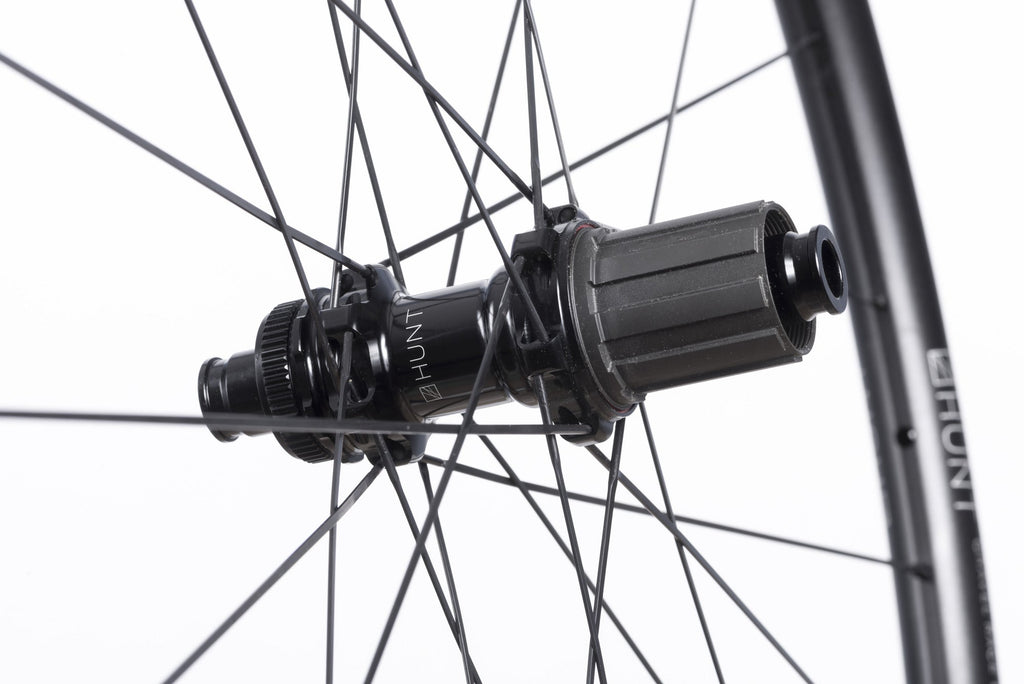

H_RATCHET 40T DBL HUB

H_Ratchet double-sided system (with two floating ratchet rings). With a 40t ratchet ring resulting in rapid 9˚ engagement. The freehub body features H_Ceramik anti-bite coating to ensure maximum durability.

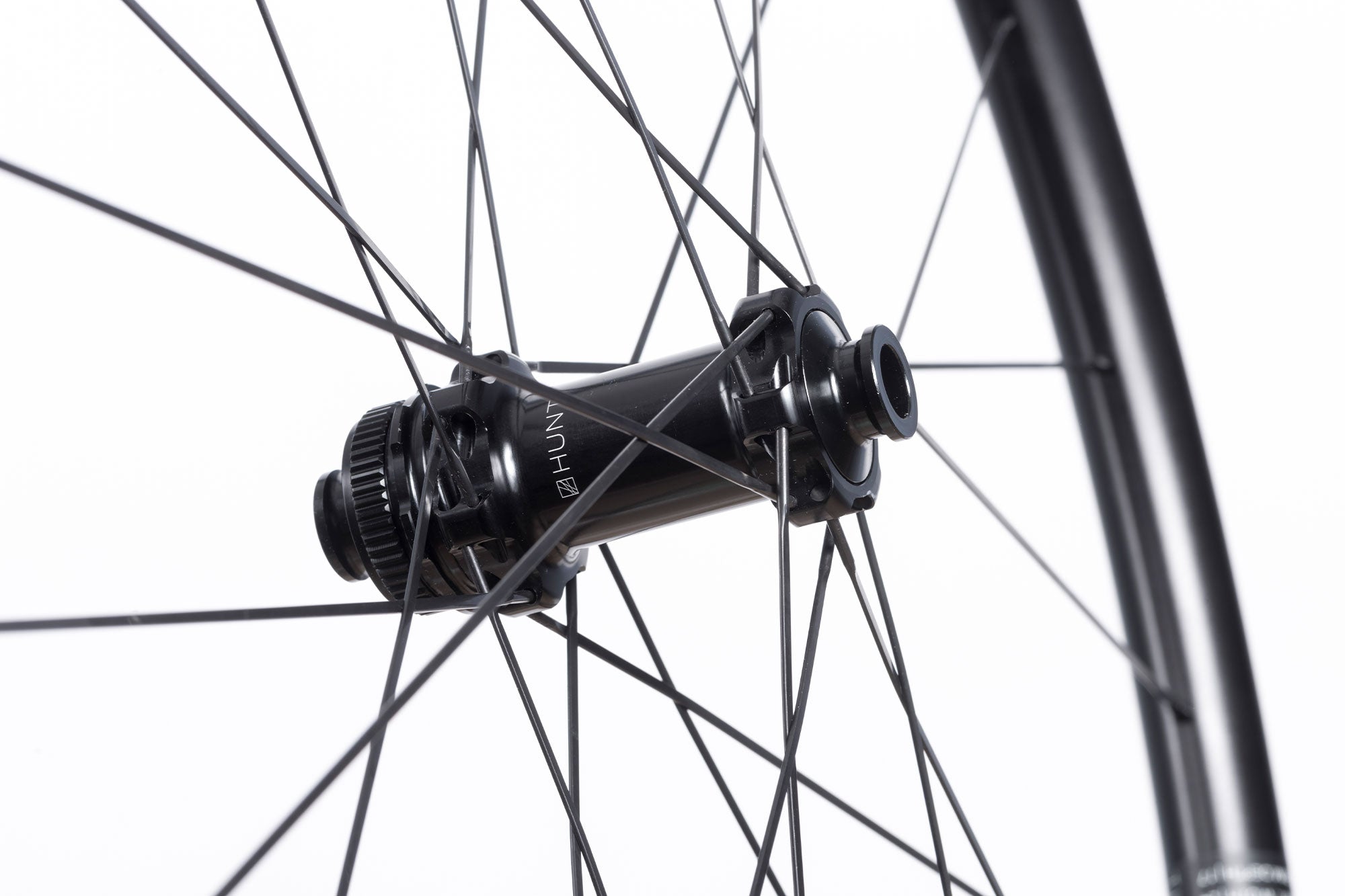

HUNT Gravel Race front Hub
BEARINGS

The heart of any wheel. Investing in them makes huge sense. We use high-grade double sealed smooth-rolling sealed cartridge bearings.
NIPPLES

The conical shape of the double square nipple allows for increased accuracy in wheel building when combined with a nipple washer, allowing us to create evenly tensioned wheels with reduced stress points at the spoke hole.

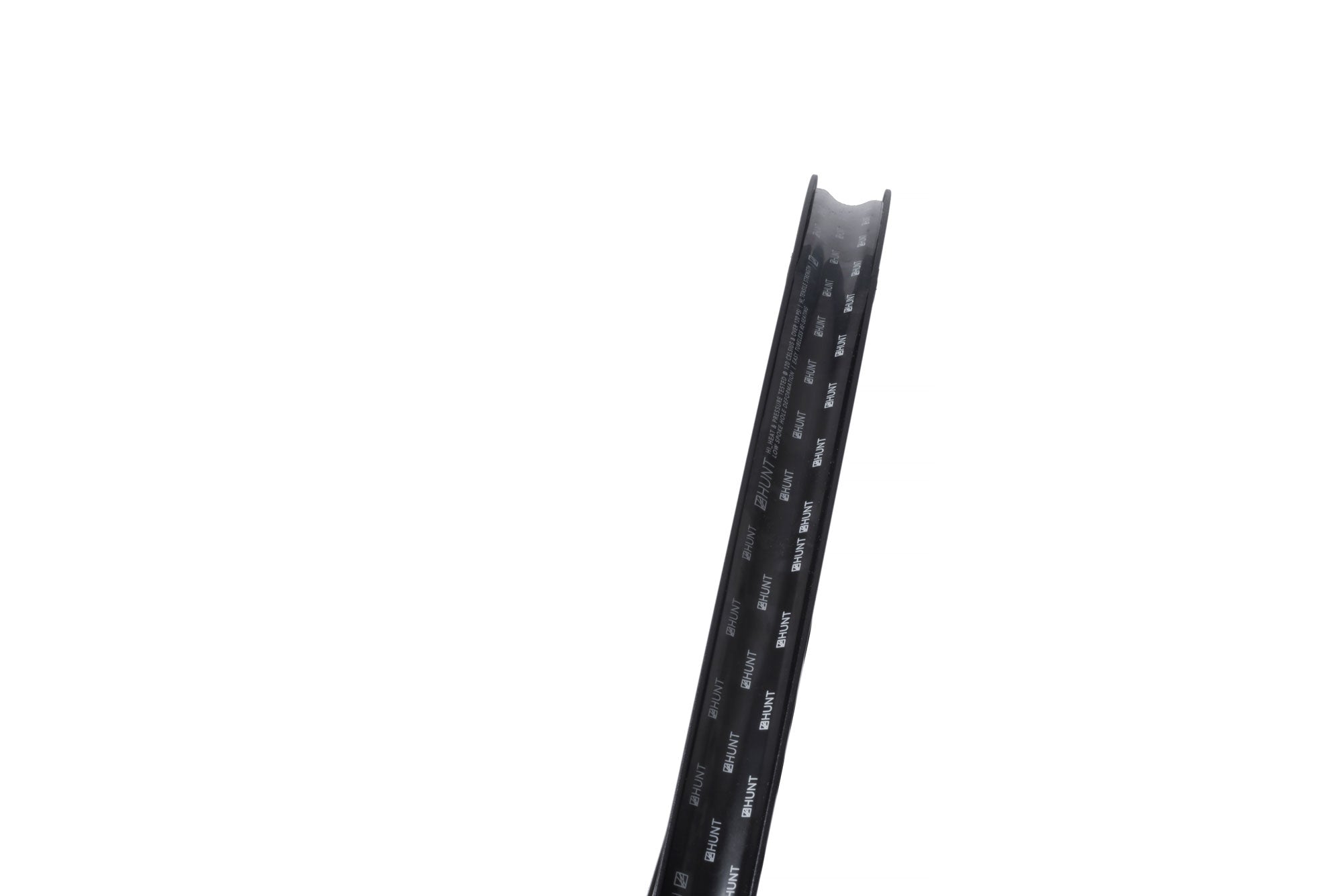

HUNT Gravel Race Inner rim
WEIGHT


The consequence of the fanatic attention to detail is incredible durability and a resulting low 1403 gram wheelset weight. Acceleration and climbing are massively improved over many of the stock wheels supplied on CX/gravel disc brake bikes.

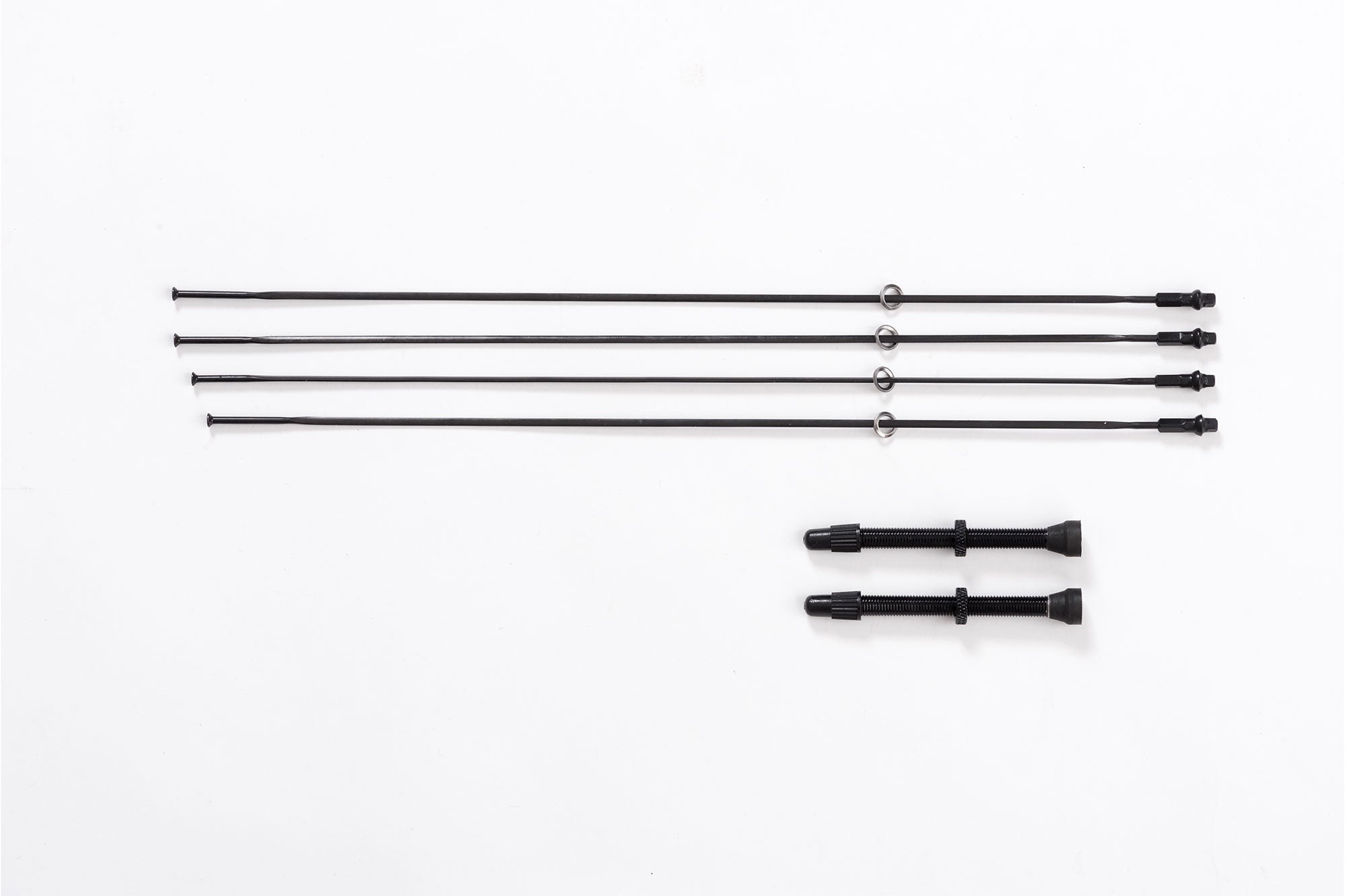

What's in the box _

  • Hunt Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed
  • 35mm Tubeless Valves
  • Spare of each spoke plus nipples
  • Disc Rotor Lock Rings
  • Quality control card signed by your wheel builder

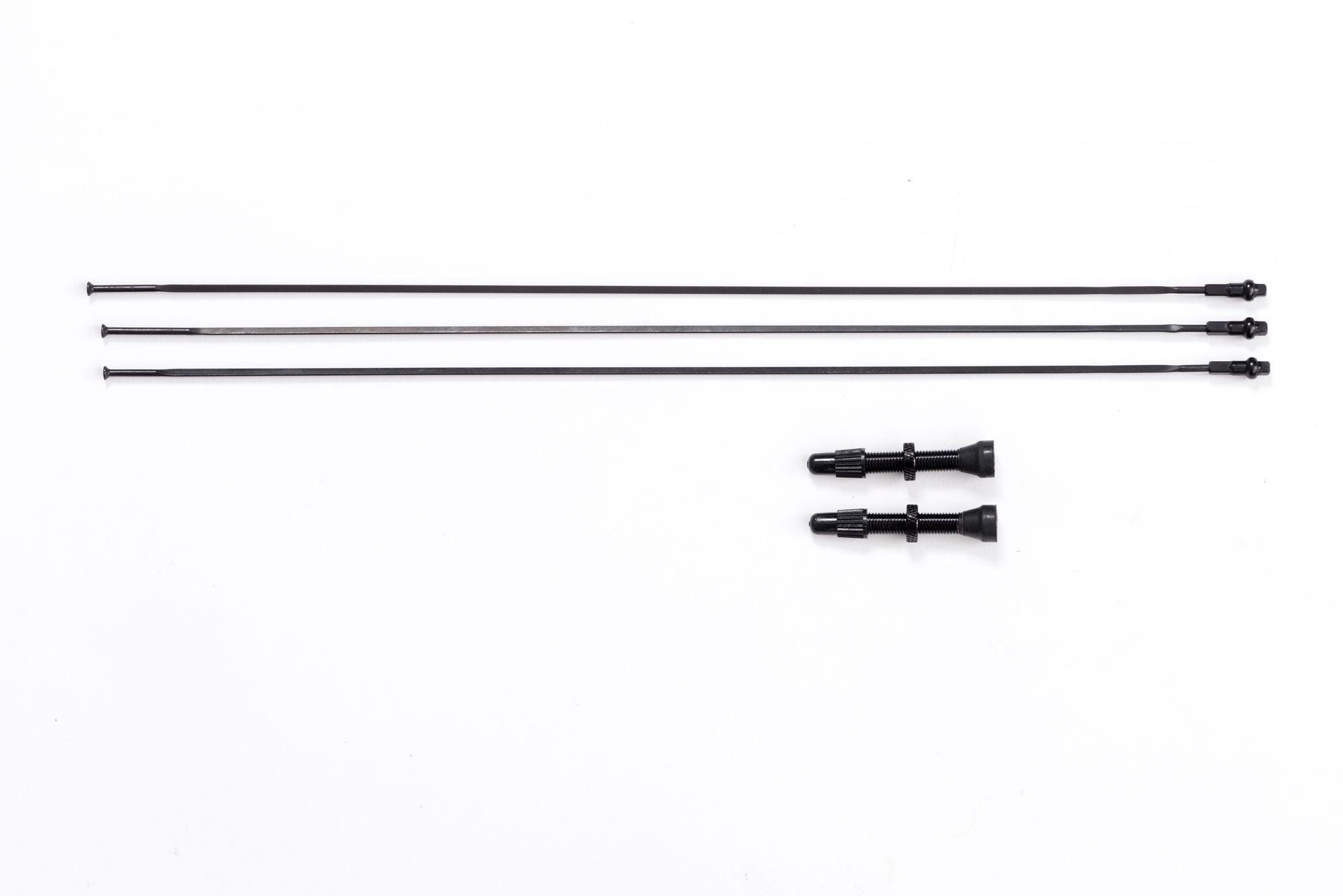

Gravel Race Disc In the box

Our riders also bought_

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 130 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 120 kg then an experienced bike mechanic should check the wheel regularly.
