HUNT Proven Carbon XC Dynamo Wheelset

1966g Width ext Width int size
36 mm 30 mm 29"

A robust but responsive, dynamo-equipped mountain wheelset developed to tackle the world's toughest bikepacking races. Based on our award-winning Proven Race XC rims, and built with a SON 28 front hub to power lights and charge electronics, solving an ultra-racing pain point and enabling faster passages.

Tyre Size: Optimized for 2.25"-2.5" tyres; work well with 2.25" up to 2.8" tyres.

Which freehub do I need?
£1,489

£99 deposit option available, fully refundable.
Pre-Order Now. Shipping:
Wheelset - Nov Wk 4
Front Wheel - Nov Wk 4
Rear Wheel - Nov Wk 4Items are selected to ship from us in the week stated. Delivery time is 1 day*

We will ask for axle info after checkout.

Order by 3pm for Next Day Delivery (if shown in stock). Allow 1-3 days for tyre-fitting.

Our wheels are in high demand, don't miss out.

H_CARE

FREE LIFETIME CRASH REPLACEMENT

To ensure you're not out of pocket should the worst happen. Learn more.

More details Right

The Purpose _

The Purpose _

The Proven XC Dynamo wheelset was developed in collaboration with HUNT Beyond athletes seeking a lightweight carbon MTB wheelset with Dynamo charging and lighting capabilities to tackle the world’s toughest off-road ultra races. Utilising our Proven Race XC MTB rim with a 30mm internal width for maximum tyre volume and ride tuned front and rear-specific carbon fibre layup to maximize comfort and traction up front, and power transfer in the rear.  Our engineering and development team has included an extra layer of carbon in the rim to reinforce the spoke holes.

Hand-built with 28 J-bend spokes and durable, corrosion-resistant, self-lubricating brass nipples to ensure strength and reliability.

KEY FEATURES_

Proven in Competition

During the validation process, this wheelset was raced by Justinas Leveika to set the Fastest Known Time and take victory in the Tour Divide, and by Cynthia Carson to win the Atlas Mountain race.

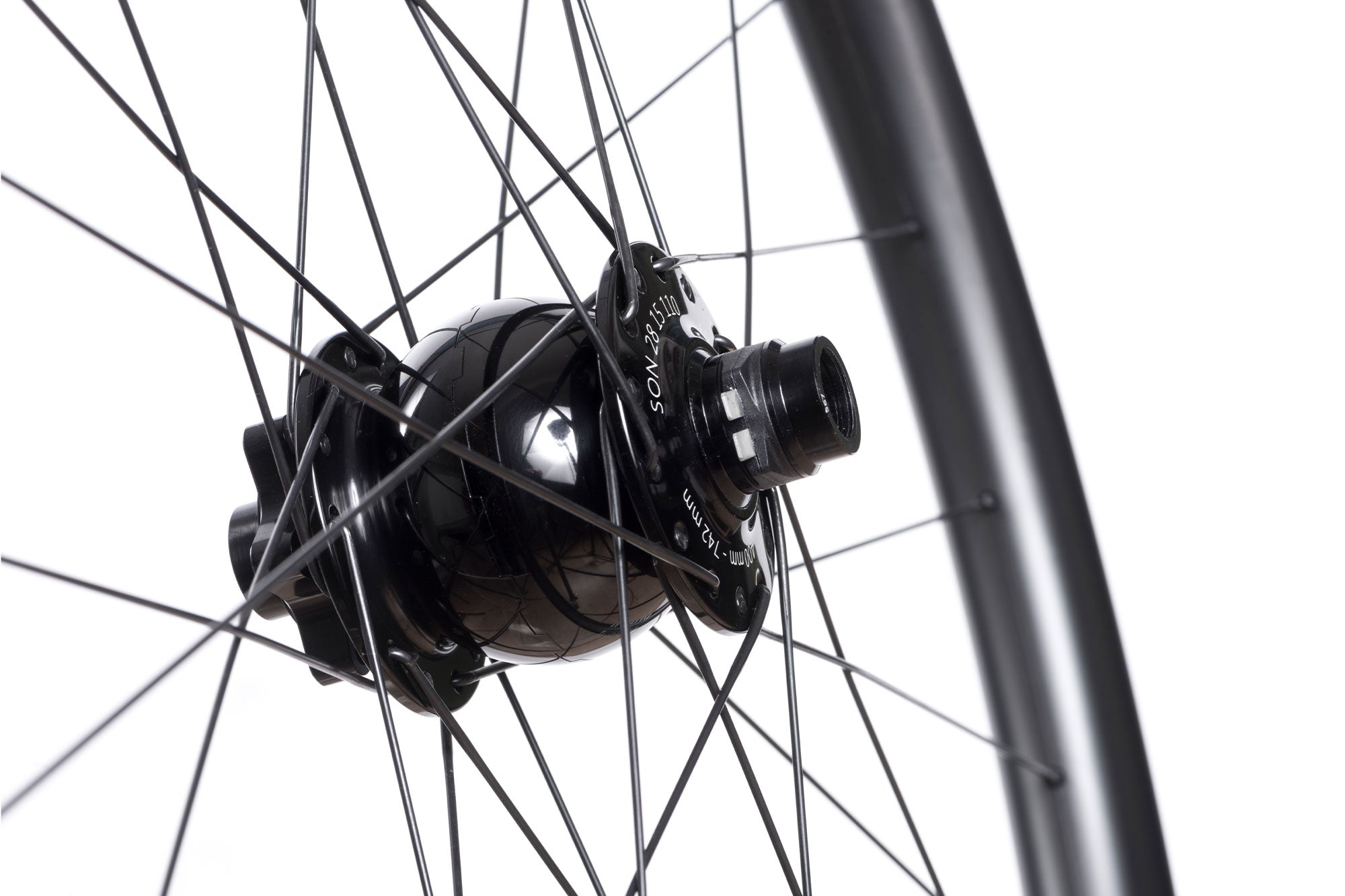

Dynamo Front Hub

Designed for smooth reliability and longevity, SON hub dynamos have been an undisputed benchmark for many years. The generator is precisely adapted to the intended use and efficiently powers headlights, rear lights or charges devices and power banks while riding, even at low speed.

Hookless Carbon Rim

Built with a hookless, straight-sidewall design and a precision-engineered carbon construction, each of our tailored rims are reinforced with an additional 3k carbon weave for enhanced durability.

90T S_RapidEngage Freehub

The S_RapidEngage freehub boasts our fastest MTB engagement angle freehub to date. This race-ready 3x2 pawl system is mated to our new 90t ratchet ring with 6 durable pawls transferring power in an alternating pattern creating an almost instant 2-degree engagement for improved responsiveness and pedal input, crucial for technical climbing under load.

Durable Carbon Rims

A custom layup and manufacturing process prioritising strength and low weight, strategically removing material where it’s not necessary while ensuring high-stress areas are fully reinforced with an additional 3k carbon weave for added reliability.

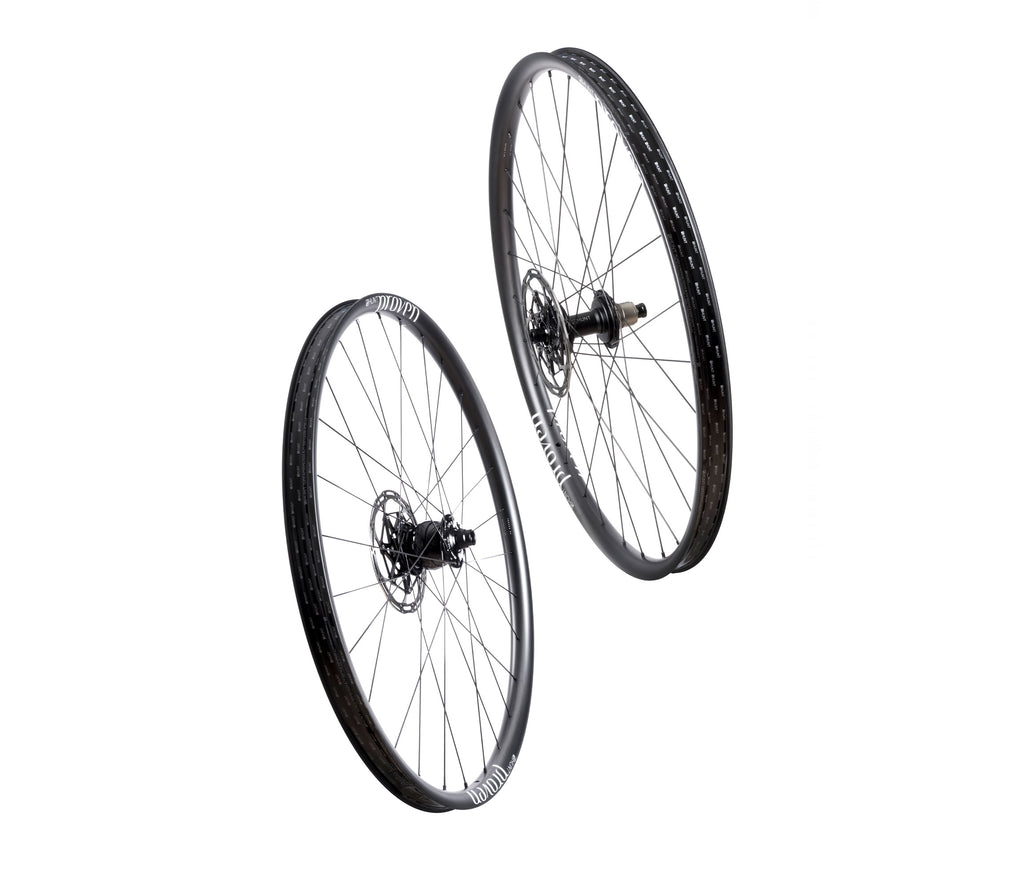

Full Specs _

Rims
30mm internal rim width, 36mm external and 22mm depth   Tailored carbon construction with 3K carbon spoke bed reinforcement.   Hookless - Tubeless-ready – designed for use with tubeless tyres. Tubeless-rim tape and valves included.   H-lock Wedge bead-seat up-kicks for easy and secure tubeless installation.   Available in 29" only.
  • 30mm internal rim width, 36mm external and 22mm depth
  • Tailored carbon construction with 3K carbon spoke bed reinforcement.
  • Hookless - Tubeless-ready – designed for use with tubeless tyres. Tubeless-rim tape and valves included.
  • H-lock Wedge bead-seat up-kicks for easy and secure tubeless installation.
  • Available in 29" only.
Spokes
28 Spoke front and rear in a 3 cross lacing pattern   J-bend cold drawn  Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden  Triple butted 2.0-1.6-2.0   Black stainless treatment
  • 28 Spoke front and rear in a 3 cross lacing pattern
  • J-bend cold drawn
  • Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
  • Triple butted 2.0-1.6-2.0
  • Black stainless treatment
Nipples
Durable brass nipples for corrosion resistance and self-lubricating properties  16mm length for a strong connection to the spoke for added durability  Square body for external adjustment and square head for easy internal adjustment/tensioning  14 gauge
  • Durable brass nipples for corrosion resistance and self-lubricating properties
  • 16mm length for a strong connection to the spoke for added durability
  • Square body for external adjustment and square head for easy internal adjustment/tensioning
  • 14 gauge
Tyres Info
HUNT recommends a 2.25"-2.5" tyre for best performance, tyre widths between 2.0" and 2.8" are also safe to use  Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here  Tubeless-ready for lower weight and rolling resistance  You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower
  • HUNT recommends a 2.25"-2.5" tyre for best performance, tyre widths between 2.0" and 2.8" are also safe to use
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here
  • Tubeless-ready for lower weight and rolling resistance

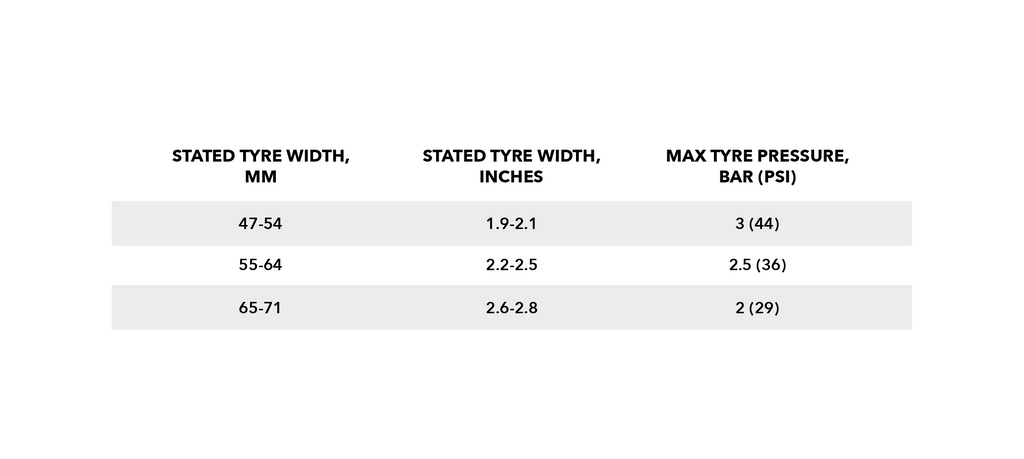

  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower
Axle Sizes
Front:  15x110mm Thru-Axle  Rear: 12x148mm Thru-Axle
  • Front:  15x110mm Thru-Axle
  • Rear: 12x148mm Thru-Axle
Front Hub
SON 28, 15x110mm boost MTB fitment.   3 watt / 6 volt output at 18-19kmh/ 5 volt output at 16kmh   Tested to German road traffic regulations (StVZO) standard K687 for output requirement.   Efficiency: 65% at 15 km/h in 700c wheel.   No-Load Power Input: 0,4 W at 15 km/h in 700c wheel   Magnets: neodymium, 26 poles.   Connection: 4.8 mm flat spades, 2-pin, to connect without ground connection (special design without connectors).   Axle Ends: stainless steel.   Bearings: deep groove ball bearing 629-2RSH (SKF).   Hub Shell: aluminium 6082-T6.   Sealing: alloy dust shields, rubber lip seals and a pressure compensation system which prolongs bearing life by reducing water being drawn in to the hub system   6-bolt Disc Mount   Hub warranty: 5 years.
  • SON 28, 15x110mm boost MTB fitment.
  • 3 watt / 6 volt output at 18-19kmh/ 5 volt output at 16kmh
  • Tested to German road traffic regulations (StVZO) standard K687 for output requirement.
  • Efficiency: 65% at 15 km/h in 700c wheel.
  • No-Load Power Input: 0,4 W at 15 km/h in 700c wheel
  • Magnets: neodymium, 26 poles.
  • Connection: 4.8 mm flat spades, 2-pin, to connect without ground connection (special design without connectors).
  • Axle Ends: stainless steel.
  • Bearings: deep groove ball bearing 629-2RSH (SKF).
  • Hub Shell: aluminium 6082-T6.
  • Sealing: alloy dust shields, rubber lip seals and a pressure compensation system which prolongs bearing life by reducing water being drawn in to the hub system
  • 6-bolt Disc Mount
  • Hub warranty: 5 years.
Rear Hub
CNC machined 6066-T6 heat-treated aluminium alloy hub body  J-bend spoke interface  148x12mm Boost design  3x2 pawl, 90 tooth S_RapidEngage freehub, with an engagement angle of just 2 degrees   Oversized 7075-T6 heat-treated aluminium axles  All freehub standards accounted for.  H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies  Polished anodized black finish with laser graphics.
  • CNC machined 6066-T6 heat-treated aluminium alloy hub body
  • J-bend spoke interface
  • 148x12mm Boost design
  • 3x2 pawl, 90 tooth S_RapidEngage freehub, with an engagement angle of just 2 degrees
  • Oversized 7075-T6 heat-treated aluminium axles
  • All freehub standards accounted for.
  • H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies
  • Polished anodized black finish with laser graphics.
Bearings
Super smooth precision stainless steel cartridge bearings.  Dual full-contact seals.  Cartridge design for convenient servicing.
  • Super smooth precision stainless steel cartridge bearings.
  • Dual full-contact seals.
  • Cartridge design for convenient servicing.

HIGH SPECIFICATION COMPONENTS _

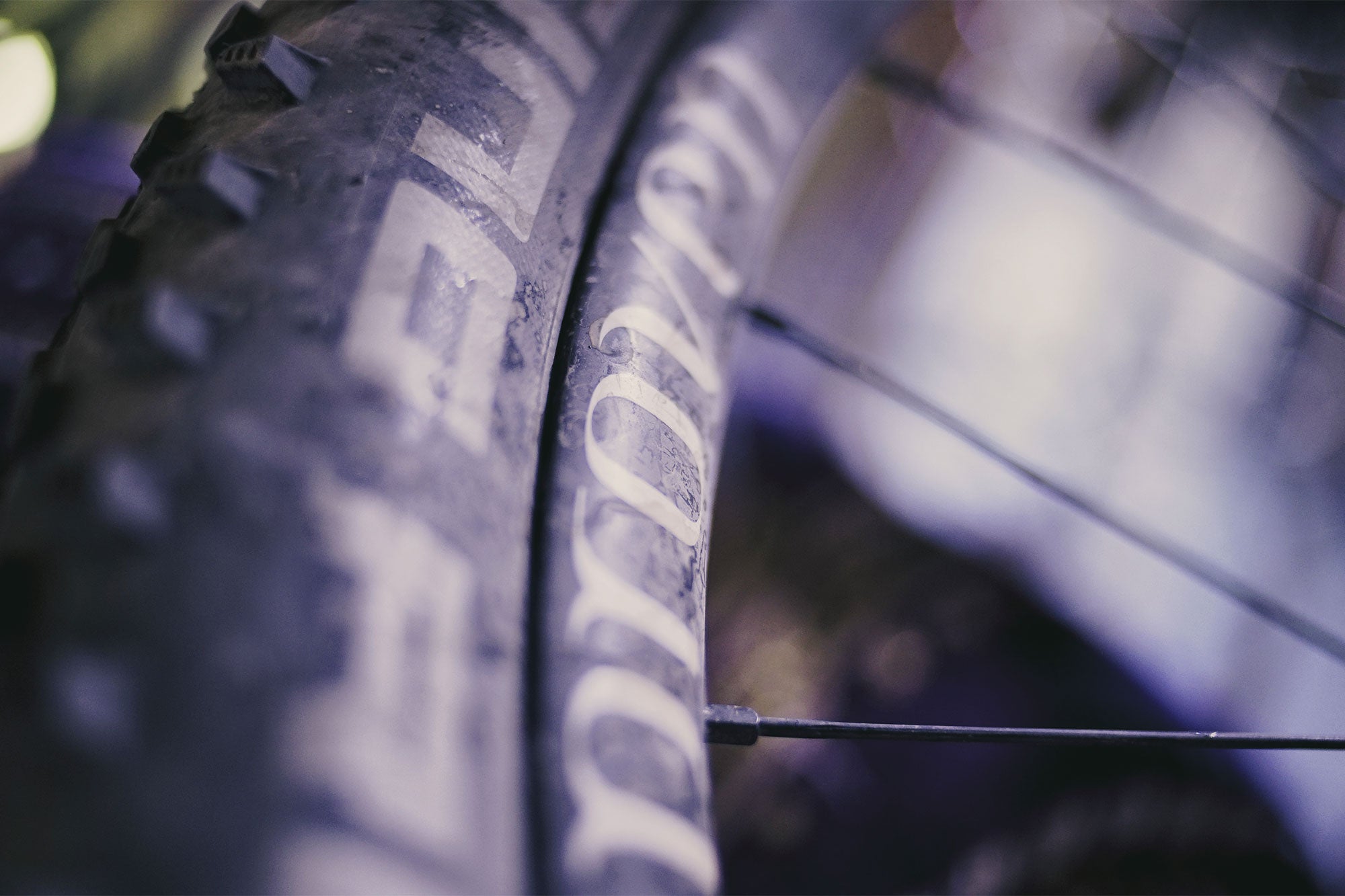

Tuned Rims

We’ve developed a custom layup and manufacturing process that prioritizes low weight, strategically removing material where it’s not necessary while ensuring high-stress areas are fully reinforced for unmatched reliability. Each rim is fine-tuned for its specific purpose. The front is engineered for comfort, absorbing vibrations and smoothing out the ride, allowing you to tackle long stretches with ease. The rear rim is crafted for strength by having extra carbon layers added, providing the support and power transfer you need for rapid acceleration and confident climbs.

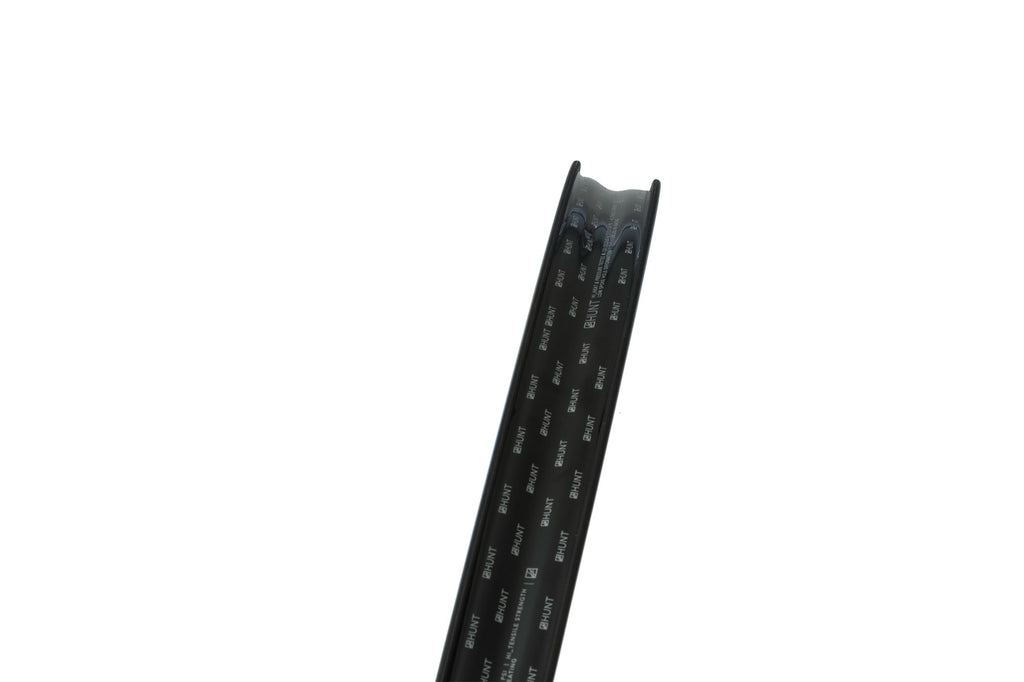

Hookless/Straight Sidewall Design

Featuring a hookless/straight-sidewall with tailored carbon construction with 3k carbon weave reinforcement. Both front and rear rims feature tuned profiles with a future-proof 30mm internal rim width.

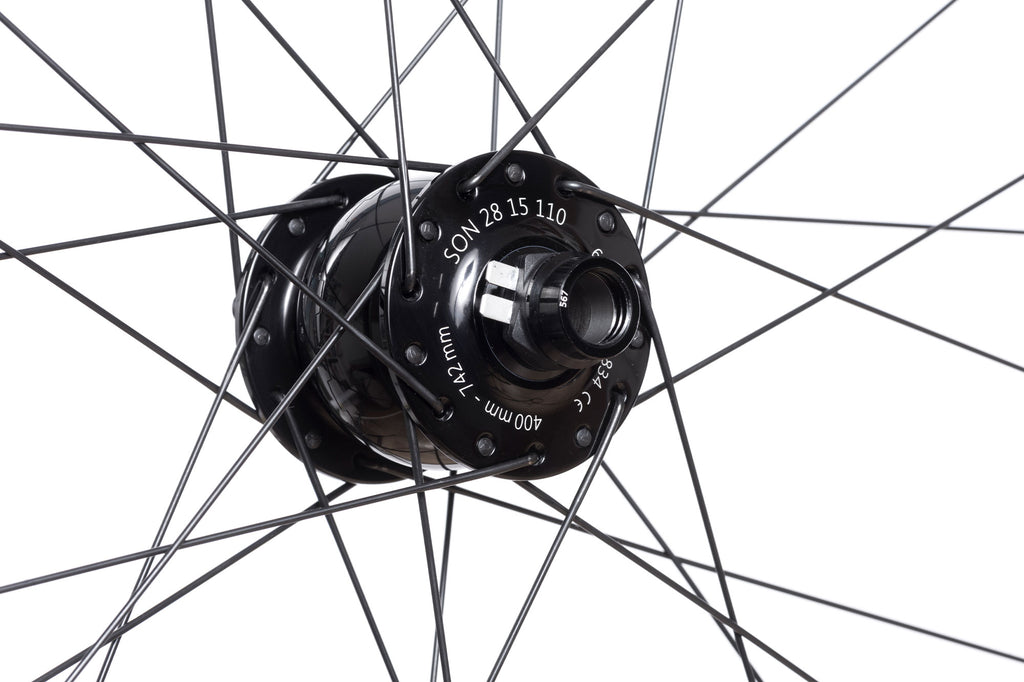

Son Dynamo Front Hub

SON 28. 3 watt / 6 volt output at 16kmh tested to German standard K687 for output requirement. Sealed with alloy dust shields, rubber lip seals and a pressure compensation system to prolong bearing life by reducing water ingress to the hub system. Backed by a 5 year warranty to keep you rolling.

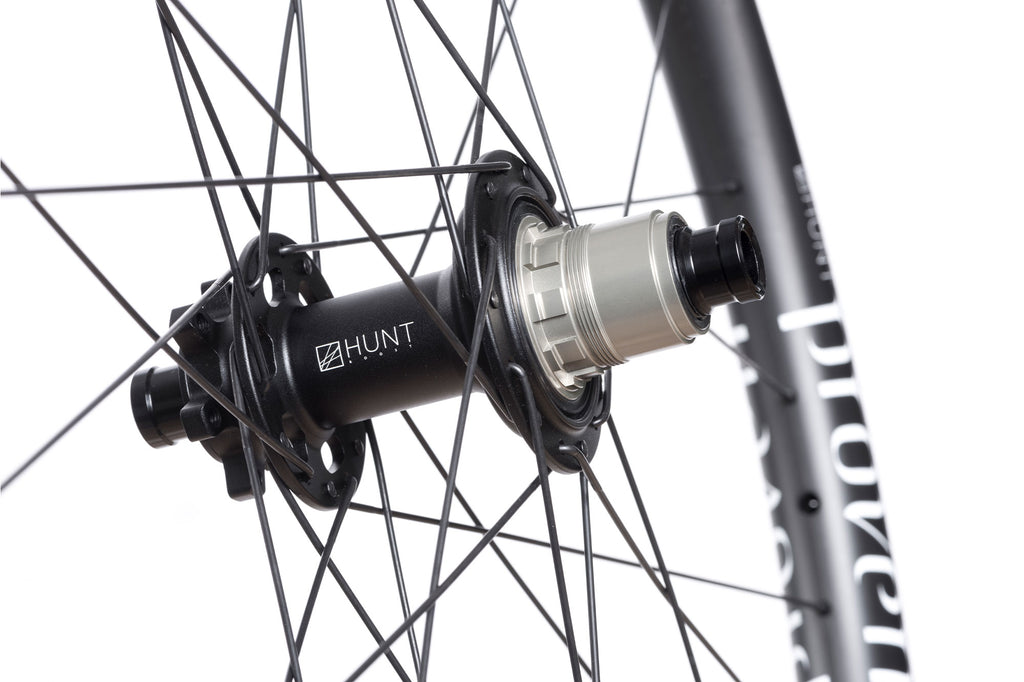

Freehub

Designed for long distance durability and quick engagement while tackling technical climbs with a loaded bike. 6 multi-point pawls engage with the oversized 90-tooth ratchet ring to disperse the load while offering a near-instant 2-degree engagement angle. A CNC-machine 6-bolt disc brake mounting interface offers versatility for your most-remote adventures.

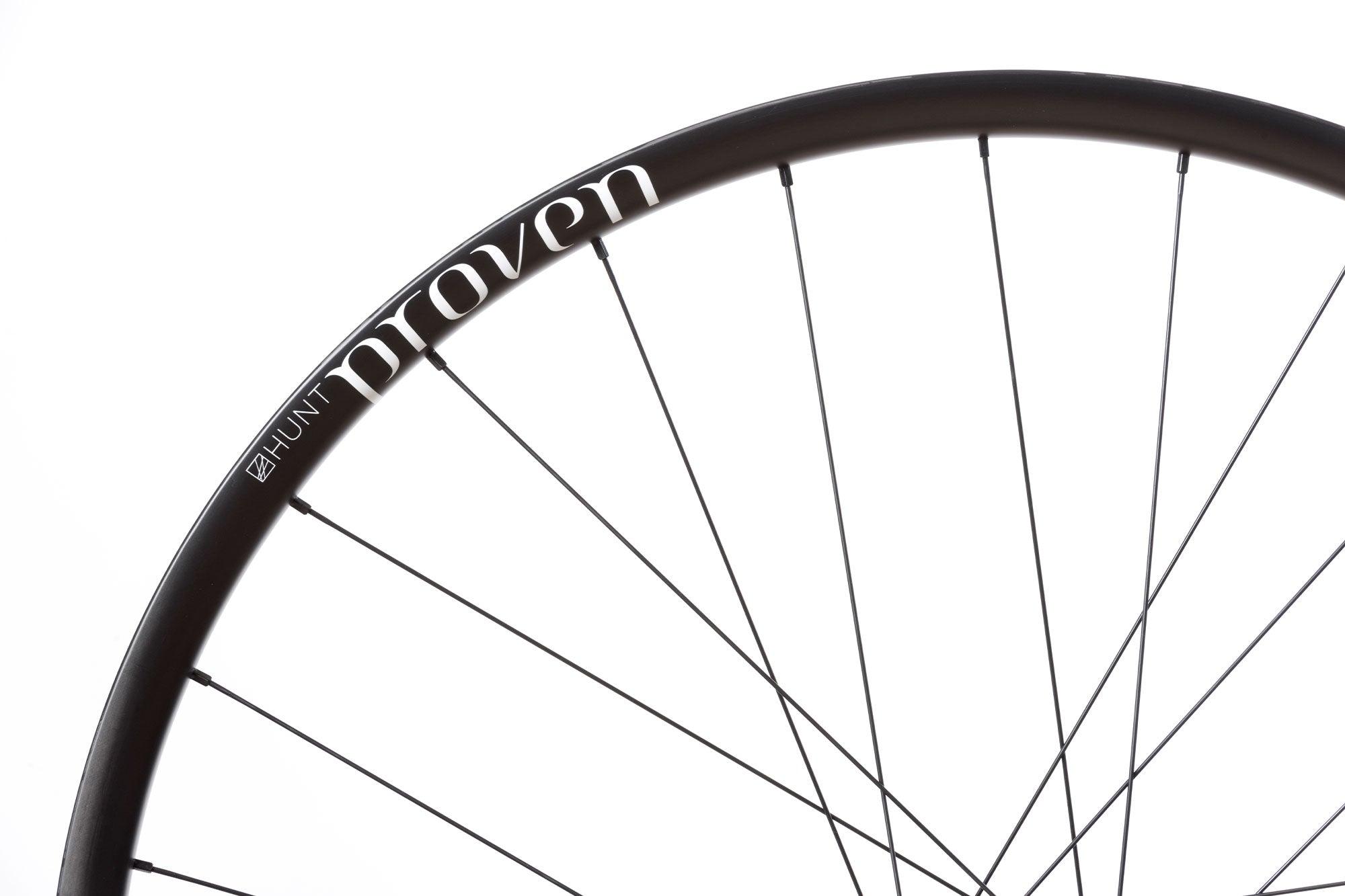

Spokes

We use 28 high-quality Sandvik stainless steel J-bend spokes in the building of our Proven XC Dynamo wheelset and lace them in a robust 3-cross pattern to maximise strength without adding unnecessary weight. Cold drawn and triple-butted (2.0-1.6-2.0), crafted from high-grade T302 stainless steel by Sandvik Sweden. This ensures a perfect balance of strength, weight savings, and comfort where it's needed.

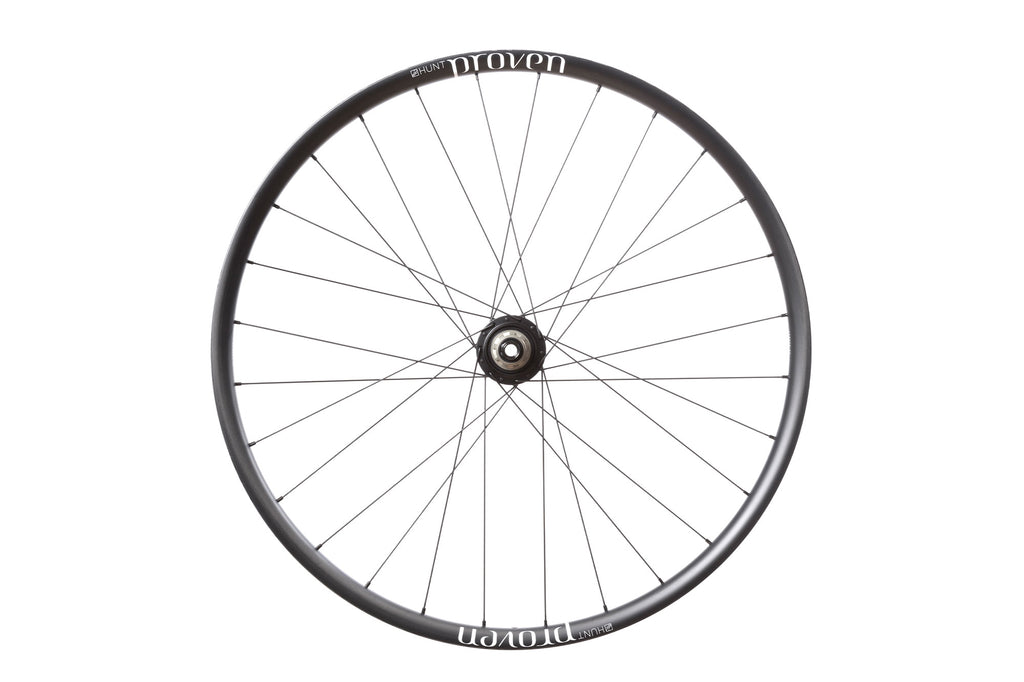

Nipples

We’ve chosen brass nipples for our wheel build because they offer unmatched longevity and durability, essential qualities for long-distance athletes. Brass nipples are highly resistant to corrosion and wear, ensuring they withstand the rigors of extended rides and diverse conditions.

Bearings

Double sealed stainless steel cartridge bearings offer smooth, reliable service with low friction. Proven XC Dynamo wheels are engineered to be used all year round, rain or shine, and so we've ensured both front and rear hubs are running on ultra-smooth, weather-resistant dual-contact lip- sealed bearings. The front SON dynamo hub benefits from energy-efficient SKF 626-2RSH deep groove ball bearings, while the rear hub utilizes ultra-low friction, double-sealed bearings for effortless rolling on any terrain.

What's in the box _

  • Black Shield PET high tensile strength tubeless tape fitted to wheels.
  • Freehub fitted
  • 35mm Tubeless Valves, with valve core removal tool and insert compatibility
  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

Our riders also bought_

WARRANTY_

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners when used with single crown forks. Read all about it here.

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. Max system weight 145 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 135 kg then an experienced bike mechanic should check the wheel regularly.
