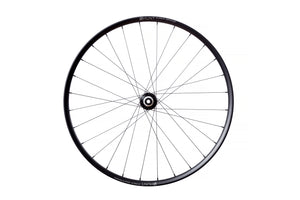

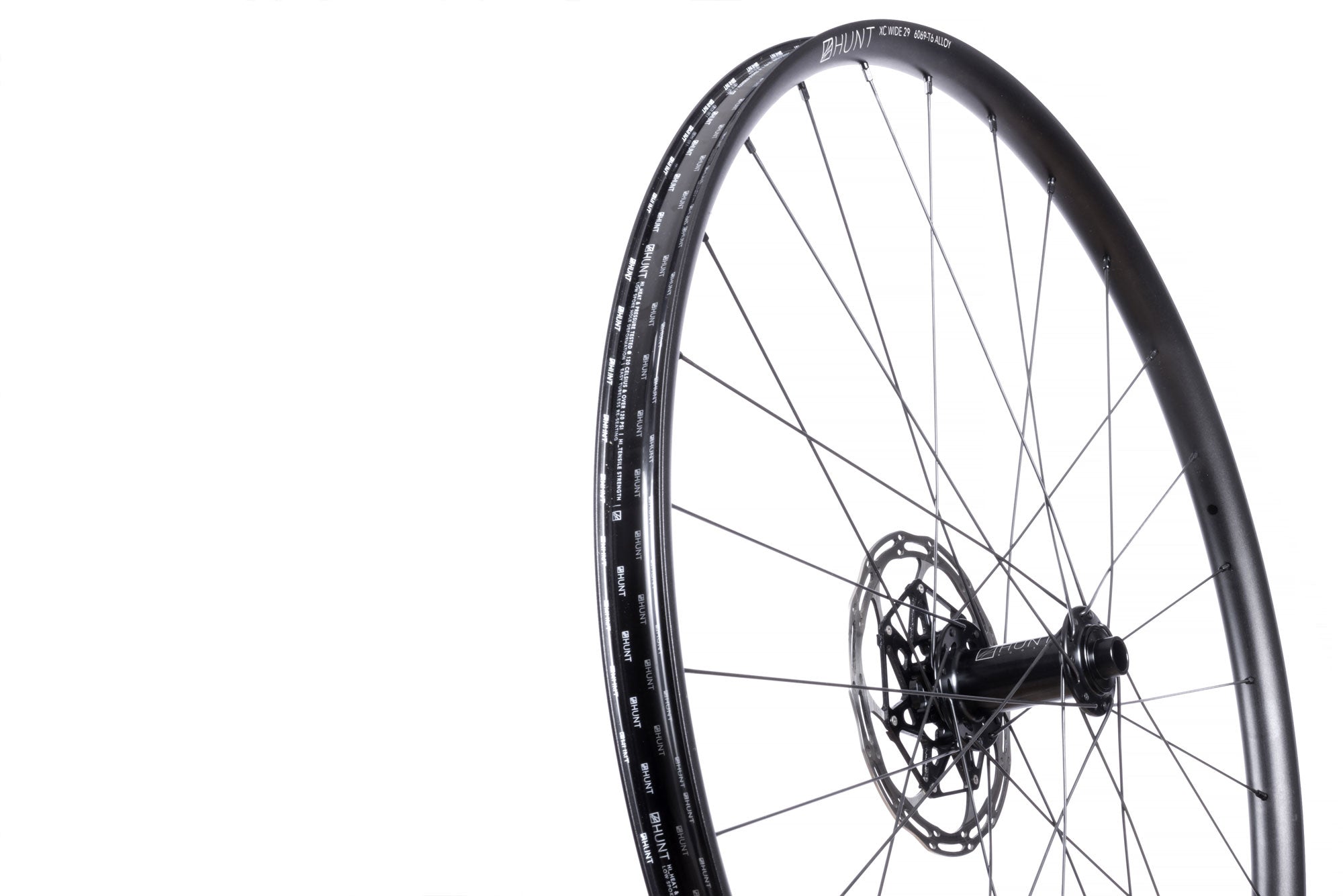

HUNT XC Wide MTB 29 Wheelset

1693g Width int size
F28 / R26 mm 29"

FEA developed alloy XC wheelset with front and rear specific rim profiles for maximum performance.

Wide 28mm front rim width matched to a 26mm rear rim width for unparalleled traction and braking performance. Hand-laced to HUNT XC wheels with triple-butted Pillar spokes.

Tyre size: Optimized for 2.2" to 2.4" tyres; work well with 2.0" up to 2.6" tyres.

Which freehub do I need?
£383.20 £479.00
20% off
Limited Stock. Available Now.
29" / Boost - Limited Stock
29" / Non-Boost - Limited StockItems are selected to ship from us in the week stated. Delivery time is 1 day*

We will ask for axle info after checkout.

Choose your finance options at checkout:

Order by 3pm for Next Day Delivery (if shown in stock). Allow 1-3 days for tyre-fitting.

Our wheels are in high demand, don't miss out.

More details Right

The Purpose _

<h1>Rim bed</h1><i>HUNT wheels are designed to be used as a tubeless system, featuring our state-of-the-art H-Lock rim bead with unique 'up-kicks' to secure your tyre when seated. H-Lock minimizes side-to-side movement, reducing the risk of burping your tyre and enhancing the overall performance of your ride. This system also creates a flawless rim-well seal for effortless installation and easy sealing of tubeless tyres.</i>

The Purpose _

Enhance your cross-country ride with our XC Wide wheelset, engineered in collaboration with our top athletes and FEA modelled then impact tested at HUNT UK Headquarters. Designed to tackle the roughest and most technical XC terrain, with our unique front and rear-specific rim widths and profiles, paired with our proven hub technology.

KEY FEATURES_

Rims

With front and rear-specific rim profiles (28mm front/26mm rear internal width), our XC Wide rims are engineered for unmatched performance. The work-hardened, shot-peened matte black finish increases overall strength and durability.

Hubs

The 5° RapidEngage freehub is coated with a durable H_CERAMIK for unbeatable strength. Designed to tackle seasons of cross-country challenges. Our hubs are customizable with our optional end caps to meet all standards. The CNC machined 6-bolt disc pattern offers versatility for your XC riding and racing needs.

Bearings

Precision-sealed replaceable cartridge bearings for seamless maintenance and longevity. Designed with large diameter ball bearings, engineered to withstand even the most rigorous conditions with dual full-contact rubber seals, ensuring maximum durability and reliability.

TECHNOLOGY _

The HUNT Engineering team uses our custom impact rig to test the XC Wide alongside leading competitors and our own wheelsets. The graph below shows the impact energy (J) recorded at the first sign of failure.

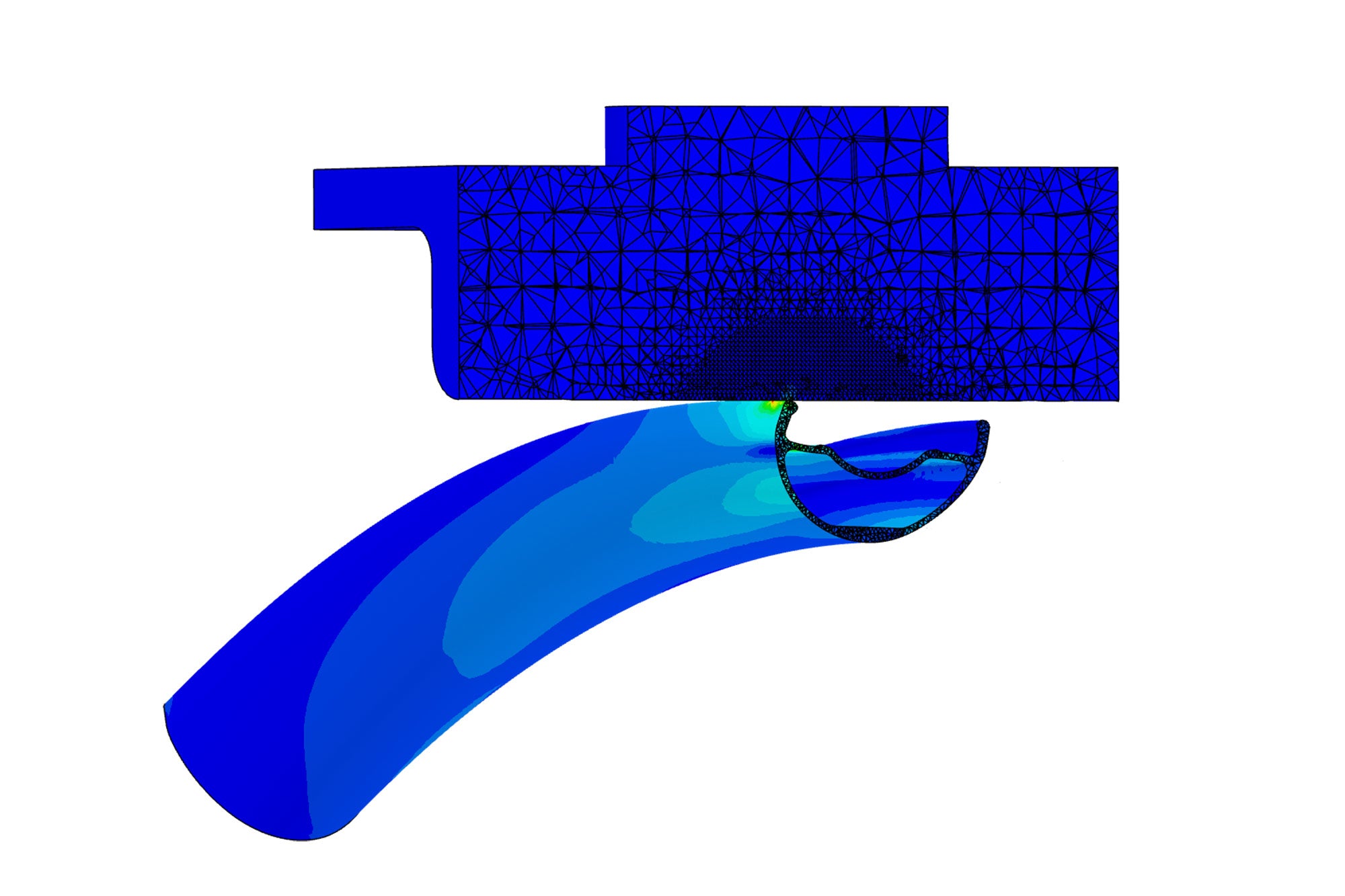

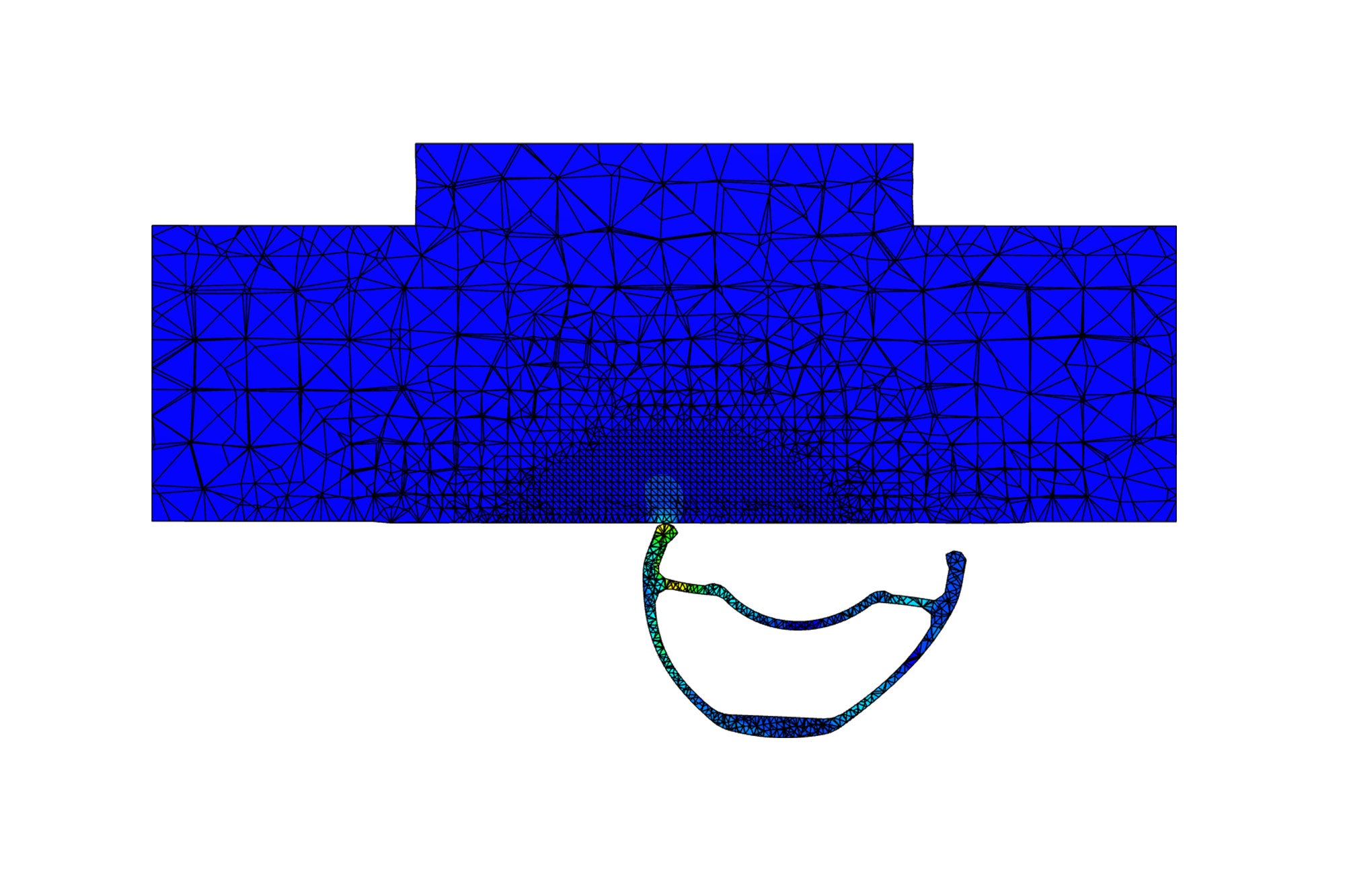

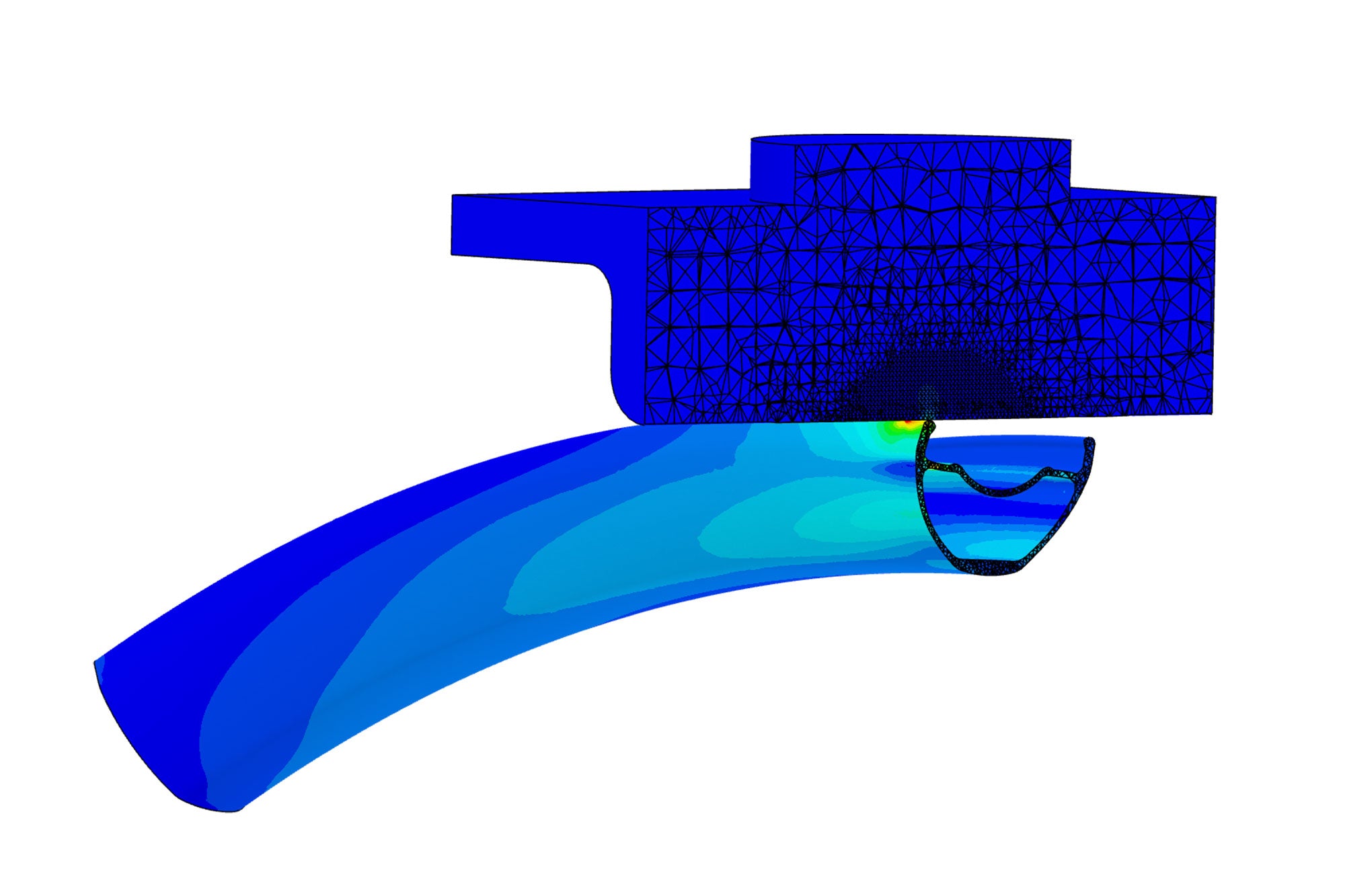

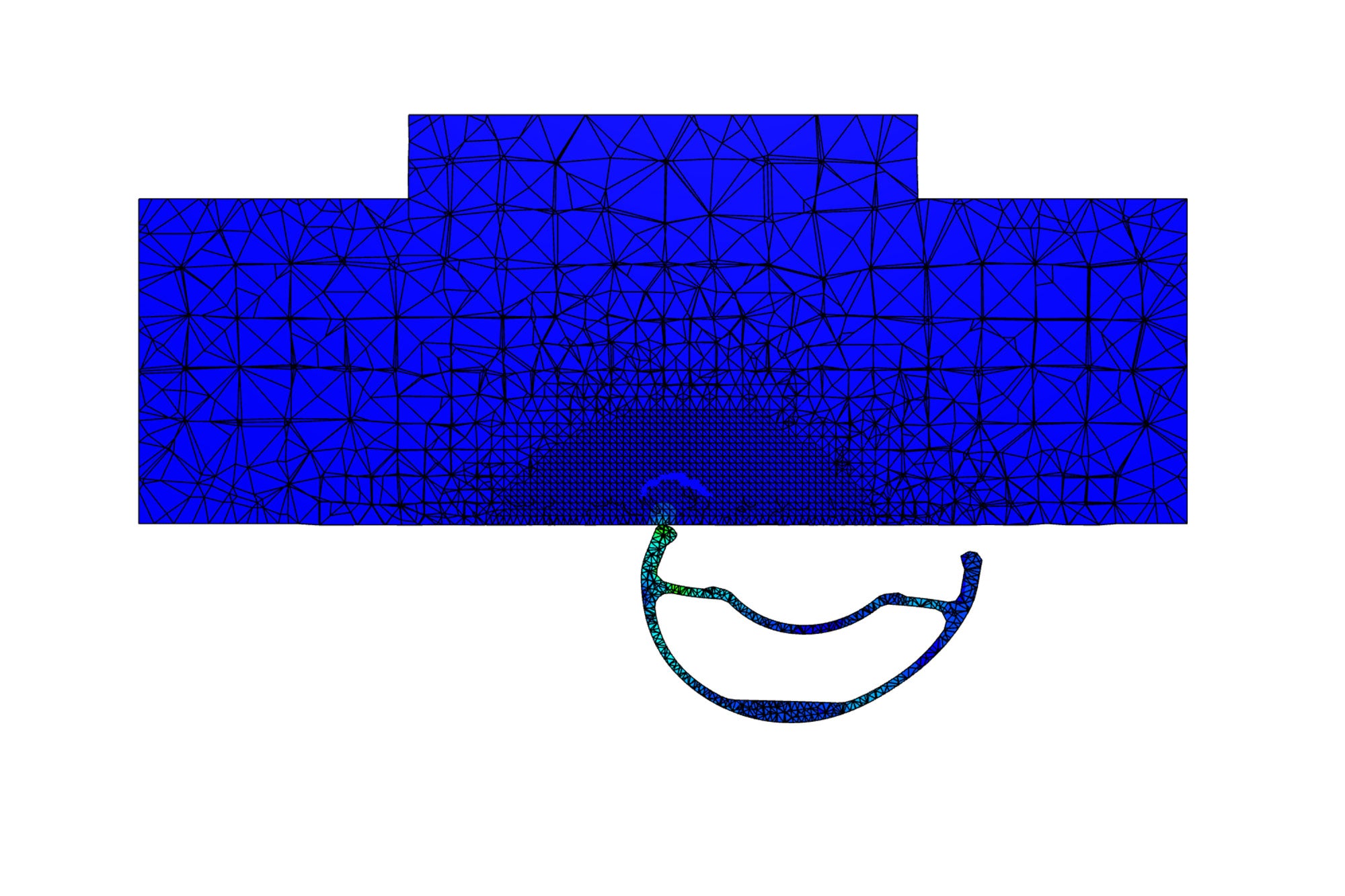

After approximately 300 hours of FEA modelling per rim, the HUNT team has created unique front and rear-specific rim profiles to achieve the ideal performance attributes for each wheel’s specific role.

<h1>FEA Modelling (Front Wheel)</h1><i>After approximately 300 hours of FEA modelling per rim, the HUNT team has created unique front and rear-specific rim profiles to achieve the ideal performance attributes for each wheel’s specific role.</i>
<h1>FEA Modelling (Rear Wheel)</h1><i>After approximately 300 hours of FEA modelling per rim, the HUNT team has created unique front and rear-specific rim profiles to achieve the ideal performance attributes for each wheel’s specific role.</i>
<h1>FEA Modelling (Front Wheel)</h1><i>After approximately 300 hours of FEA modelling per rim, the HUNT team has created unique front and rear-specific rim profiles to achieve the ideal performance attributes for each wheel’s specific role.</i>
<h1>FEA Modelling (Rear Wheel)</h1><i>After approximately 300 hours of FEA modelling per rim, the HUNT team has created unique front and rear-specific rim profiles to achieve the ideal performance attributes for each wheel’s specific role.</i>

Full Specs _

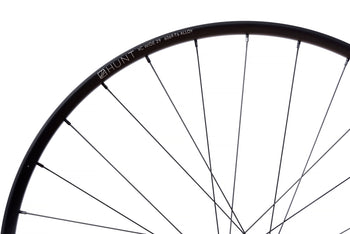

Rims
29" rim 28mm (F) / 26mm (R) internal width. 6069-T6 heat-treated alloy (+69% tensile strength vs 6061-T6) Tubeless-ready – designed to work best with tubeless tyres. Tubeless rim tape and valves included. H-lock bead-seat up-kicks for easy and secure tubeless installation. Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
  • 29" rim
  • 28mm (F) / 26mm (R) internal width.
  • 6069-T6 heat-treated alloy (+69% tensile strength vs 6061-T6)
  • Tubeless-ready – designed to work best with tubeless tyres. Tubeless rim tape and valves included.
  • H-lock bead-seat up-kicks for easy and secure tubeless installation.
  • Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
Spokes
J-bend cold drawn for ease of replacement. 28 F&R spoke count. Pillar Spokes made from Sandvik T302 (18/10) stainless steel. Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement). Black stainless treatment.
  • J-bend cold drawn for ease of replacement.
  • 28 F&R spoke count.
  • Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
  • Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
  • Black stainless treatment.
Nipples
Hard-anodized alloy for weight reduction and strength. Square body for external adjustment and hex head for easy internal adjustment/tensioning. Long 14mm thread for durability 14 gauge Black hard anodizing
  • Hard-anodized alloy for weight reduction and strength.
  • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
  • Long 14mm thread for durability
  • 14 gauge
  • Black hard anodizing

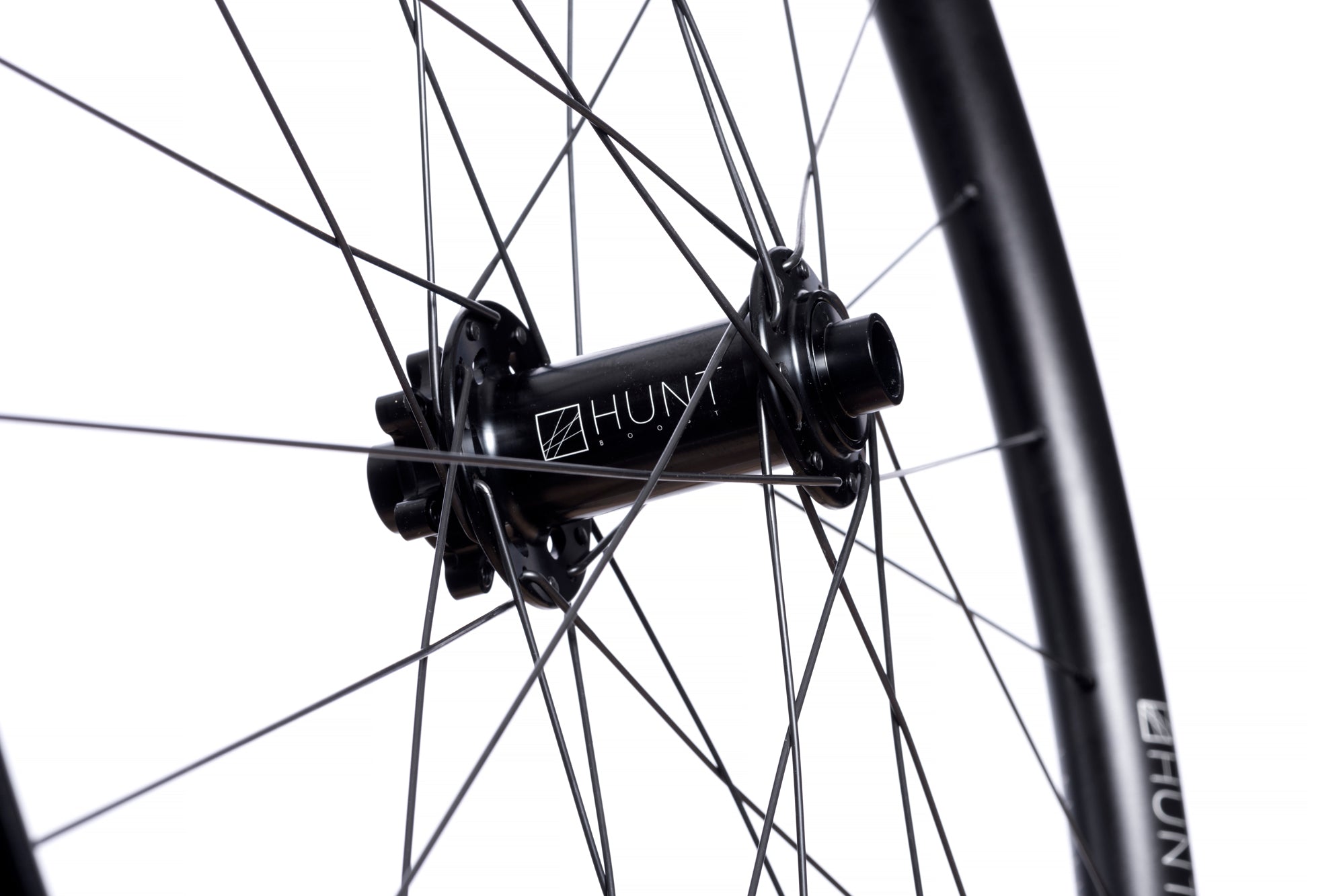

Front Hub
Asymmetric flanges for more balanced spoke tensions. Oversized axles. Extruded and CNC machined 6066-T6 heat-treated aluminium alloy body. 7075-T6 aluminium alloy axles. 6 bolt disc mount. Polished anodized black finish with laser graphics.
  • Asymmetric flanges for more balanced spoke tensions.
  • Oversized axles.
  • Extruded and CNC machined 6066-T6 heat-treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • 6 bolt disc mount.
  • Polished anodized black finish with laser graphics.
Rear Hub
Extruded and CNC machined 6066-T6 heat-treated aluminium alloy hub body. 148x12mm or 142x12mm spacing. H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. Boost QR skewers NOT supplied. 6 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees Oversized 7075-T6 heat treated aluminium axles. All freehub standards accounted for. 7075-T6 aluminium alloy axles. 6 bolt disc mount. Polished anodized black finish with laser graphics.
  • Extruded and CNC machined 6066-T6 heat-treated aluminium alloy hub body.
  • 148x12mm or 142x12mm spacing.
  • H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • Boost QR skewers NOT supplied.
  • 6 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
  • Oversized 7075-T6 heat treated aluminium axles.
  • All freehub standards accounted for.
  • 7075-T6 aluminium alloy axles.
  • 6 bolt disc mount.
  • Polished anodized black finish with laser graphics.
Bearings
Precision sealed cartridge replaceable units. Large diameter ball bearings for extra durability. Dual full-contact rubber seals.
  • Precision sealed cartridge replaceable units.
  • Large diameter ball bearings for extra durability.
  • Dual full-contact rubber seals.
Tyres Info
HUNT recommends a 2.2" to 2.4" tyre for best performance, tyre widths between 1.4" and 2.8" are also safe to use.   Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 2.2" to 2.4" tyre for best performance, tyre widths between 1.4" and 2.8" are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
Boost - 148x12mm (Rear) with 110x15mm or 110x12mm (Front). 141x9mm (Rear) QR with 110x9mm (Front) QR adapters and Rock Shox Torque Caps available - just add a comment in the notes section on the cart page. Standard - 142x12 (Rear) with 100x15mm or 100x12mm (Front). QR adapters available (Not compatible with Microspline) - just complete the simple form after checkout. Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
  • Boost - 148x12mm (Rear) with 110x15mm or 110x12mm (Front). 141x9mm (Rear) QR with 110x9mm (Front) QR adapters and Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
  • Standard - 142x12 (Rear) with 100x15mm or 100x12mm (Front). QR adapters available (Not compatible with Microspline) - just complete the simple form after checkout. Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.

HIGH SPECIFICATION COMPONENTS _

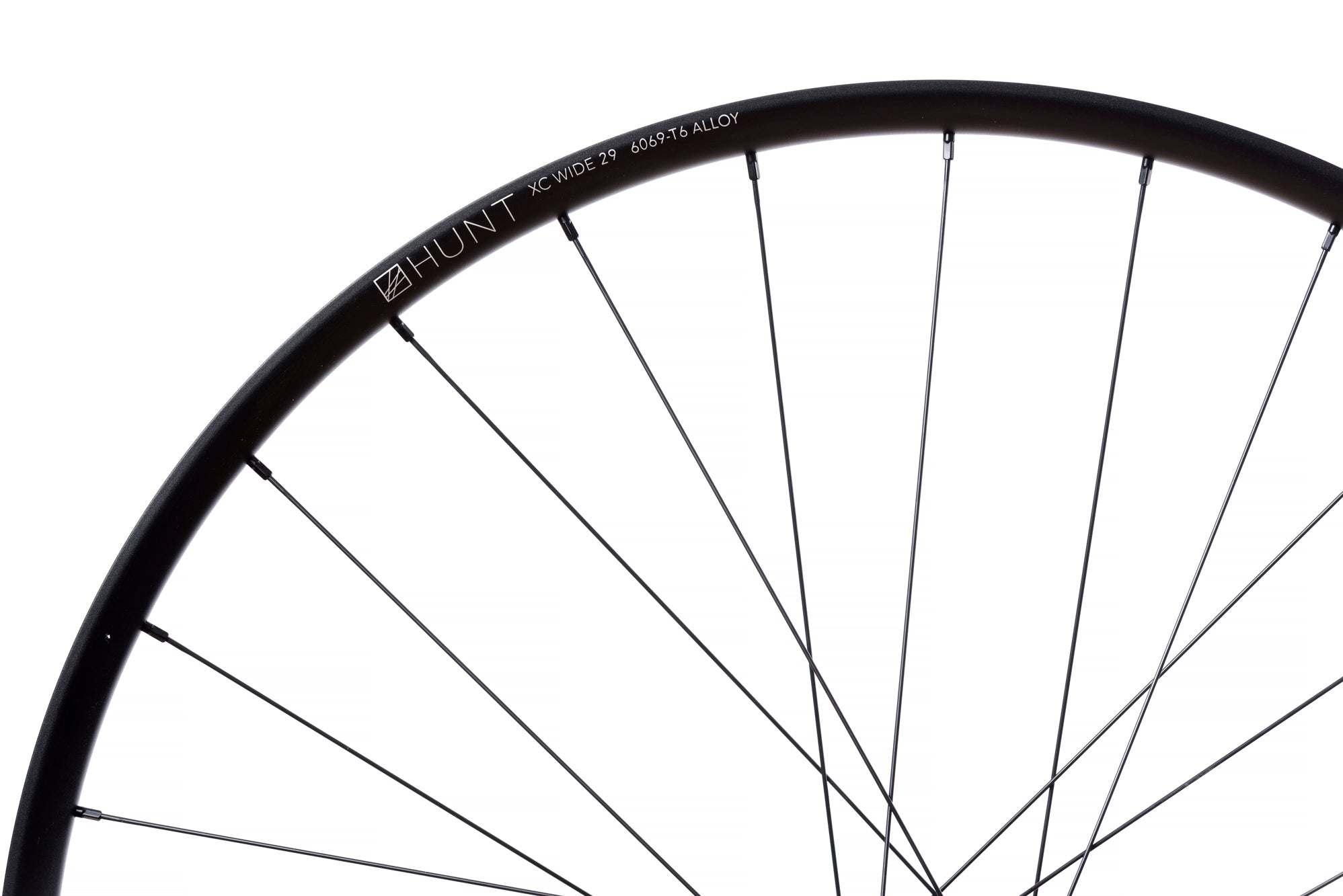

Rims

Highly impact resistant 6069 T6 rim construction boasting a wide 28mm internal front and 26mm internal rear for optimal performance on any terrain. FEA modelled and tested in the UK to ensure class-leading impact resistance while retaining a comfortable ride at a competitive weight.

Rim Bed

HUNT wheels are designed to be used as a tubeless system, featuring our state-of-the-art H-Lock rim bead with unique 'up-kicks' to secure your tyre when seated. H-Lock minimizes side-to-side movement, reducing the risk of burping your tyre and enhancing the overall performance of your ride. This system also creates a flawless rim-well seal for effortless installation and easy sealing of tubeless tyres.
SPOKES

We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.
Nipples

Hard-anodized 14 gauge alloy nipples offer a winning combination of lightweight design and unyielding strength. The large 14mm square body provides easy adjustability for maintenance and unbeatable durability.
Front Hub

Suited to match the needs of the modern trail bike rider. Featuring durable bearings and 7075-T6 series alloy axles to increase stiffness. These hubs have been selected based on their ability to perform on the most aggressive trails.

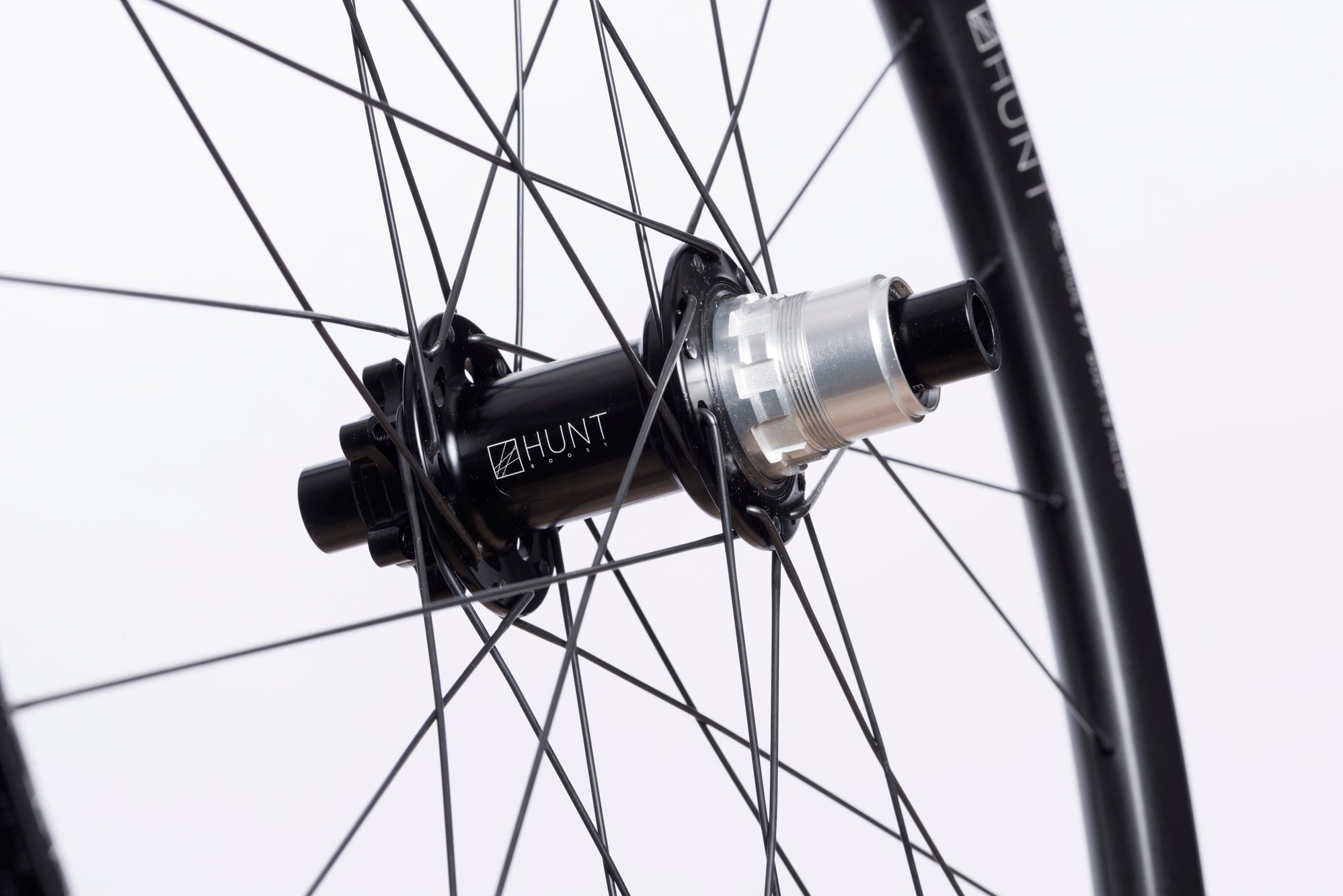

Freehub Body

Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we've developed the H_CERAMIK coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies.

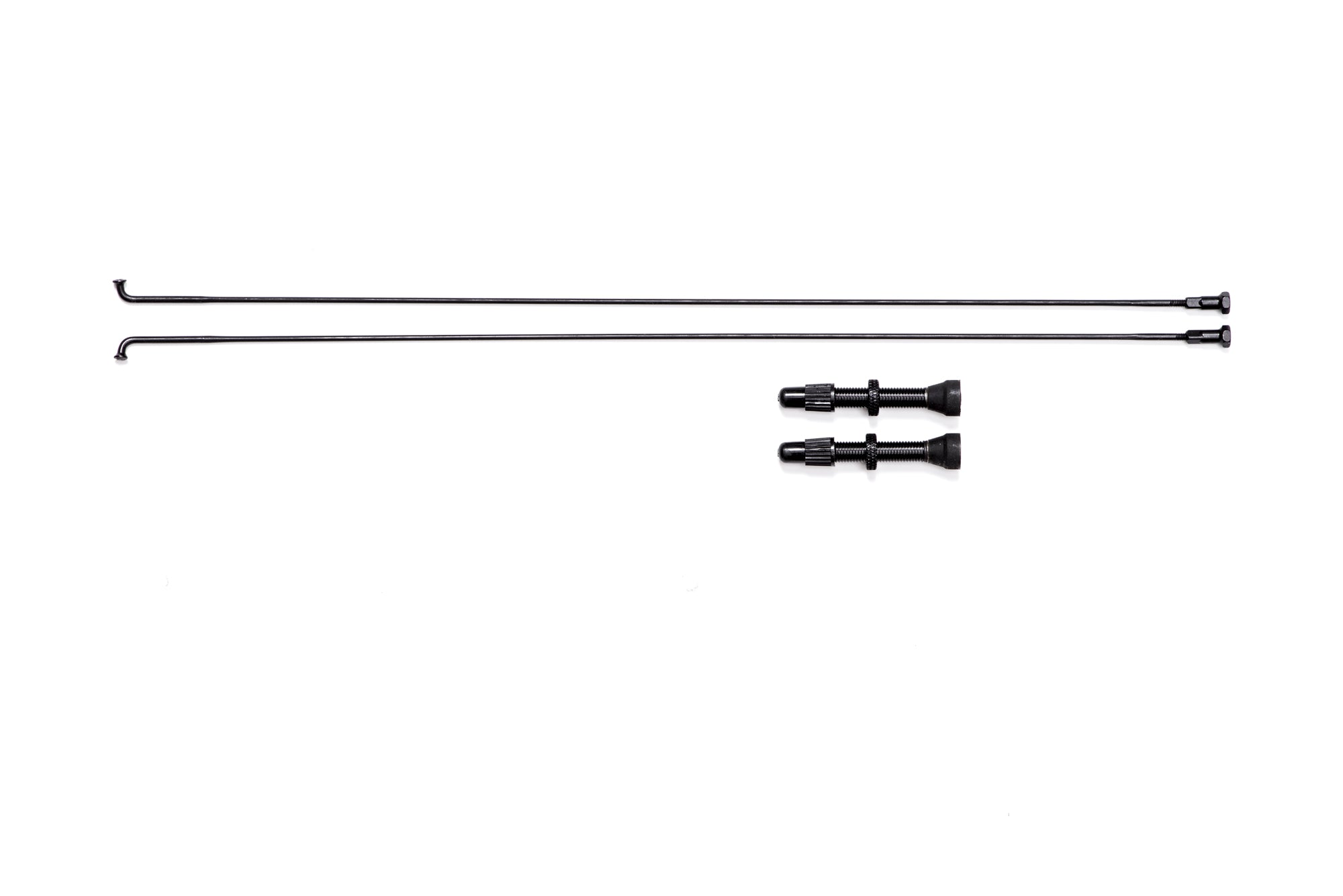

What's in the box _

  • Black Shield PET high tensile strength tubeless tape fitted to wheels.
  • Freehub fitted
  • 45mm Tubeless Valves
  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

<h1>In the Box</h1><ul><li>Black Shield PET high tensile strength tubeless tape fitted to wheels.</li><li>Freehub fitted</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. Max system weight 135 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 125 kg then an experienced bike mechanic should check the wheel regularly.
