RE:NEW HUNT 48 Limitless UD Carbon Spoke Disc Wheelset
RE:NEW HUNT 48 Limitless UD Carbon Spoke Disc Wheelset
RE:NEW HUNT 48 Limitless UD Carbon Spoke Disc Wheelset
<h1>Patented Limitless Technology</h1><i>In order to create the most aerodynamic & stable shape for a 28mm tyre, a rim bed of 22.5mm is needed. With the tyre profile this creates, the ideal shape of the rim curves out to an external width of 35mm. To achieve the optimal shape without the associated weight penalty, we use a (non-structural) low density expanding polymer insert, inside a channel carved out during the production process.</i>
<h1>Patented Limitless Technology</h1><i>This is bonded to the carbon during the curing process, resulting in a uniform and strong bond. The density of carbon is 1.6g per cubic centimetre, whereas the polymer insert weighs just 0.7g per cubic centimetre, resulting in a (rotational) mass loss of just over 50g per rim. This patented technology enables us to consider the limits of material properties, and smash right past them.</i>
<h1>CeramicSpeed Bearings</h1><i>You can spec your Limitless wheels with CeramicSpeed's industry-leading hybrid ceramic bearings. All CeramicSpeed ball bearings are Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. The quality of the balls determines the performance and lifetime of a bearing. The CeramicSpeed Balls feature unparalleled impact strength, smoothness, roundness and brittleness.</i>
<h1>UD Carbon Spokes</h1><i>TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness compared to steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke. Owing to the TaperLock technology, these spokes can be trued using a spoke key from inside the rim bed.</i>
<h1>Tyre Width Optimisation</h1><i>Our 48 Limitless road rims are optimised for a 28mm Schwalbe Pro One. Patented LIMITLESS technology allows for a 22.5mm rim bed and a huge 34.5mm external rim width, meaning the rim sits far wider than the tyre for aerodynamic efficiency.</i>
<h1>SLC Hubs</h1><i>Our SLC hubs are developed specifically for UD carbon spokes, and boast a high strength-to-weight ratio owing to their forged 7075 construction.</i>
<h1>Freehub Body</h1><i>Featuring 3x treble-tooth pawls and a 48 tooth ratchet ring, resulting in an impressively low 7.5-degree engagement angle. The Sprint freehub has strong individual pawl springs, which drive a consistent engagement. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage.</i>
<h1>UCI Approved</h1>
35% off
<h1>Patented Limitless Technology</h1><i>In order to create the most aerodynamic & stable shape for a 28mm tyre, a rim bed of 22.5mm is needed. With the tyre profile this creates, the ideal shape of the rim curves out to an external width of 35mm. To achieve the optimal shape without the associated weight penalty, we use a (non-structural) low density expanding polymer insert, inside a channel carved out during the production process.</i>
<h1>Patented Limitless Technology</h1><i>This is bonded to the carbon during the curing process, resulting in a uniform and strong bond. The density of carbon is 1.6g per cubic centimetre, whereas the polymer insert weighs just 0.7g per cubic centimetre, resulting in a (rotational) mass loss of just over 50g per rim. This patented technology enables us to consider the limits of material properties, and smash right past them.</i>
<h1>CeramicSpeed Bearings</h1><i>You can spec your Limitless wheels with CeramicSpeed's industry-leading hybrid ceramic bearings. All CeramicSpeed ball bearings are Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. The quality of the balls determines the performance and lifetime of a bearing. The CeramicSpeed Balls feature unparalleled impact strength, smoothness, roundness and brittleness.</i>
<h1>UD Carbon Spokes</h1><i>TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness compared to steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke. Owing to the TaperLock technology, these spokes can be trued using a spoke key from inside the rim bed.</i>
<h1>Tyre Width Optimisation</h1><i>Our 48 Limitless road rims are optimised for a 28mm Schwalbe Pro One. Patented LIMITLESS technology allows for a 22.5mm rim bed and a huge 34.5mm external rim width, meaning the rim sits far wider than the tyre for aerodynamic efficiency.</i>
<h1>SLC Hubs</h1><i>Our SLC hubs are developed specifically for UD carbon spokes, and boast a high strength-to-weight ratio owing to their forged 7075 construction.</i>
<h1>Freehub Body</h1><i>Featuring 3x treble-tooth pawls and a 48 tooth ratchet ring, resulting in an impressively low 7.5-degree engagement angle. The Sprint freehub has strong individual pawl springs, which drive a consistent engagement. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage.</i>
<h1>UCI Approved</h1>

RE:NEW HUNT 48 Limitless UD Carbon Spoke Disc Wheelset

After payment & checkout, we will ask for your freehub and axle information via an automatically generated form.

Which freehub do I need?
£1,069 £1,649.00
35% off
Wheels are scheduled to ship from us in the week stated. Delivery time is 1 day*
Finance options available at checkout

Order by 3pm for Next Day Delivery*
Our products are in high demand, don't miss out.

*If shown in stock.

More details Right

The combination of two flagship HUNT technologies, resulting in the ultimate riding experience.

48 DEEP | 35 WIDE EXT | 22.5 WIDE INT | 1511G | CeramicSpeed

The Purpose

The fastest sub-50mm rims in the world, paired with our UD Carbon Spoke technology. The result is a wheelset offering complete, all-round performance across the board. Superior aerodynamic efficiency and crosswind stability, with added responsiveness and lower system weight.

Aerodynamicist Logo

The ultimate in aerodynamics. Designed specifically to meet the needs of the modern rider, at the speeds they ride at. We ride at a range of wind yaw angles far greater than previously considered, and so HUNT Limitless is able to deliver aerodynamic supremacy across a wide range of riding and at real-world speeds.

Hunt Carbon Spoke Logo

6% more laterally responsive than identical steel spoked wheels, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim. Please see the graph in the image gallery below.

SLC Hubs

HUNT Sprint SLC hubs add strength and enhance power transfer, meaning more of your power pushing you forwards. The hub shell is a cold-forged 7000 series alloy, offering a greater strength-to-weight ratio than extruded 6000 series alloys. Large 15mm diameter hub axles for sprinting and climbing responsiveness. Circular dropout interface steps ensure a secure fitment.

Aerodynamics: Steel vs. UD Carbon Spokes

We've wind tunnel tested our new 48 and 60 Limitless UD Carbon Spoke Disc wheelsets against our original steel spoke version, as well as their relevant competitive set. Compared to their steel spoke counterparts, both the 48 and 60 Limitless UD Carbon Spoke Disc wheelsets perform very similarly (within the margin of error for standardized wind tunnel testing), suggesting there is no material aerodynamic penalty associated with the bladed UD Carbon Spokes. To review all the wind tunnel data, we welcome riders to review the provided graphs below.

See Graphs + 48 Limitless UD vs competitors graph 48 Limitless vs 48 Limitless UD Graph, on Schwalbe Pro One 28mm tyres 48 Limitless vs 48 Limitless UD Graph, on Schwalbe Pro One 30mm tyres Read Less

The Purpose

The fastest sub-50mm rims in the world, paired with our UD Carbon Spoke technology. The result is a wheelset offering complete, all-round performance across the board. Superior aerodynamic efficiency and crosswind stability, with added responsiveness and lower system weight.

Aerodynamicist Logo

The ultimate in aerodynamics. Designed specifically to meet the needs of the modern rider, at the speeds they ride at. We ride at a range of wind yaw angles far greater than previously considered, and so HUNT Limitless is able to deliver aerodynamic supremacy across a wide range of riding and at real-world speeds.

Hunt Carbon Spoke Logo

6% more laterally responsive than identical steel spoked wheels, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim. Please see the graph in the image gallery below.

SLC Hubs

HUNT Sprint SLC hubs add strength and enhance power transfer, meaning more of your power pushing you forwards. The hub shell is a cold-forged 7000 series alloy, offering a greater strength-to-weight ratio than extruded 6000 series alloys. Large 15mm diameter hub axles for sprinting and climbing responsiveness. Circular dropout interface steps ensure a secure fitment.

Aerodynamics: Steel vs. UD Carbon Spokes

We've wind tunnel tested our new 48 and 60 Limitless UD Carbon Spoke Disc wheelsets against our original steel spoke version, as well as their relevant competitive set. Compared to their steel spoke counterparts, both the 48 and 60 Limitless UD Carbon Spoke Disc wheelsets perform very similarly (within the margin of error for standardized wind tunnel testing), suggesting there is no material aerodynamic penalty associated with the bladed UD Carbon Spokes. To review all the wind tunnel data, we welcome riders to review the provided graphs below.

See Graphs + 48 Limitless UD vs competitors graph 48 Limitless vs 48 Limitless UD Graph, on Schwalbe Pro One 28mm tyres 48 Limitless vs 48 Limitless UD Graph, on Schwalbe Pro One 30mm tyres Read Less

Key Features

Patented HUNT Limitless technology combined with Taperlock UD Carbon Spokes to create the ultimate all-around performance wheelset.

  • LIMITLESS Rims | Wind tunnel developed, unidirectional T24/30 rims, offering 22.5mm internal and 35mm external widths, and a 48mm u-shape aero profile. Designed in-house by the HUNT engineering team. Exclusive, patented technology.
  • Tyres | Aerodynamically optimised for 25-28c tyres. Tubeless-ready for lower weight and rolling resistance, featuring H_Lock technology for easy and secure tubeless.
  • Hubs | Sprint SLC straight-pull hubs, designed for carbon spokes. 15mm diameter 7075-T6 body and axle for supreme strength-to-weight. Circular dropout interface steps for added security in fitment. 3x treble-tooth pawls, resulting in rapid 7.5˚ engagement. Steel spline inserts to protect the cassette body.
  • CeramicSpeed Bearings | CeramicSpeed bearings are renowned for their low rolling resistance and unmatched durability, and are chosen by the top international athletes and teams around the world. EZO option also available.
  • Spokes | TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke.
  • Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
  • Weight | 1511g
  • See the full specs here

Please note: If you require a 6 bolt adaptor you can purchase separately here


Full Specs

  • Rims

    • Wind tunnel tested, aerodynamically optimised for 25-28c tyres
    • Disc-specific tubeless-ready profile
    • H-lock bead-seat up-kicks for easy and secure tubeless installation
    • 35mm outer and 22.5mm inner width
    • 48mm depth
    • Matt black base finished with matt white contrasting graphics.

  • Spokes

    • TaperLock nipples secure spokes head to the hub
    • 2.7g per spoke
    • 18 front (1 cross on rotor side, radial on drive side)
    • 20 rear (2 cross both sides)
    • No interlacing

  • Nipples

    • TaperLock nipples secure spoke head to the hub.
    • Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing.
    • Internal nipple for truing.
    • Black anodized finish.

  • Tyres Info

    • Fully compliant with new ETRTO tubeless road guidelines (yet to be released) for 23/25/28mm+ road tyres.
    • Hooked sidewall.
    • Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres.
    • Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
    • Please do not exceed the maximum pressure stated on your tyre.
    • Suitable for tyres from 23mm up to 50mm wide.

  • Axle Size

    • We fit the axles you need, just complete the simple form shown after checkout. All existing road/CX disc front axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12mm Bolt Thru
      • 9mm Bolt Thru (uncommon)
      • All axle adapters are also available separately.

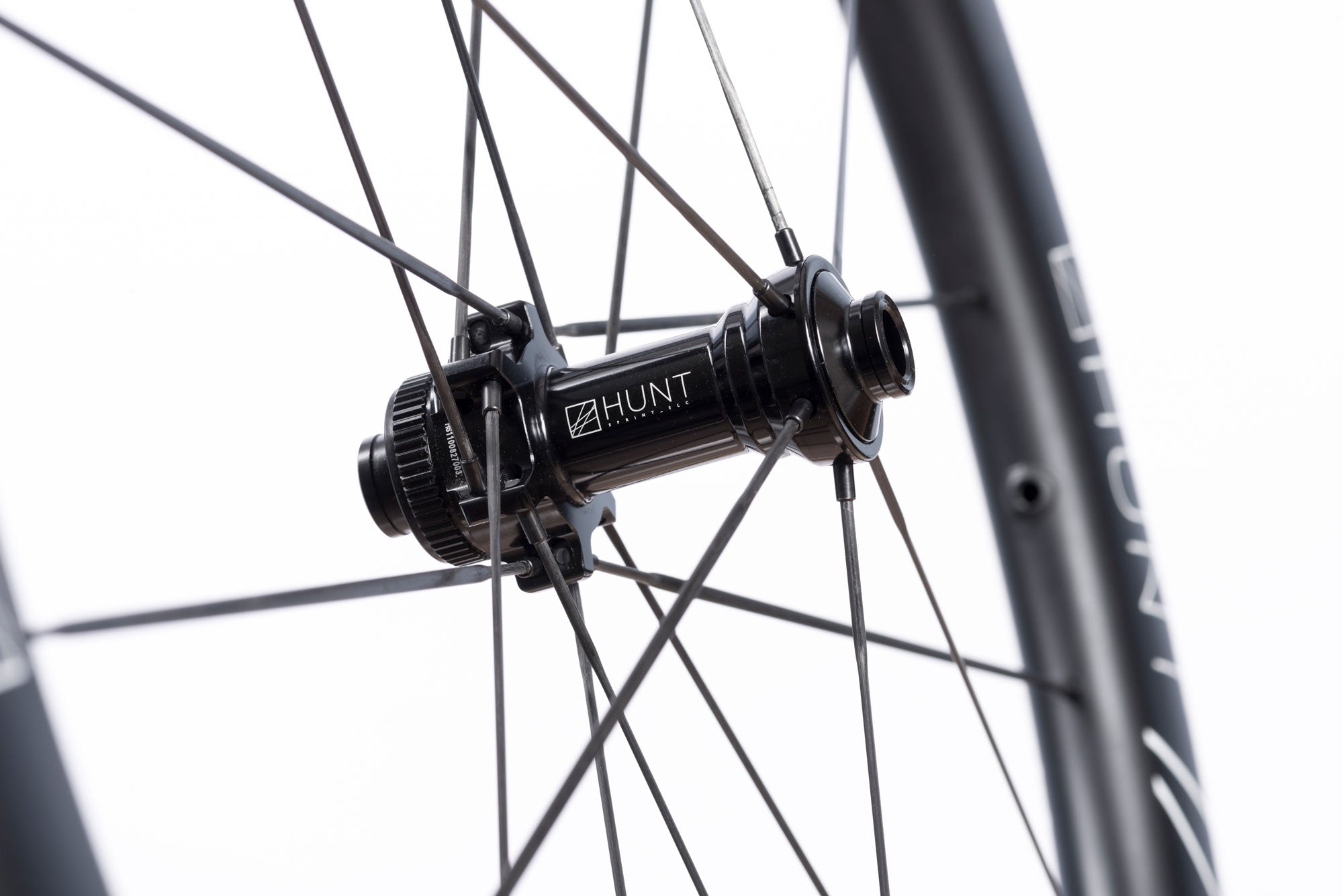

  • Front Hub

    • HUNT Sprint SLC straight-pull hubs.
    • Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
    • TaperLock spoke interface.
    • 7075-T6 aluminium alloy axles.
    • Polished anodized black finish with laser graphics.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

  • Rear Hub

    • We fit the axles you need, just complete the simple form shown after checkout.
    • All existing road/CX disc rear axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12x142 Bolt Thru
      • 12x135 Bolt Thru (uncommon)
      • 10x135 Bolt Thru (uncommon)
    • All axle adapters are also available separately.

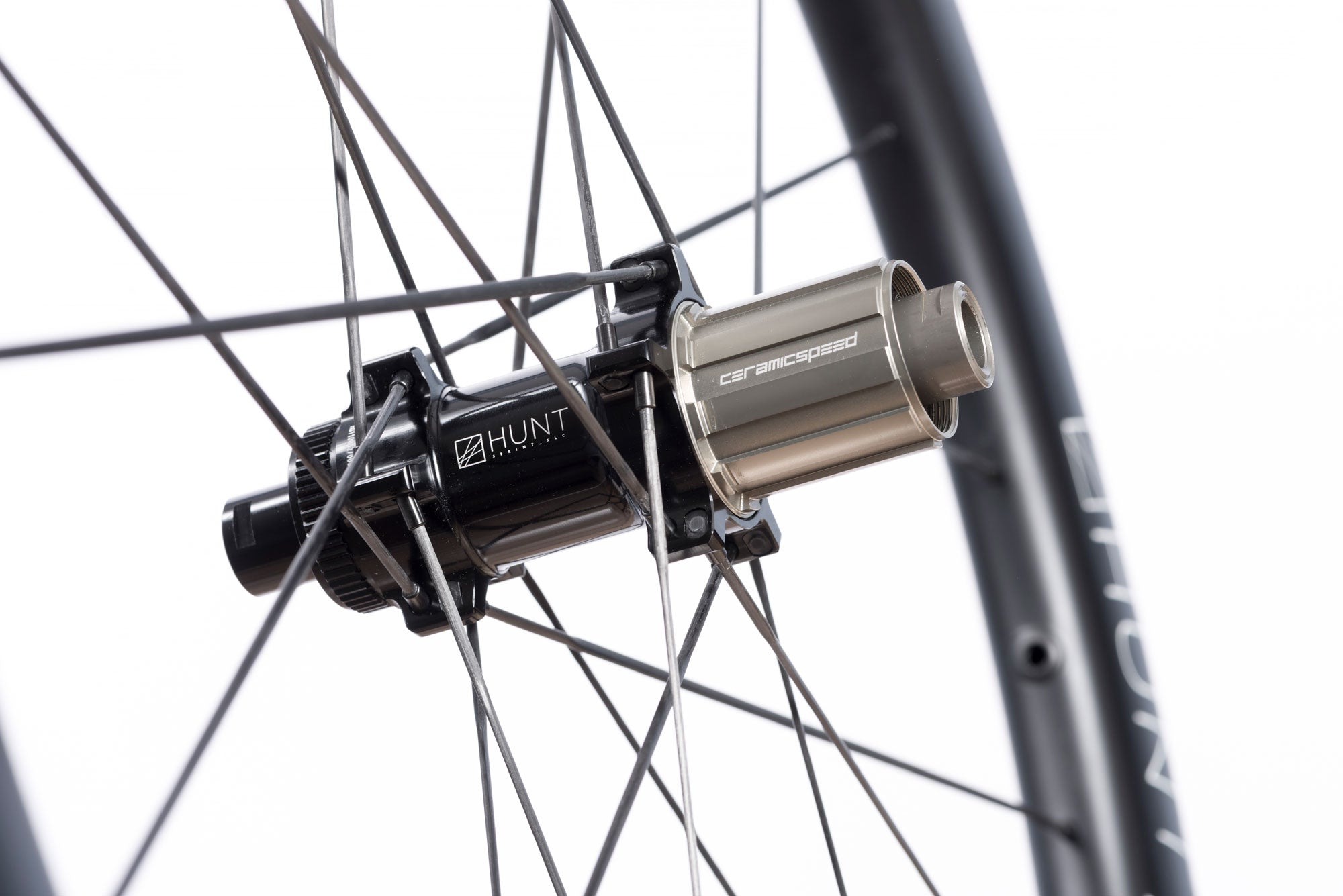

    • HUNT Sprint SLC straight-pull hubs.
    • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
    • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
    • All freehub standards accounted for, including:
      • Shimano/SRAM
      • Campagnolo
      • SRAM XD Driver
      • SRAM XDR Driver
    • 7075-T6 aluminium alloy axles.
    • Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
    • TaperLock spoke interface
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
    • Polished anodized black finish with laser graphics.

  • Bearings

    • Industry leading CeramicSpeed hybrid ceramic bearings
    • 3 to 5 times longer lasting than other ceramic bearings on the market and 10 times more than standard steel bearings.
    • CeramicSpeed bearing balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. 15% harder, take 99% higher loads and are more than 100% smoother than other ceramic balls typically seen in the market. The smoothness and the hardness of the CeramicSpeed Balls are unique.
    • 6 year warranty

    • Warranty, HUNT Rolling Road Tests & Weight Limits

    A full 3 years (6 years on CeramicSpeed bearings) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

    All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 120kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 105Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

    60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not.
